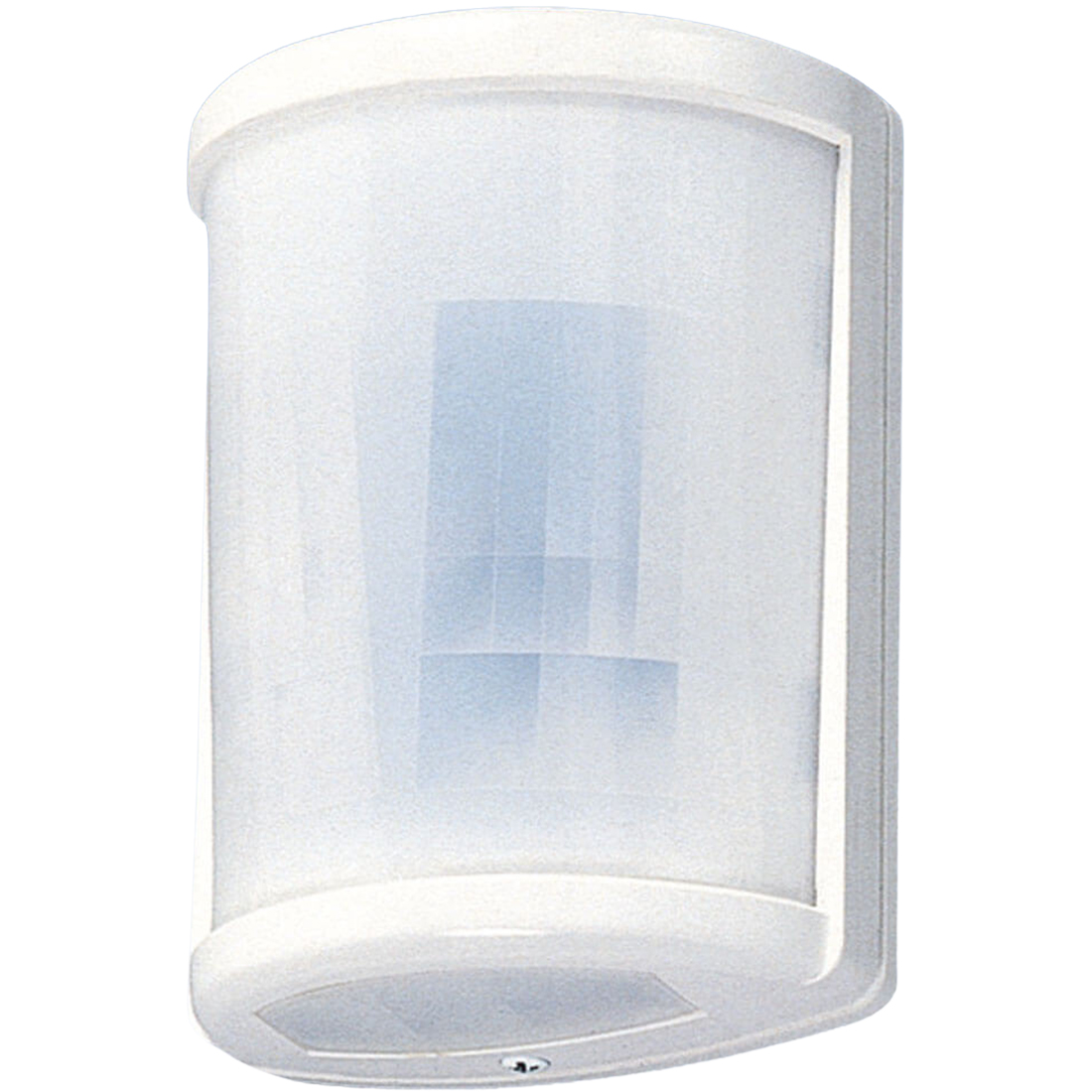

PA-470L TAKEX Passive IR Sensor 53' Wide Angle & 66' Long Range, Interchange Lens, Quad Element

NEW GENERATION WALL MOUNT PASSIVE INFRARED SENSOR

QUAD ELEMENT+ NEW FUZZY LOGIC PROCESSING SYSTEM

"Fuzzy Logic" is the state-of-the-art processing system that simulates the human decision process as it compares various information such as size, temperature differential, etc. to determine the criteria for an alarm condition. This reduces false alarm while maintaining a high detection capability.

PATTERN SELECTABLE WITH INTERCHANGEABLE LENS

Wide angle / long range pattern is selectable during installation by convenient fresnel lens replacement. Spare long range lens is included in package. Zone changeover switch sets the detection pattern to match the lens pattern when lens is changed.

TROUBLE ALARM -LOW VOLTAGE

When sensor detects a drop in supply voltage, the alarm relay and LED latches in alarm until voltage is restored to its proper level.

ALARM MEMORY

Units contain special circuitry to indicate that an alarm has been activated during armed period. Especially useful when more than one unit is used per zone.

REMOTE LED CONTROL

Enables/disables the LED via the control panel.
*Alarm LED selectable (ON/OFF)
*Alarm contact selectable (N.C./N.O.)
*Sensitivity adjustment (60%,80%,100%,120%)
*Zone changeover (Wide angle/long range)
*Anti-creep zone

Specifications

• Detection system - Passive infrared
  (Quad element + Fuzzy logc)
• Coverage - Wide angle: 53' Max (16m)
  Long range: 66' Max (20m)
• Sensitive zone - Wide angle: 22 pairs (88 zones)
  Long range: 2 pairs (8 zones)
• Supply voltage - 9 to 18 V DC (non-polarity)
• Current consumption - 28mA Max
• Alarm output - Dry contact relay (N.C./N.O. selectable)
  Reset: approx. 2sec.
  30V・0.25A Max
  (protective resistance 3.3Ω built-in)
• Trouble output - Low power voltage: monitors drop in power voltage
  Operate: initiate trouble alarm
• Tamper output - Dry contact (N.C.) Open when cover is detached
  30V・0.1A Max
• LED indicator - Red LED
  Warm up: flickering (every 0.5 sec.)
  Alarm: solid (approx. 2 sec.)
  Memory: continuous solid
  Trouble alarm: continuous solid (LED disable)
• Mounting position - Indoor wall / pillar
• Wiring - Terminals
• Weight - 165g (5.8oz)
• Accessory - Fixing screw: 4 × 30 2pcs. Long range lens
• Ambient temperature - -10°C to +50°C (+14°F to +122°F) without condensation
