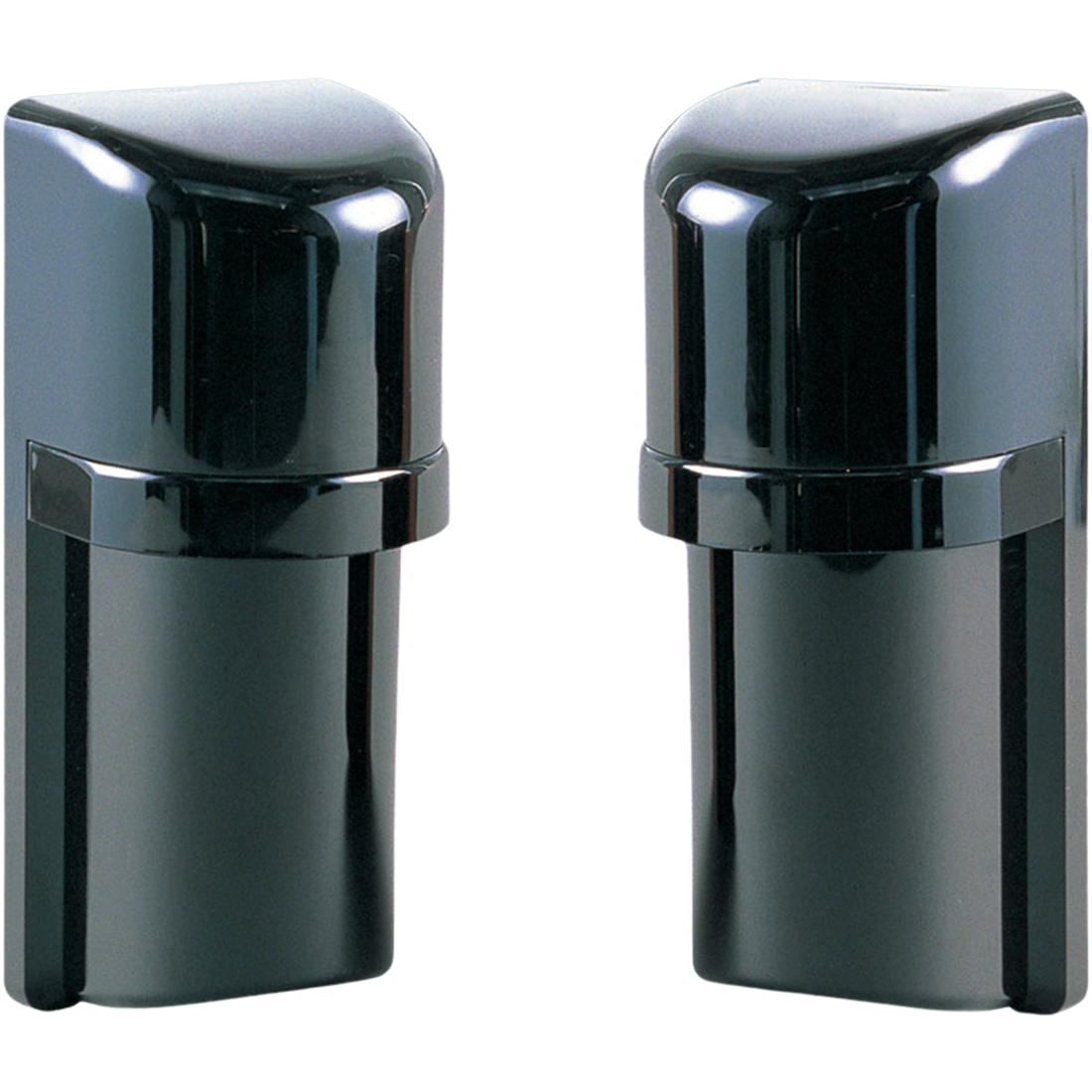

PB-60TE TAKEX 200' / 400' Intelligent Double Modulated Dual Beam, N/O N/C Relay, 10 to 30VDC

PHOTOELECTRIC BEAM SENSOR

The TAKEX intelligent “TWIN” photoelectric beam is designed to meet the highest standards of quality and reliability for photoelectric beam intrusion detection. Unique twin beams are synchronized to work together to reinforce the range and stability in severe weather conditions. The “intelligence” comes from having 4 different selectable frequencies which allow the stacking of beam sets to create a “Wall of Light”. The system has a rotary optical system for easy installation and the special lens design aids in proper alignment.

SELECTABLE FREQUENCY

Includes 4 separate selectable frequencies which can stack up without crosstalk for high security applications.

HIGH RELIABILITY

Synchronized twin beams reduce false alarms caused by flying birds and falling leaves.
The outdoor maximum arrival distance is 10 times longer than the operating distance, which allows for reliable operation in poor weather conditions.

EXTERNAL LIGHT PROTECTION

Trouble-free condition in 50,000 lux illumination fluctuation is assured by external light compen- sation circuit a filter, specially designed, that cuts visible rays effectively. Excellent tolerance against sun light, automobile head light, fluores- cent light or mercury light.

EASY BEAM ALIGNMENT

The special view finder allows for fast aiming and assures good alignment. Equipped with monitor jack to check sensitivity.

ROTARY OPTICAL SYSTEM

The optical system of both the transmitter and receiver can be rotated a full 180° which allows for side aiming.
Therefore the units do not have to be mounted face to face and the beam direction can not be discerned by simple observation.

INSECT PROTECTION

A sealed optical system prevents intrusion and interference by insects.

OTHER FEATURES

＊Automatic Gain Control circuit loaded
＊Wide adjustment (horizontally± 90°, vertically± 10°)
＊Pole mounting kit included

PROTECTION AGAINST FROST/DEW

As a special hood is attached on sensor cover, beam protection continues without interruption even when the cover is screened by frost or dew.

Specifications

• Type - Twin Beam
• Detection system - Simultaneous breaking of 2 beams
• Infrared beam - LED pulsed beam Double modulation
• Detection distance - Outdoor 200' (60m) or less
  Indoor 400' (120m) or less
• Max. arrival distance - Outdoor 2000' (600m)
  Indoor 2000' (600m)
• Response time - 50msec. to 700msec. (Variable at pot)
• Frequency Selection - 4 Channels
• Supply voltage - 12V to 30VDC (Non-polarity)
• Current consumption - 80mA or less
• Alarm output - Dry contact relay output form C
  Contact action: Interruption time + delay time (1 to 3sec.)
  Contact capacity: 30V (AC/DC) 0.5A or less
• Tamper output - Dry contact relay 1b (N/C)
  Action: Activated when cover is detached
  Contact capacity: 30V (AC/DC) 0.5A or less
• LED indicator - Red LED (Receiver)
  ON : when an alarm is initiated.
  ON : when beam is attenuated.
• Functions - Beam frequency changeover (4ch.), Monitor jack output, AGC circuit, Frost proof cover
• Mounting position - Indoor / Outdoor
• Wiring - Terminals
• Weight - Transmitter: 13.3oz (380g)
  Receiver: 14oz (400g)
• Appearance - PC resin (wine red)
• Ambient temperature - -13°F to +140°F (-25°C to +60°C)
• IP Rating - IP54
