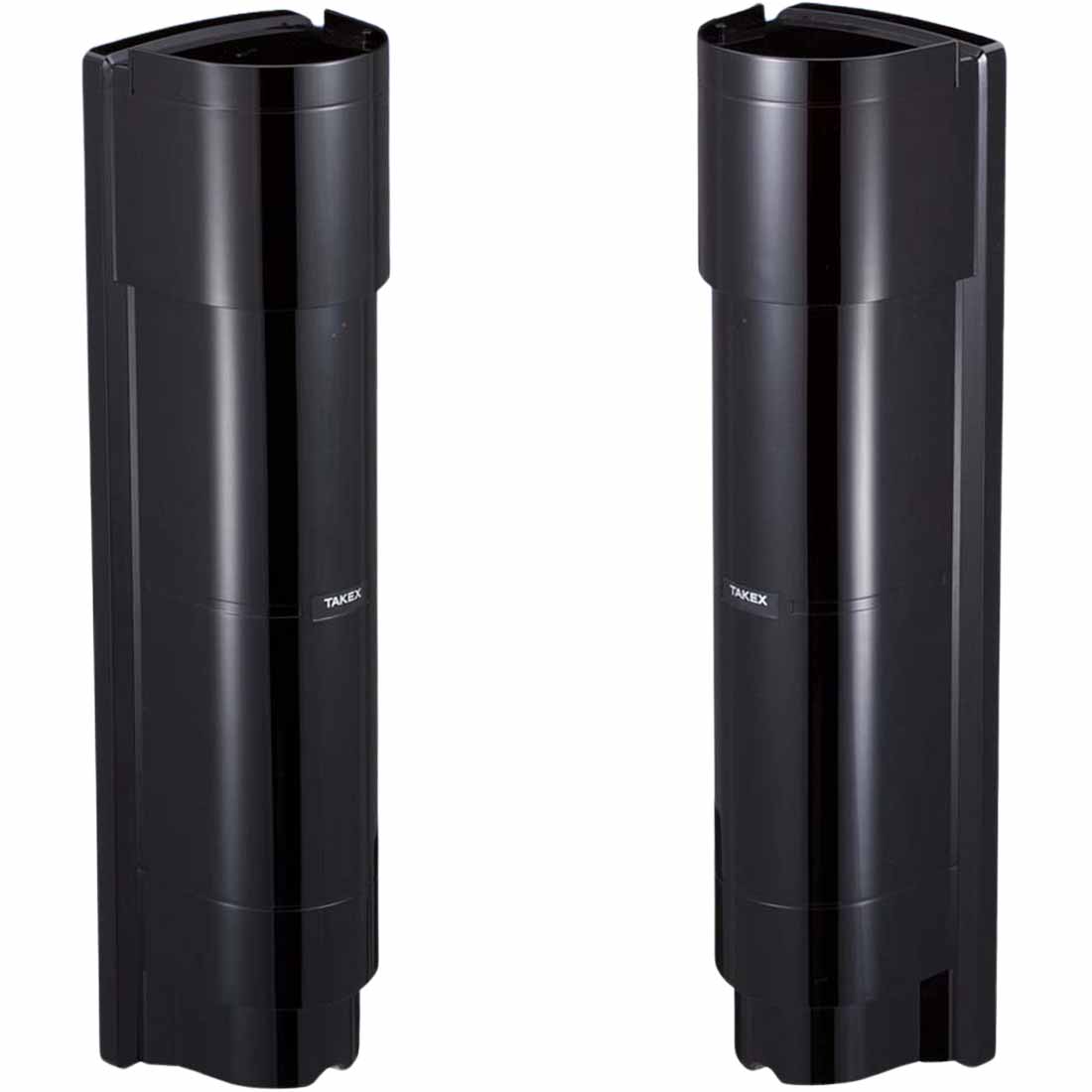

PXB-200HF TAKEX 660' /1320' Intelligent Double Modulated Quad Beam,Selectable Relay Output N/O N/C Relay, 12 to 30VDC

High Performance with Reliability and Stability

DOUBLE MODULATION

Double modulated beams are designed to distinguish the external lights. It increases the reliability in the outdoor security system. (50,000 lux light immunity)

WIDE BEAM

The pitch between upper and lower beam is wider than previous models; drastically reducing False alarms initiated by birds and falling leaves.

ANTI-BIRD SPIKE

Keeps birds and small animals from roosting on the sensor, maintaining a clear detection path for increased reliability

QUAD HIGH POWER BEAM

The beam power is 100 times of the minimum requirement. The beam distance is 10 times of the described specification. This high power beam maintains the ability to operate reliably in inclement weather.

IP65 HIGHEST RATING IN THE INDUSTRY

Water tight bushings and seals maintain device integrity from water, insects, and dust; further inclusion of a breathable membrane prevents internal condensation from affecting performance.

DRIP-PROOF HOUSING

Channels the elements (rain and snow melt) away from the optical surfaces of the sensor, avoiding false alarms caused by beam attenuation.

Enhanced features for faster and simpler Installations

ADVANCED RETICLE SIGHTING SYSTEM

Enables a faster and easier alignment process.

TARGET COLOR

Structure colors are tuned to the Peak Wavelengths of the Human Eye Response (Photopic eye response), to be easily targeted in the beam alignment process.

INCREASED VERTICAL ANGLE ADJUSTMENT
The horizontal is still ±90°

±20° Better accommodates alignment on uneven terrain, when compared to existing models (±10°).

BI-DIRECTIONAL WIRELESS ALIGNMENT CHECKER

One person can accomplish system alignment in a fraction of the time; for dramatic savings on labor costs. (sold separately)
Bi-Directional communication distance is max 200m.

Designed for environmental adjustment

LOW CURRENT CONSUMPTION

50% reduction in current consumption allows cost savings upfront (by reducing the required wire gauge on installation), and continues the savings for years to come with lower electrical consumption.

ECO-FRIENDLY

RoHS certified compliant: free from Lead, Mercury, Cadmium, Hexavalent Chromium, Polybrominated biphenyl, and Polybrominated biphenyl ether.

LIGHTENING PROTECTION

Maximum Lightening induced surge protection to 10,000VDC (normal mode) and 15,000VDC (common mode).

Specifications

• Type - Quad Beam
• Detection system - Near infrared pulsed beam interruption system (TR-RE 4 beam simultaneous interruption)
• Infrared beam - Double modulation pulsed beam by LED
• Detection distance - Outdoor 660' (200m) or less
• Max. arrival distance - 6600' (2000m)
• Response time - 0.05sec. to 0.7sec. (Variable at pot)
• Frequency Selection - 4 Channels
• Supply voltage - 12 to 30V DC (Non-polarity)
• Current consumption - 34mA or less
• Alarm output - Dry contact relay output form C
  Contact action: Interruption time (Min.2sec.)
  Contact capacity: 30V (AC/DC) 0.25A (resistive load)
  Protective resistor
• Environmental output - Dry contact relay output form C
  Action: Activated when weather condition gets worse
  Contact capacity: 30V (AC/DC) 0.25A (resistive load)
  Protective resistor
• Tamper output - Dry contact relay (N.C.)
  Action: Activated when cover is detached
  Contact capacity: 30V (AC/DC) 0.1A (resistive load)
  Protective resistor
• LED indicator - Red LED (Receiver)
  ON : when an alarm is initiated (Alarm LED)
  ON : when beam is attenuated (Attenuation LED)
• Functions - Modulated beam frequency selection, Tone indicator, Environmental module, Beam power selection, Transmitting power adjutment, Alarm memory indication, Programmed AGC, Auto-gain lock function, Monitor jack, Tamper, Response time adjustment, Upper / Lower beam switch, Wireless Alignment Checker connecting function
• Adjustment - Horizontal : ±90°, Vertical : ± 20°
• Mounting position - Outdoor / indoor
  IP65
• Wiring - Terminals
• Weight - Transmitter: 49oz (1400g)
  Receiver: 51.5oz (1470g)
• Appearance - PC resin (wine red)
• Accessory - Pole attachment, Anti-Bird spike, Fixing screws, Instruction manual
• Ambient temperature - -31°F to +151°F (-35°C to +66°C)
• IP Rating - IP65
