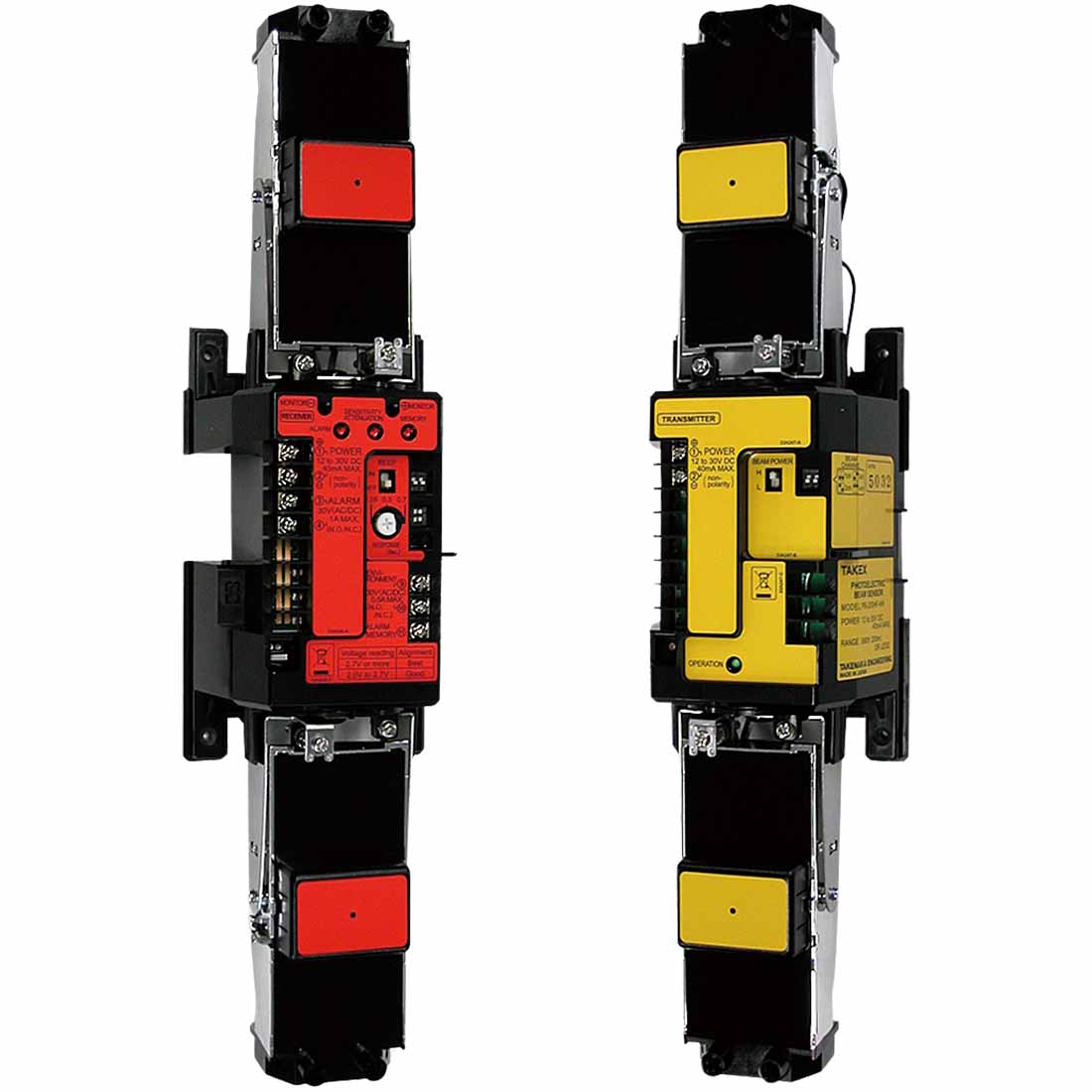

PB-100AT-KH TAKEX Indoor/Outdoor Dual Synchro-Twin Beams to detect crawling intrusion - 200M

There are currently no active sales or promotions related to this item.

SKU: PB-100AT-KH

Brand: Takex

PB-100AT-KH

Features

Dual Synchro-Twin Beams to detect crawling intrusion
Selectable 4-Channel Beam Frequencies
Double Modulated Beam for unsurpassed Light Immunity
Monitor Jack for alignment with Multi-Meter
Audible Alignment Tone
Environmental (anti-fog) Monitoring Circuit
Dynamic A.G.C. Circuit
Double coated electronics for corrosion protection
For use in TA Series Tower Enclosures

PB-100AT-KH Anti-Crawl Beams are available for high-security applications to detect low-level or crawling intrusion, designed specifically for use in TA Series Beam Towers.

KH Beams and TA Towers are the perfect combination for reliable perimeter intrusion detection in the most demanding of situations.

Requires TAKH ‘Quick-fix’ mounting brackets for fast, trouble-free installation; the beam units locate in vertical slide-channels in the TA tower spine, allowing easy and precise height adjustment.

More details...

There are currently no active sales or promotions related to this item.

MPN: PB-100AT-KH

MSRP Price: $765.00

Web Price: $765.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Type - Anti-crawl
Detection system - Near infrared beam interruption system (TR,-RE 4 beams simultaneous interruption or upper 2 beams interruption or lower 2 beams interruption)
Infrared beam - Double modulation pulsed beam by LED
Detection distance - Outdoor 330' (100m) or less
Max. arrival distance - Tenfold 3300' (1000m)
Frequency Selection - 4 Channels
Response time - Dual response time system 0.035-0.5sec. (AND gated)
0.1, 0.2, 0.3, 0.5sec. (OR gated)
Supply voltage - 10V to 30V DC (non-polarity)
Current consumption - 85mA or less at protection (Max. 120mA or less)
Alarm output - Dry contact relay 1c
Reset : Interruption time + off-delay (approx. 1.5 sec.)
Contact capacity : 30V AC / DC, 1A or less
Environmental output - Dry contact relay : 1c
Contact operation : Output when weather condition gets worse
Contact capacity : 30V AC / DC, 1A or less
LED indicator - Red LED (receiver) lights when an alarm is initiated
Red LED (receiver) lights when beam reception is attenuated
Functions - Modulated beam frequency selection, Tone indicator, Environmental module, Beam power selection, Beam selector, Programmed AGC. Auto-gain lock function, Monitor jack
Adjustment - Horizontal : ±90°, Vertical : ±10°
Mounting position - Inside TA series Beam Towers
Wiring - Terminals
Weight - Transmitter : 10.6 oz (300g)
Receiver : 14.1 oz (400g)
Appearance - ABS resin
Ambient temperature - -31°F to +151°F (-35℃ to +66℃)
IP Rating - N/A
