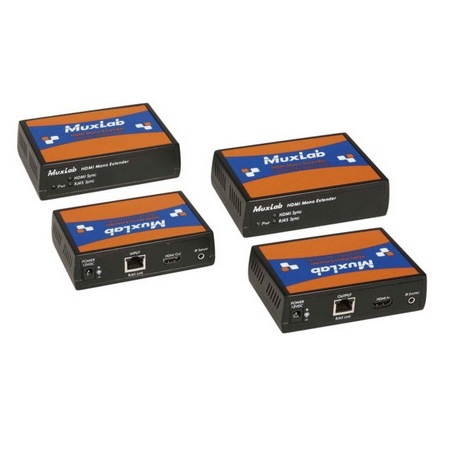

500450 Muxlab HDMI Mono Extender Kit

Specifications

• Environment - HDMI 1.3a, HDBaseT. (Supports the 3D feature of HDMI 1.4)
• Devices - DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI
• Transmission - Transparent to the user
• Bandwidth - 340 MHz
• Signals - HDMI 1.3a, HDBaseT
• Connectors - One (1) HDMI receptacle. One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair. 3.5mm jacks for IR emitter and IR Sensor HDMI cables not included.
• Max. Distance Based on a maximum length of 6.6 ft (2m) of HDMI cable per end - 480i/p: Cat 5e/6: 330 ft (100 m) 720p, 1080i: Cat 5e/6: 330 ft (100 m) 1080p: Cat 5e/6: 330 ft (100 m) 1080p Deep Color: Cat 5e/6: 330 ft (100 m) 4K (3840x 2160): Cat 5e/6: 330 ft (100 m) When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
• RJ45 Pin Configuration Reverse Polarity Sensitive Use EIA/TIA 568 A or B, straight-through wiring. - RJ45 Pin 1 (R) Pin 2 (T) Pin 3 (R) Pin 6 (T) Pin 4 (R) Pin 5 (T) Pin 7 (R) Pin 8 (T)
• Cable - One (1) Cat5e/6 or better twisted pair cable required.
• Power Supply - Two (2) 110-240V/12VDC power supply with interchangeable blades included
• Power Consumption - Transmitter: 1.8W Receiver: 3.6W
• Temperature - Operating: 0º to 55º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.
• Enclosure - Cast aluminum
• Dimensions - 4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
• Weight - 2.0 lb (0.9 kg)
• Compliance - Regulatory: FCC, CE, RoHS Flammability: 94V0
• Warranty - 2 years
• Order Information - 500450 HDMI Extender Kit (includes, Tx, Rx, IR-Emitter, IR Sensor, 2x PSU)
