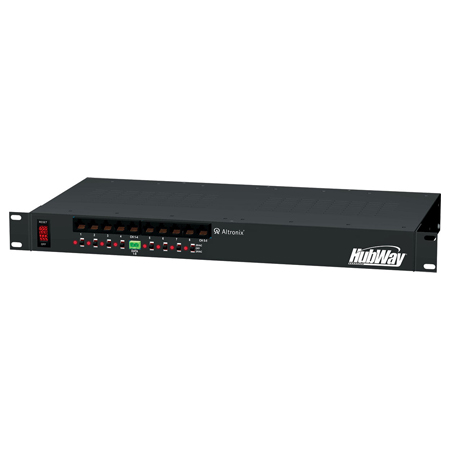

HUBWAY82D Altronix 8 Channel Passive UTP Transceiver Hub 115VAC/230VAC w/ 8 Combiners for 24VAC Cameras - CAT-5 on Front & BNC on Rear

  • HubWay8D Passive UTP Transceiver Hub with Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable
  • Unit provides 8 camera channels in a space saving 1U EIA 19 rack mount chassis which may be rack, wall or shelf mounted
  • Video transmission range is up to 750 ft. max. per channel
  • Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners
More details...
Ordering Notes: Dealers Only
MSRP Price: $1,160.00
Web Price: $829.00
Save to my Wish List

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details



  • Voltage - 115VAC, 60Hz, 1.5A or 230VAC, 50/60Hz, 1A.


  • PTC protected outputs rated 1A per channel.
  • Voltage - Individually selectable 24VAC or 28VAC power outputs with OFF position.
  • Current - Up to 1A max. per channel, not to exceed a total of 5A maximum current.
  • Other - Surge suppression.


  • Eight (8) channels of video over twisted pair up to a distance of 228.6m (750 ft.) per channel.
  • Eight (8) 75 Ohm video outputs.
  • RS422/RS485 data inputs.

Indicators (LED)

  • Outputs - Eight (8) individual power LED indicators.

Agency Listings

  • UL - UL 2044 (Commercial CCTV Equipment).
  • CE - European Conformity.
  • C-Tick compliant.

Physical and Environmental

  • Enclosure Dimensions (H x W xD) - Modular 1U standard EIA 19 rack mount chassis, 1.625 x 19.125 x 8.5 (41.3mm x 486mm x 216mm).
  • Product Weight - 11.0 lbs. (4.99 kg).
  • Shipping Weight - 12.3 lbs. (5.58 kg).
  • Operating Temperature - 0C to 49C (32F to 120F).
  • Storage Temperature - -20C to 70C (-4F to 158F).
  • Relative Humidity - 85% +/-5%.
  • BTU/Hr. (approx.) - 24VAC: 61 BTU/Hr, 28VAC: 72 BTU/Hr

HUBWAY82D Specifications PDF

HUBWAY82D Manual
