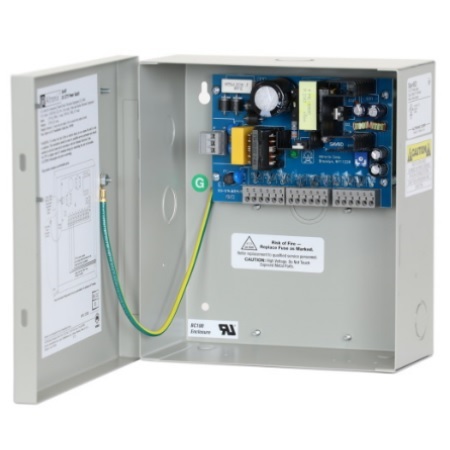

SAV9D Altronix 9 PTC Output CCTV Power Supply with Enclosure 12VDC @ 5Amp

Altronix Sav Power Supplies provide 12VDC distributed via four (4), nine (9), eighteen (18) or thirty-six (36) Class 2 Rated PTC protected power-limited outputs for powering surveillance cameras and other 12VDC devices.

Specifications

Input

• Voltage - 115VAC, 60Hz or 230VAC, 50Hz.
• Current - See Reference Chart.

Outputs

• Voltage - 12VDC
• Current - 2.5A per output max, not to exceed total output current.
• Protection - PTCs are rated 2.5A.
• Other - Overload protection Filtered and regulated.

Indicators (LED)

• Input - Power On.
• DC Output - Powered.

Agency Listings

• Commercial CCTV Equipment - UL294
• Video and Similar Electronic Equipment - CAN/CSA C22.2 No. 1-04

Physical and Environmental

• Dimensions (H x W x D) - 8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
• Product Weight - 4.6 lbs. (2.09 kg)
• Shipping Weight - 5.1 lbs. (2.31 kg)
• Operating Temperature - 0°C to 49°C (32°F to 120°F )
• Storage Temperature - -20°C to 70°C (-4°F to 158°F)
• Relative Humidity - 85% +/-5%.
• BTU/Hr. (approx.) - 31 BTU/Hr.
