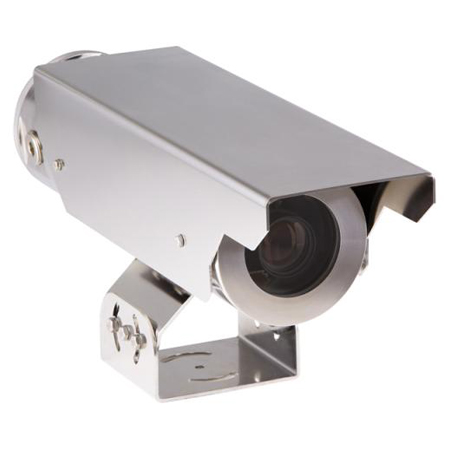

VEN-650V05-2A3 BOSCH 5 to 50mm Varifocal 540TVL Outdoor Day/Night EX65 Explosion Protected Security Camera 12VDC/24VAC

Specifications:

• Horizontal Resolution - 540 TVL
• Signal-to-Noise Ratio - >50 dB
• Video Output - Composite video 1 Vpp, 75 ohm
• Synchronization - Internal, Line Lock, HV-lock and Genlock (Burst lock) selectable
• Shutter - Auto (1/50 [1/60] to 1/10000) selectable; Auto (1/50 [1/60] to 1/50000) automatic flickerless, fixed selectable
• Sensitivity Up - Adjustable from Off up to 10x
• Day/Night - Color, Mono, Auto
• Auto Black - Automatic continuous, Off
• Dynamic engine - XF-Dynamic, 2X-Dynamic, SmartBLC
• Dynamic range - 120 dB (20-bit image processing)
• Dynamic Noise Reduction - Auto, On/off selectable
• Sharpness - Sharpness enhancement level selectable
• SmartBLC - On (includes 2X-Dynamic ) / Off
• AGC - AGC On or Off (0–30 dB) selectable
• Peak White Invert - On/Off
• White Balance - ATW, ATWhold and manual (2500 to 10000K)
• Alarm Output - VMD or day/night switch
• Alarm Output Relay - 30 VAC or +40 VDC, Max 0.5 A continuous, 10 VA
• Video Motion Detection - One area, fully programmable
• Privacy Masking - Four (4) independent areas, fully programmable
• Controls - OSD with soft-key operation (multi-lingual)
• Lens - 5–50 mm IR corrected
• Heater - Included
• Operating Temperature - -50 °C to 60 °C (-58 °F to 140 °F)
• Storage Temperature - -55 °C to 70 °C (-67 °F to 158 °F)
• Operating Humidity - 0 to 100% relative (condensing, after installed and sealed)
• Storage Humidity - 20 to 98% relative (non-condensing)
• Dimensions (L x W x H) - 381 x 114 x 114 mm (11.01 x 4.5 x 4.5 in.) without sunhood or mounting cradle
• Weight - Aluminum: 6.4 kg (14 lb)
• Construction - Electropolished 316L Anodized Aluminum
• Bracket - Pan(±36°)/Tilt(±45°), mounting cradle included
• Cable Entry - Four (4) 3/4-in. NPT entries; conduit seal included with NTSC models
• View Window - 9-mm thick borosilicate float glass
