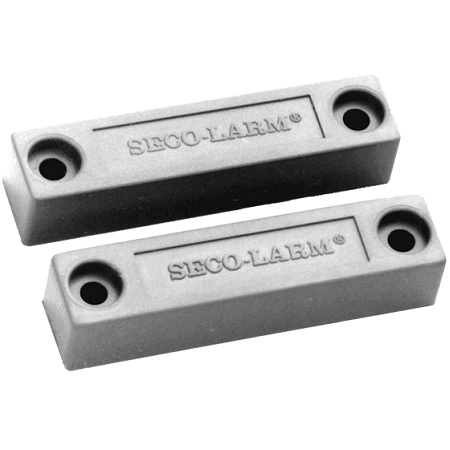

SM-217Q/W-10 Seco-Larm Miniature Surface Mount N.C. Magnetic Contact w/ Concealed Screw Terminals - White - Pack of 10

SKU: SM-217Q/W-10

Wide gap for loose-fitting doors and windows
Surface-mount magnetic contacts
Screw mount
ABS plastic case has integrated mounting holes
Contact reed switch is SPST, deactivated rhodium on gold underplating for a longer expected life
For closed loop circuits
2" (51mm) Gap
Lifetime limited warranty

MPN: SM-217Q/W-10

MSRP Price: $102.00

Price: $102.00

New to DWG? - Sign Up for immediate access to dealer pricing and benefits.

Already a DWG Customer? - Sign In to view pricing.

Product Details

Specifications

Model Number - SM-217Q/W-10
Loop type - Closed loop
Electrical configuration - N.O. (SPST)
Operation gap - 2" (51mm)
Connectors - Screw terminals
Color - White
Material
- Case - High-impact ABS plastic
- Contact - Deactivated rhodium on gold underplating
Contact rating
- 0.75A@24VDC (max.)
- 1.0A@10VDC (max.)
- 10W (max)
Temperature - -15°~160°F (-25°~70°C)
Switch cycles - 50 Million (0.1mA@5VDC)
Switch dimensions - 21/2" x1/2"x9/16" (63x13x14 mm)
Magnet dimensions - 21/2" x1/2"x9/16" (63x13x14 mm)
Magnet - Alnico 5
