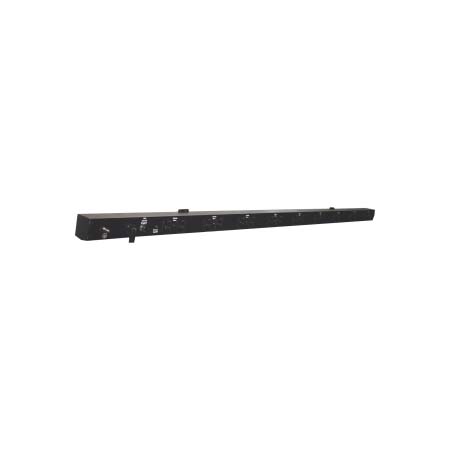

MMPD2020V60DCL Minuteman 20 Output Power Distribution Unit 0U Vertical

The Minuteman line of power distribution, power protection, and power management products have features and capabilities included in the standard product that increase the versatily of the products. This reduces the need for custom, non-standard configurations and allows for a better availabilty of products to fill your needs.

Specifications

• Model Number - MMPD2020V60DCL
• Description - PDU - 20 Amp 20-outlet
• Dimensions (H x W x D) - 1.6 x 60.0 x 1.5 in 42 x 1524 x 38 mm
• Mounting Orientation - 0U, Wallmount
• Maximum Capacity - 16-Amp
• Power Cord Length - Two 15 ft (4.6 m)
• Power Cord Type - Two L5-20P
• Total Outlets - 20
• Outlets(type) - Front - 20 x (5-15/20R)
• Outlets(type) - Rear - N/A
• Power ON/OFF LED - Yes
• Circuit breaker UL 1077 - Two 20-Amp
• Circuit breaker UL 489 - No
• Circuit Quantity - Two
• Built-in Amp-meter - No
• Audible Overload Alarm - No
• Input/Output Voltage - 120V/120V
• Frequency - 50/60Hz
• Included Brackets - 0U/Wallmount
• Safety Approvals - UL 60950-1, cUL, CE

MMPD2020V60DCL Specifications PDF
