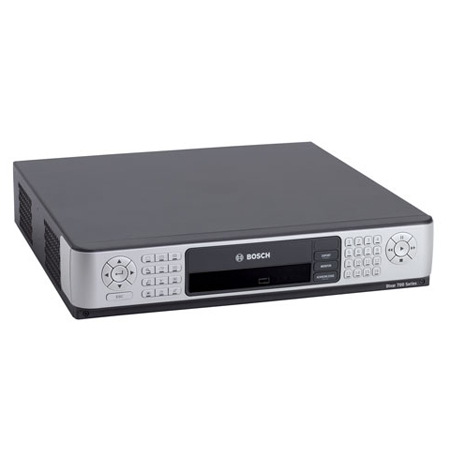

DNR-732-08B400 BOSCH 8 Channel Digital Network HD Recorder - 4TB

The Bosch 700 Series Hybrid and Network HD Recorders offer top-of-the-line performance and adaptability. Equipped with four front-replaceable hard drives and extensive integration features, the 700 Series is ideal for medium to large-scale systems. The 700 Series' superior image quality and compression gets the most out of CCTV images. Available in both IPonly and hybrid models, the 700 Series can handle even the most challenging CCTV applications without excessive demands on installers or operators.

Specifications:

• Power input - 100 to 240 VAC; 50/60 Hz
• Power consumption - Max. 2.5 to 1.0 A (250 Watt)
• Video standard - PAL or NTSC auto-detection
• Resolution - 704x576 PAL, 704x480 NTSC
• Compression - H.264
• Video Inputs - 8 or 16 composite video 0.5 to 2 Vpp, 75 ohm automatic termination
• Video Outputs - 8 or 16 composite video 1 Vpp, 75 ohm, sync 0.3 V ± 10%
• Audio Inputs - 8 or 16 line in (DHR models only), mono RCA, 1 Vpp, 10 kohm
• Audio Output - 2 line out, dual mono RCA, 1 Vpp, 10 kohm
• Compression - MPEG-1 layer II
• Dimensions (W x D x H) - 446 x 443 x 88 mm (17.6 x 17.4 x 3.5 in)
• Weight (incl. 4 hard disks) - Approx. 11 kg / 24 lbs
• Rack mount kit (included) - For mounting one unit in an EIA 19" rack
• Operating temperature - +5 °C to +45 °C (+41 °F to +113 °F)
• Storage temperature - -25 °C to +70 °C (-13 °F to +158 °F)
• Operating Relative humidity - <93 % non-condensing
• Storage Relative humidity - <95 % non-condensing
