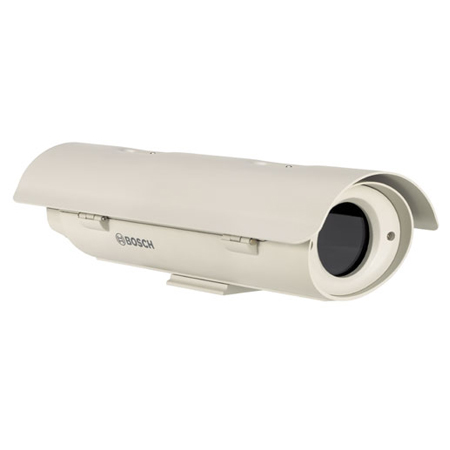

UHO-HBPS-50 BOSCH Outdoor Camera Housings with NEMA-4X Enclosure Rating

The UHO series housings are smartly styled housings, for outdoor use. These housings are both cost-competitive and installer-friendly. Models are available for use with 24 VAC, 115 VAC, and 230 VAC cameras, to fit a wide range of applications.

The unique, hinged, side-opening design provides easy installation of all camera/lens combinations, and allows access to most camera and lens controls when the housing is mounted. Power, video, and lens control cabling can be routed through liquid-tight fittings in the bottom rear of the housing, or for even better cable management, via the feed-through entry holes in the base. Mounting holes in the base permit installation to a wide range of pan/tilts, adjustable heads, and various camera mount brackets.

External 4-pin and BNC connectors for power and video, located in the rear end cap, are also available on 24 VAC and 230 VAC models. These aluminum-constructed housings are available with a factory-installed heater and blower. The heater maintains the internal temperature of the housing in cold temperature conditions as low as -40 °C (-40 °F). In combination with a permanent low-power window defroster and a continuous- duty blower, the unit minimizes fogging in high humidity locations, and extends the temperature limits. Sunshields are included on all outdoor models.

UHO-HBPS-50 Spec Sheet

UHO-HBPS-50-Manual Spec Sheet
