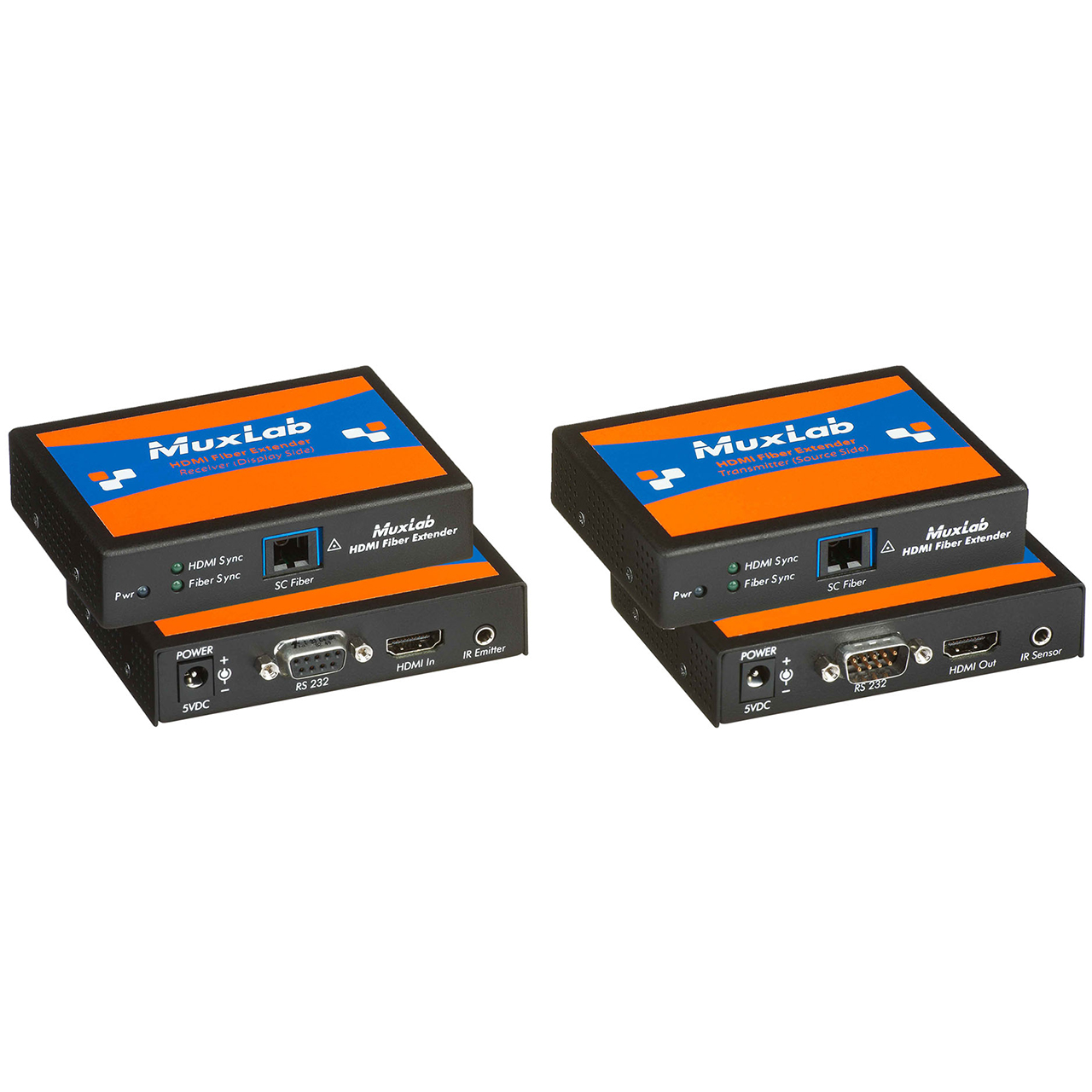

500460 Muxlab HDMI Fiber Extender Kit

Specifications

• Environment - HDMI 1.3a
• Devices - DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
• Transmission - Transparent to the user
• Bandwidth - 340 MHz
• Signals - HDMI 1.3a protocol
• Connectors - One (1) HDMI receptacle. One (1) SC Fiber connector. 3.5mm jacks for IR emitter and sensor DB9 Connectors for RS-232 Ports Note: Fiber and serial cables not included.
• Maximum DistanceBased on a maximum length of 6.6 ft (2 m) of HDMI cable per end. - 1080P video may be extended up to 1000 feet (305m), depending of the type of fiber used. 100m (300 ft) on 62.5/125 µm (OM1) multi-mode SC fiber 305m (1000 ft) on 50/125 µm (OM3) multi-mode SC fiber.
• Cable - One (1) Multimode fiber 50/125 µm or 62.5/125 µm cable required
• Power Supply - Two (2) 110-240V/5VDC power supplies with interchangeable blades
• Power Consumption - Transmitter: 2.7 Watt Receiver: 2.3 Watt
• Temperature - Operating: 0° to 40°C Storage: -20° to 85°C Humidity: Up to 95% non-condensing
• Enclosure - 4.00" x 3.00" x 0.876" (10.2 x 7.6 x 2.2 cm)
• Dimensions - Steel
• Weight - 2.0 lb (0.9 kg)
• Compliance - Regulatory: FCC, CE, RoHS Flammability: 94V0
• Warranty - 2 years
• Order Information - 500460 HDMI Fiber Extender Kit

500460 Specifications PDF
