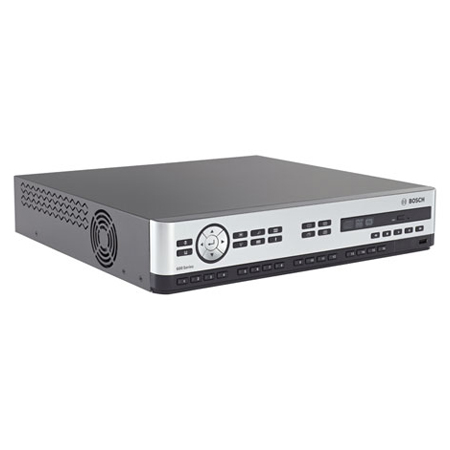

DVR-670-16A050 BOSCH 16 Channel 670 Series DVR 30IPS @ 4CIF w/o DVD - 500GB

The Bosch Video Recorder 670 Series is an 8/16 channel digital recorder that uses the latest H.264 compression technology. With the supplied PC software and built-in web server, the 670 Series is a fully integrated, stand-alone video management solution that's ready to go, straight out of the box. Available with a variety of storage capacities, the 670 Series features a highly reliable embedded design that minimizes maintenance and reduces operational costs. The recorder is also available with a built-in DVD writer.

Specifications:

• Model Number - DVR-670-16A050
• External power adapter AC input - 110–240 VAC; 50/60 Hz; 1.8 A
• External power adapter DC output - 12 VDC; 5 A
• DVR Power input - 12 VDC; 3.5 A; 145 BTU/h
• Inputs - Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
• AGC - Automatic gain adjustment for each video input
• Outputs - Monitor A: VGA (Default) or HDMI, Monitor B: HDMI (Default) or CVBS
• Live Resolution (Mon.A & B) - 800x600 (4:3), 1024x768 (4:3) 1280x1024 (5:4) 1920x1080 (16:9)
• Digital Zoom - 2 times
• Streaming video - H.264 compression
• Audio Input / Output - Mono RCA, 1.0 Vpp
• Compression - ADPCM
• Sample rate - 16 kHz per channel
• Bit rate - 8-bit
• Alarm Inputs - 8 or 16 inputs configurable NO/NC, max. input voltage 15 VDC
• Alarm Outputs - 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
• RS485 - Output signals according to RS485, max. signal voltage -8 to +12 V
• RS232 - Output signals according to EIA/TIA-232-F, max input voltage ±25 V
• Dimensions (WxDxH) - 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in) excluding cabling
• Weight - 4.3 kg (9.46 lb) approx.
• Operating Temperature - +0°C to +40°C (+32°F to +104°F)
• Storage Temperature - -40°C to +70°C (-40°F to +158°F)
• Operating Humidity - <93% non-condensing
• Storage Humidity - <95% non-condensing
