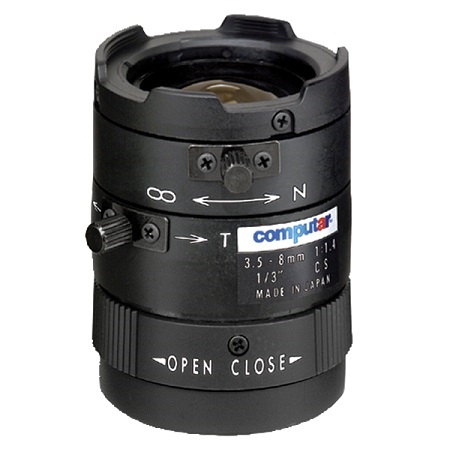

T2Z3514CS Computar 1/3" 3.5-8mm f1.4 Vari-Focal Manual Iris CS-Mount Day/Night Lens

Computar varifocal manual iris lenses offer maximum flexibility in camera installations requiring a wide range of focal lengths. Focal length adjustments can be made with a turn of the dial, virtually eliminating the cost and inventory problems associated with improper monofocal lens selection. All lenses are CS-Mount, comprised of all glass optics, come with locking setscrews and a durable metal barrel and mount, and are covered by a three year warranty.

Specifications

• Model No - T2Z3514CS
• Focal Length - 3.5mm - 8mm
• Max. Aperture Ratio - 1:1.4
• Max. Image Format - 4.8mm x 3.6mm(φ8.9mm）
• Operation Range
• Iris - F1.4 - F16C
• Focus - 0.4m - Inf.
• Zoom - 3.5mm - 8mm
• Control
• Iris - Manual
• Focus - Manual
• Zoom - Manual
• Object Dimension at M.O.D.
  • 3.5mm - 64.3cm x 43.9cm
  • 8mm - 25.5cm x 18.9cm
• Angle of View
• 1/3 type
  • D - 97.9°‐ 44.3°
  • H - 77.6°‐ 35.4°
  • V - 57.6°‐ 26.6°
• 1/4 type
  • D - 72.7°‐ 33.2°
  • H - 57.6°‐ 26.6°
  • V - 43.0°‐ 19.9°
• Operating Temperature - -20°C ‐ +50°C
• Effective Lens Aperture
• Front - φ16.6mm
• Rear - φ9.0mm
• Back Focal Length
  • Tele - 13.1mm
  • Wide - 8.3mm
• Flange Back Length - 12.5mm
• Mount - CS‐Mount
• Filter Size - -
• Dimensions - 34mm x 43.5mm
• Weight - 38g
