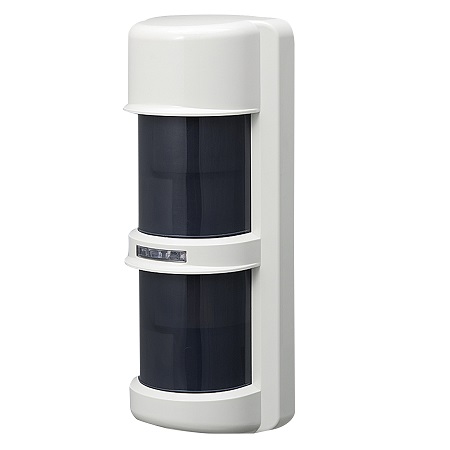

OMS-12FE TAKEX 40' x 180 Wide Angle Dual Zone Detection Relay Output - Selectable N/O N/C 9 to 28VDC - Small Animal Resistant

SKU: OMS-12FE
  • Dual-zone detection system
  • 3-12m coverage
  • Fixed sensor heads
  • Easily enable/disable left or right detection areas
  • Supplied masking sheets allow precise area control
  • Front and back tampers
  • IP54 housing
More details...
MSRP Price: $232.00
Online Price: $232.00
Save to my Wish List
Product Details

Equipped with 4 pyros, the detection field is divided into left and right zones which can be enabled/disabled as required for precise area control. The slim-profile housing features a back-tamper, and the clearly labelled option switches make installation a breeze.


Specifications

  • Model - OMS-12FE
  • Detection system - Passive infrared
  • Coverage
    • When horizontal detection
    • Angle - 180
    • Detection distance - 40' (12m)
    • Horizontal zone - 14zones
    • Downward zone - 14zones
  • Coverage adjustment
    • Horizontal - L/R 90(selectable)
    • Detection distance - 10'~40' (3m~12m) (By adjusting vertical angle of downward curtain)
  • Supply voltage - 9 to 28V DC (non-polarity)
  • Current consumption - 20mA MAX
  • Alarm output
    • Dry contact relay output N.C./N.O. selectable
    • *Contact capacity : 30V (AC/DC), 0.2A MAX. (Resistive load)
    • *Contact operation : Detection time(2sec)
  • Tamper output - Dry contact relay output N.C. *Contact capacity : 30V (AC/DC), 0.1A MAX. (Resistive load)
  • Operation LED - Red LED Blinking When Initialising, Lighting at alarm (option to disable)
  • Counts selectable switch - 1/2/3/4 times (with a switch)
  • Sensitivity adjustment - *Approx. 30% -Approx. 170% (By Potentiometer)
  • Connection - Terminals
  • Ambient temperature - -4F to + 122F (-20C to + 50C)
  • Mounting position - Indoor / Outdoor
  • Ingress protection - IP 54(Wall Mount)
  • Weight - 16.5oz (470g)
  • Appearance - Body : AES resin Lens : PE resin
  • Optional - Pole attachment : BP-32

OMS-12FE Specifications Pdf
