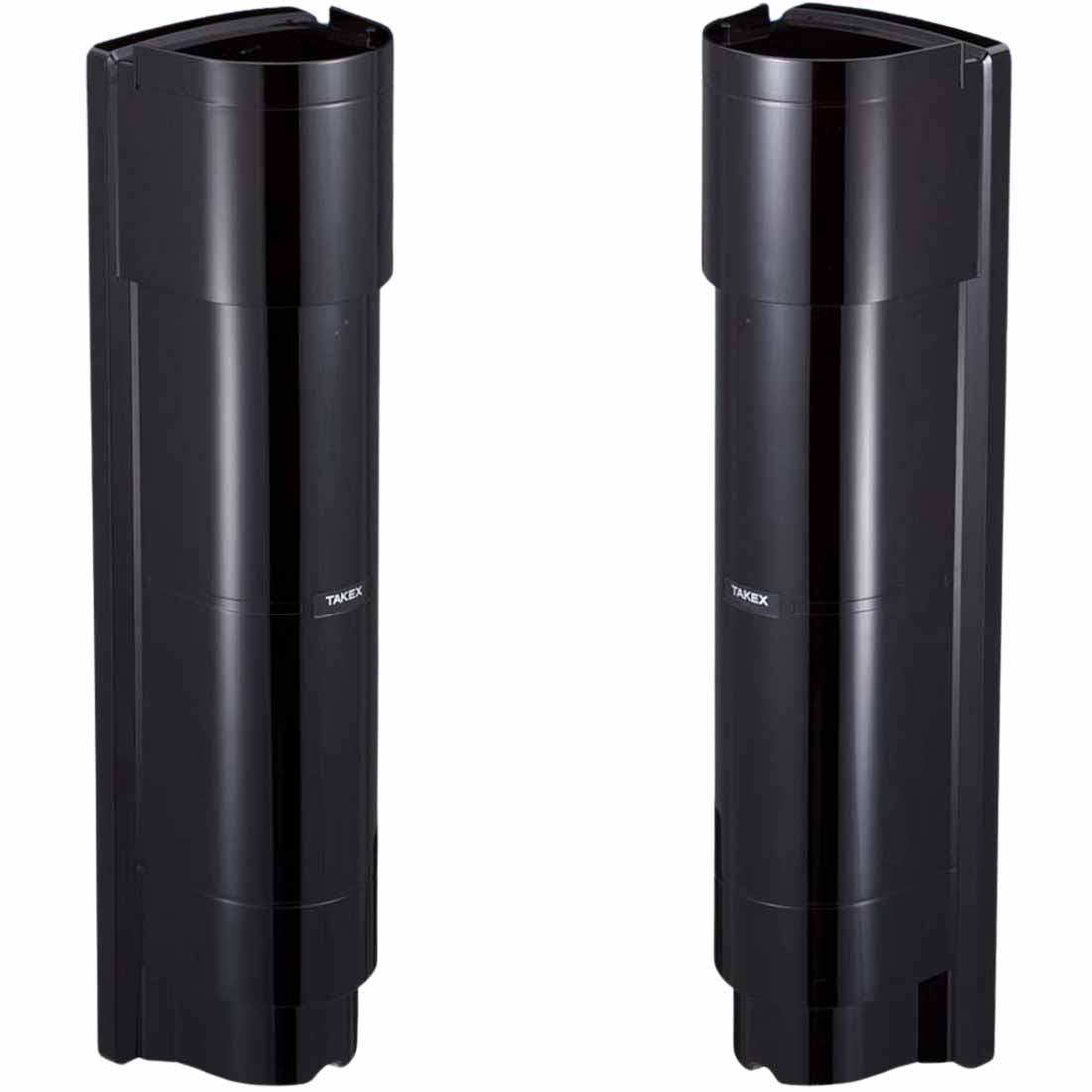

PXB-100ATC TAKEX Anti-Crawl Photoelectric Beam Sensor

There are currently no active sales or promotions related to this item.

SKU: PXB-100ATC

Brand: Takex

PXB-100ATC

Features

Independent control of upper and lower beams
Choose between synchro-quad and anti-crawl operation
Dual outputs for crawl attempt and full beam break
Sync-wire allows unlimited stacking without crosstalk
4 x Selectable beam channels
Increased beam separation minimises nuisance alarms
Vivid internal colour aids beam alignment procedure
Lightning and surge protection up to 15kV
IP65 housing

Our PXB-100ATC photoelectric beam sensors were developed for high-risk applications where detection of all intrusion attempts is critical.

Sophisticated dual response output systems have been designed to distinguish and allocate specific alarm responses based on the size and speed of target objects moving through the detection area, and a unique synchronised timing system ensures unrivalled detection performance and versatility.

More details...

There are currently no active sales or promotions related to this item.

MPN: PXB-100ATC

MSRP Price: $1,098.00

Web Price: $1,098.00

Quantity:

Add to List

Already a DWG Dealer? - Sign In to view pricing.

Product Details

Specifications

Type - Anti-crawl
Detection system - Near infrared pulsed beam interruption system (Anti-crawling)
Infrared beam - Double modulation pulsed beam by LED
Detection distance - Outdoor 330' (100m) or less
Max. arrival distance - 3300' (1000m)
Frequency Selection - 4 Channels (+ Sync Wire)
Response time - AT output: 0.05sec by upper/lower level simultaneous interruption
0.1/0.2/0.3/0.5sec by either level interruption
HF output: 0.05sec by upper/lower level simultaneous interruption
Supply voltage - 12 to 30V DC (Non-polarity)
Current consumption - Transmitter: 27mA
Receiver: 48mA
Alarm output - Dry contact relay output N.O./N.C. selectable
Contact action: Interruption time (Min.2sec.)
Contact capacity: 30V (AC/DC) 0.25A (resistive load)
Protective resistor
Environmental output - Dry contact relay output N.O./N.C. selectable
Action: Activated when weather condition gets worse (Min.5sec.)
Contact capacity: 30V (AC/DC) 0.25A (resistive load)
Protective resistor
Tamper output - Dry contact (N.C.)
Action: Activated when cover is detached
Contact capacity: 30V (AC/DC) 0.1A (resistive load)
Protective resistor
LED indicator - Red LED (Receiver)
ON : when an alarm is initiated (Alarm LED)
ON : when beam is attenuated (Attenuation LED)
Functions - Modulated beam frequency selection, Tone indicator, Environmental module, Beam power selection, Transmitting power adjustment, Programmed AGC, Auto-gain lock function, Monitor Jack, Tamper, Response time adjustment, Upper/lower beam switch, Wireless checker
Adjustment - Horizontal: ±90°, Vertical: ± 20°
Mounting position - Outdoor / indoor
Wiring - Terminals
Weight - Transmitter: 49oz (1,400g)
Receiver: 52.5oz (1,500g)
Appearance - PC resin (wine red)
Ambient temperature - -31ﾟF to +151ﾟF (-35 to +66℃)
IP Rating - IP65
