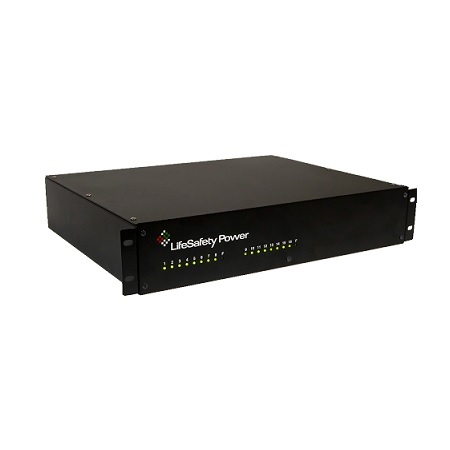

RD150/150 LifeSafety Power RD150 Series 12 Amp 12VDC 6 Amp 24VDC 2 Auxiliary Distribution Outputs Access Control and CCTV Power Supply in UL Listed Indoor 19" W x 3.5" H x 14" D Rackmount Electrical Enclosure

SKU: RD150/150
  • 120VAC input or user select 230VAC supports data center electrical systems
  • Each input and output has dedicated two terminal pair
  • Direct power supply output terminals for flexibility
  • High capacity battery charging | Independent charging circuit
  • Automotive fuses for improved ease of service
  • Removable faceplate for serviceability
  • Form C contact transfer for AC Loss or brownout
  • Form C contact transfer for abnormal system operation
  • Latching or Non-latching | Remote reset capability
  • Normally Open, Normally Closed
  • Voltage | Polarity Reversal Activation
More details...
Availability: 2 to 3 Week Lead Time
Ordering Notes: Dealers Only
MSRP Price: $849.00
Web Price: $567.00
Save to my Wish List
Product Details

FLEXPOWER RD SERIES is a 12/24VDC single or dual voltage, DC rackmount power system with multiple power distribution outputs specifically designed for use within the access, security, CCTV, and mass notification segments of the life safety industry. Multiple output options provide for simple power distribution for auxiliary equipment power. Models ending in /E are preset for a 230VAC input from the factory.


Input Power

  • Input 120/230 VAC 50/60 Hz (model number dependent)
  • Thermal overload protection / Short circuit protection

Output Power

  • 300 Watts: PS1 12A/12VDC or 6A/24VDC, PS2 12A/12VDC or 6A/24VDC

Output Distribution

  • Optional eight or sixteen auxiliary outputs fused at 3A each
  • 8P, 16P outputs are Class II power limited at 2.5A each Individually selectable outputs on dual voltage systems


  • AC input, DC1, and DC2 output
  • Low battery and battery presence supervision (form C contacts)
  • AC fail supervision (form C contacts)
  • System Fault, AC Fault, Ground Fault, Reverse Battery

External Indicators

  • AC on master on/off switch
  • Front Panel Individual Output Status LEDs

Battery Charging

  • Maximum charge current 2.0 amp
  • Independent built-in charger for sealed lead acid or gel type batteries
  • Microprocessor dual rate charging of 12 or 24 V battery sets
  • Automatic switchover to standby battery when AC fails
  • Zero voltage drop when switched over to battery backup

Regulatory Compliance

  • UL294 / UL603 / ULC S318 / ULC S319 / CSA C22.2 #107.1 / CSA 22.2 #60950 / FCC / CE

BTU Rating

  • 132 BTU/Hr

Physical Dimensions

  • 2U rack mount (19.00"W x 3.5"H x 14"D)
  • Weight 19 lbs.

RD150/150 Specifications PDF
