[DISCONTINUED] GV-FD3400 Geovision 3~9mm Varifocal 20FPS @ 2048 x 1536 Indoor Day/Night WDR Fixed Dome IP Security Camera 12VDC 24VAC

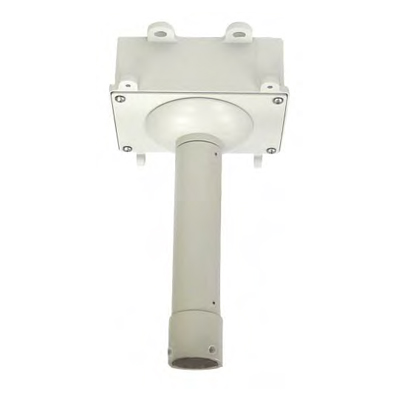

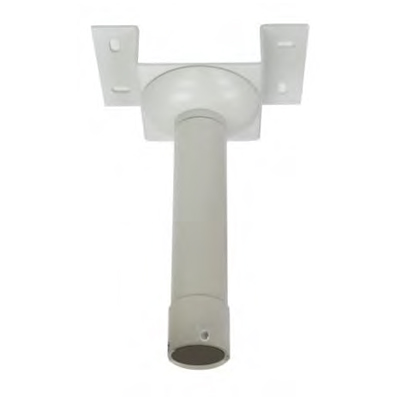

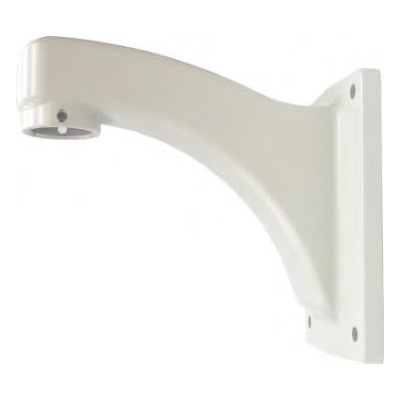

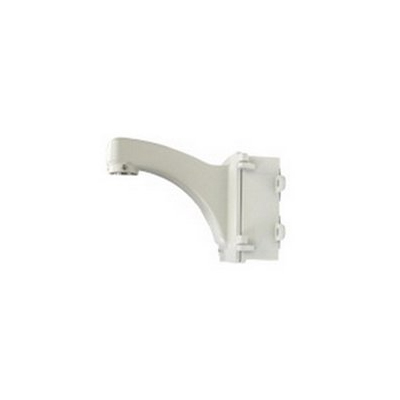

The GV-FD3400 is an indoor camera designed with 3-axis for easy and flexible installation. The Fixed IP Dome is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. With optional accessories, the camera can be installed on various types of locations including wall surface, wall corner, pole and ceiling.

Specifications

Camera

• Image Sensor - 1/3.2" progressive scan CMOS
• Picture Elements - 2048(H) x 1536 (V)
• Minimum illumination
  • Color - 0.08 Lux
  • B/W - 0.05 Lux
  • IR On - 0 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/8000 sec)
• White Balance - Automatic, Manual (2800 ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 47db
• WDR Pro- Yes
• BLC - Yes

Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR-Cut Filter)
• Lens Type - Varifocal
• Focal Length - 3 ~ 9mm
• Maximum Aperature - F/1.2
• Mount - Ø 14 mm
• Image Format - 1/2.7"
• Operation
  • Focus - Manual (w/lock)
  • Zoom - Manual (w/lock)
  • Iris - DC Drive
• Torque (Focus/Zoom screws) - 0.049 N.m
• IR LED Quantity - 10 IR LEDs
• Max. IR Distance - 15 m (50 ft.)

Operation

• Video Compression - H.264, MPEG4
• Video Streaming - Dual streams from H.264 or MJPEG
• Frame Rate - 20 fps at 2048 x 1536 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
• Image Setting - Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog
• Audio Compression - G.711
• Two‐way Audio - Yes
• Sensor Input - 1 input (Dry Contact)
• Alarm Output - 1 Output (200mA 5V DC)

Video Resolution

• Main Stream
  • 4:3 - 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240

  • 16:9 - 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252

  • 5:4 - 1280 x 1024, 640 x 512, 320 x 256

• Sub Stream
  • 4:3 - 640 x 480, 320 x 240

  • 16:9 - 640 x 360, 448 x 252

  • 5:4 - 640 x 512, 320 x 256

Network

• Interface - 10/100 Ethernet
• Ethernet Protocol - HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP), ONVIF (Profile S)

Mechanical

• Camera Angle Adjustment
  • Pan - 0° ~ 350°
  • Tilt - 10° ~ 90°
  • Rotation - 0° ~ 340°
• Temperature Detector - Yes
• Connectors
  • Power - 2�-pin terminal block, PoE
  • Ethernet - RJ-45
  • Audio - 1 In (Using the built-in microphone or externally connecting a microphone) 1 Out (Stereo phone jack, 3.5 mm / 0.14�")
  • Digital I/O - 3-pin terminal block, pitch 2.5 mm (0.1�")
  • Local Storage - Micro SD memory card slot (SDHC / SDXC for Class 6 card or above)
  • TV�-Out - BNC connector (640 x 480 resolution)
• LED Indicator - 2 LEDs: Power, Status

General

• Operating Temperature - 0 °C ~ 50 °C (32 °F ~ 122 °F)

• Humidity - 10% to 90% (no condensation)

• Power Source - 12V DC / 24V AC / PoE

• Max. Power Consumption - 12W

• Dimensions (without lens) - ø 155 x 110 mm (6.1'' x 4.33")

• Weight - 580 g (1.28 lb)
• Vandal Resistance - 1K7

• Regulatory - CE, RCM, FCC, RoHS compliant

Power over Ethernet

• PoE Standard - IEEE 802.3af Class 3 Power over Ethernet / PD

• PoE Power Supply Type - End‐Span

• PoE Power Output - Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

• Installation Management - Web‐based configuration

• Maintenance - Firmware upgrade through Web Browser or Utility

• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay, Digital PTZ

• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Network Storage - GV-NVR, GV-System, GV-Backup Center, GV-Recording Server

• Smart Device Access - GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch GV-Eye HD for iPad

• Live Viewing - IE, mobile phone

• CMS Server support - GV‐Control Center, GV‐Center V2, GV‐VSM

GV-FD3400 Specifications PDF
