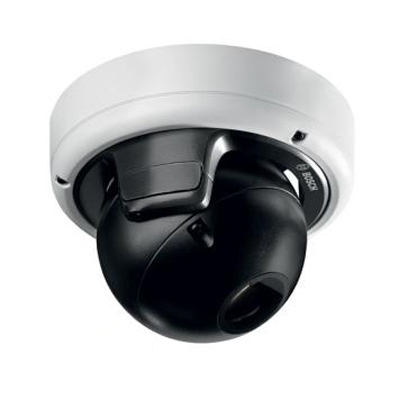

NDN-733V02-P Bosch 1.8 to 3mm Varifocal 720p HD Indoor/Outdoor Day/Night Flexidome IP Security Camera

Electrical

• Power Supply
  • 24 VAC 50/60 Hz
  • 12 VDC

  • Power-over-Ethernet 48 VDC nominal
• Current Consumption
  • 1 A (12 VDC)

  • 0.8 A (24 VAC)

  • 0.3 A (PoE 48 VDC)
• Power Consumption - 12 W
• PoE - IEEE 802.3af (802.3at Type 1)
• Sensor Type - 1/3inch CMOS HD
• Sensor Pixels - 1312 x 1069 (1.4MP)
• Video compression - H.264 (ISO/IEC 14496-10); M- JPEG, JPEG
• Streaming - Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI)
• Overall IP Delay - Min. 120 ms, Max. 240 ms
• GOP Structure - IP, IBP, IBBP
• Encoding Interval - 1 to 60 (50) ips
• Resolutions (H x V)
  • 720p HD - 1280 x 720

  • D1 4:3 (cropped) - 704 x 480

  • SD upright (cropped) - 400 x 720

  • 480p SD
    • Encoding: 704 x 480;

    • Displayed: 854 x 480

  • 432p SD - 768 x 432

  • 288p SD - 512 x 288

  • 240p SD
    • Encoding: 352 x 240;

    • Displayed: 432 x 240

  • 144p SD - 256 x 144
• Color - 0.017 lx (0.0017 fc)
• Monochrome - 0.0057 lx (0.00057 fc)
• Day/Night - Color, Monochrome, Auto
• White Balance - ATW (2500 to 10000K), ATW hold and manual Indoor and Outdoor ATW
• Shutter - Automatic Electronic Shutter (AES) Fixed (1/30 [1/25] to 1/150000) selectable Default shutter
• Backlight compensation (IVA) - Off, Auto, IntelligentAE (iAE)
• Backlight compensation (non IVA) - Off, Auto, BLC
• Noise reduction - Intelligent Dynamic Noise Reduction (iDNR) with separate temporal and spatial adjustments
• Contrast enhancement - On/off
• Sharpness - Sharpness enhancement level selectable
• Dynamic range - 84 dB Wide Dynamic Range (WDR)
• Privacy Masking - Four independent areas, fully programmable
• Video Motion - Analysis Intelligent Video Analysis
• Audio Standard - Standard AAC G.711, 8kHz sampling rate L16, 16kHz sampling rate
• Signal-to-noise ratio - > 50 dB
• Audio Streaming - Full duplex / half duplex

Input / Output

• Analog Video out (service only) - CVBS (PAL/NTSC), 1 Vpp, 2.5 mm jack, 75 Ohm (non-protected)
• Audio - 1 x mono line in, 1 x mono line out
  • connector - 3.5 mm stereo jack

  • signal line in - 12 kOhm typical, 1 Vrms max

  • signal line out - 1 Vrms at 1.5 kOhm typical
• Alarm - 2 inputs
  • activation voltage - +5 VDC to +40 VDC (+3.3 VDC with DC-coupled 22 kOhm pullup resistor)
• Relay - 1 output
  • voltage - 30 VAC or +40 VDC max. Maximum 0.5 A continuous, 10VA

Local Storage

• Internal RAM - 10 s pre-alarm recording

• Memory card slot - Supports SDHC and SDXC microSD cards

• Recording - Continuous recording, ring recording. alarm/events/schedule recording

Software Control

• Unit Configuration - Via web browser or Configuration Manager

• Software update - Remotely programmable

Network

• Protocols - IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, Telnet, ARP, DHCP, SNTP, SNMP (V1, MIB‑II), 802.1x, DNS, DNSv6, DDNS, SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP, SOAP, Dropbox, CHAP, Digest Authentication.
• Encryption - TLS 1.0, SSL, DES, 3DES, AES (optional)

• Ethernet - 10/100 Base-T, auto-sensing, half/full duplex

• Ethernet connector - RJ45
• Connectivity - ONVIF Profile S, Auto-MDIX

Optical

• Lens - Varifocal SR (Super Resolution)

• Focus control - Motorized back-focus adjustment

• Iris control - Automatic iris control

• Viewing angle

  • 1.8 to 3 mm (IR corrected) - Wide 105â„¢ x 74â„¢ (H x V) Tele 77â„¢ x 49â„¢ (H x V)

  • 3.8 to 13 mm - Wide: 72â„¢ x 40â„¢ (H x V) Tele: 21â„¢ x 11.9â„¢ (H x V )

  • 9 to 40 mm (IR corrected) - Wide: 30â„¢ x 17â„¢ (H x V) Tele: 7.1â„¢ x 3.9â„¢ (H x V )

Mechanical

• Dimensions (D x H) - 208 x 151 mm (8.2 x 5.95 in)

• Weight - 2200 g (4.85 lb)

• Color - RAL 9006 Metallic Titanium

Environmental

• Operating Temperature - -50â„¢C to +50â„¢C (-58â„¢F to 122â„¢F) Non-IVA: -50â„¢C to +55â„¢C (-58â„¢F to 131â„¢F)

• Cold Start Temperature - -20â„¢C (-4â„¢F)

• Storage Temperature - -30â„¢C to +70â„¢C (-22â„¢F to +158â„¢F)

• Operating Humidity - 20% to 93% RH

• Storage Humidity - up to 98% RH

• Vandal Resistance - IK10

• Ingress Resistance - IP67, NEMA Type-4X
