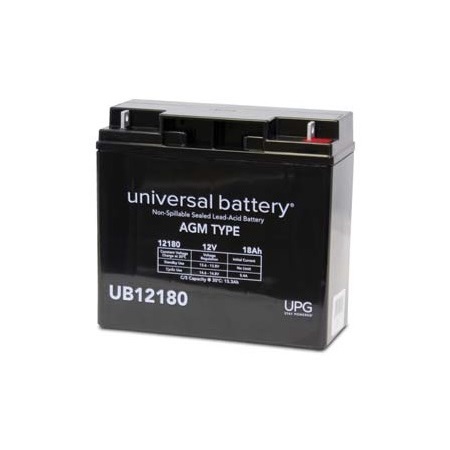

UB12180/T4 UPG Sealed Lead Acid Battery 12 Volts/18Ah - T4 Terminals

• Nominal Voltage - 12 volts
• Nominal Capacity - 77° F (25° C)
  • 20-hr. (0.90A) - 18 Ah

  • 10-hr. (1.67A) - 16.74 Ah

  • 5-hr. (3.06A) - 15.30 Ah

  • 1-hr. (10.80A) - 10.80 Ah
• Approximate Weight - 11.4 lbs (5 kgs)
• Internal Resistance (approx.) - 18m
• Shelf Life (% of normal capacity at 77° F (25°C))
  • 3 Months - 91%
  • 6 Months - 82%
  • 12 Months - 64%
• Temperature Dependancy of Capacity (20 Hour Rate)
  • 104° F - 102%
  • 77° F - 100%
  • 32° F - 85%
  • 5° F - 65%
• AGM Operational Temperature
  • Charge - 0°C to 40°C
  • Discharge - -15°C to 45°C
• AGM Storage Temperature - -15°C to 40°C
• Charge Method (Constant Voltage)
• Cycle Use - Repeating Use
  • Initial Current - 5.4 A or smaller
  • Control Voltage - 14.5 - 14.9 V
• Float Use - Control Voltage - 13.6 - 13.8 V

D5745 Specifications PDF
