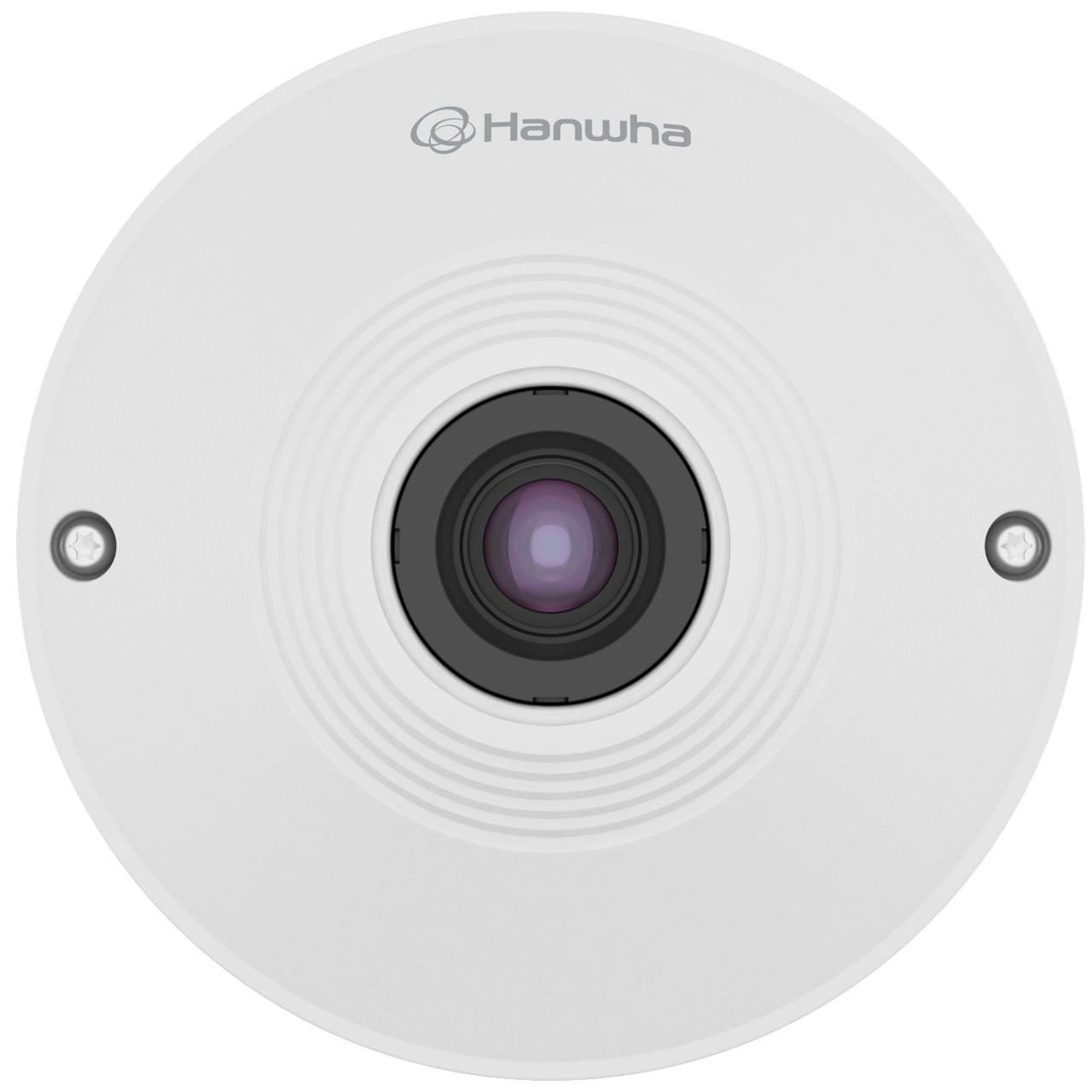

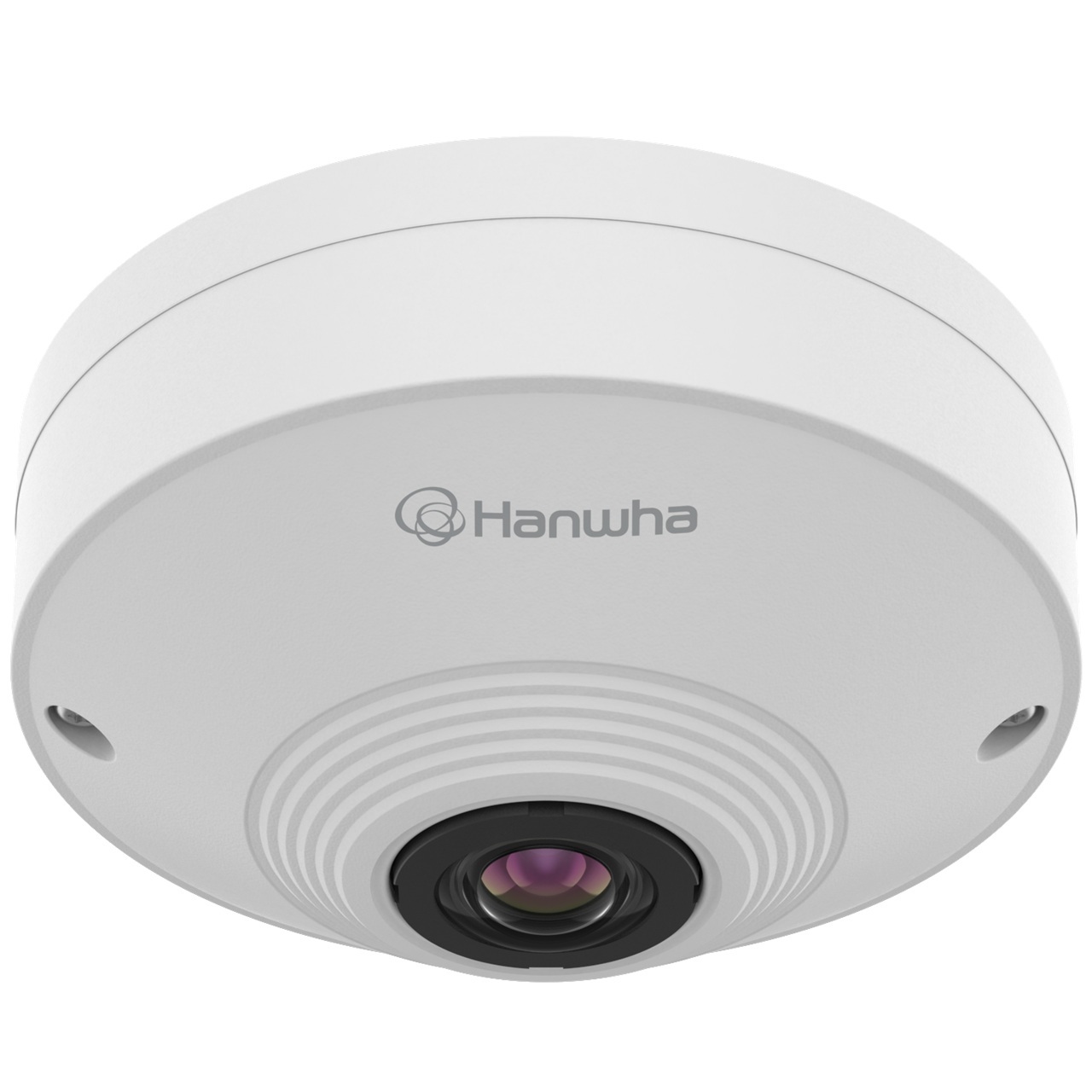

QNF-9010 Hanwha Vision Q Series 1.08mm 30FPS @ 3008p Outdoor IR Day/Night WDR Fisheye IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.3" 12M CMOS
• Effective Pixels - 3008(H) x 3008(V)
• Min. Illumination - Color: 0.39 Lux (F2.2, 1/30sec)
• Video Out - CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation

Lens

• Focal Length (Zoom Ratio) - 1.08mm fixed focal
• Max. Aperture Ratio - F2.2
• Angular Field of View - H: 187° / V: 187° / D: 187°
• Min. Object Distance - 0.5m(1.64ft)

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (Electrical)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range (dB) - 120
• Digital Noise Reduction - SSNRâ…¤
• Motion Detection - 4ea, polygonal zones
• Privacy Masking - 6ea, Rectangle zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(2~1/12,000sec)
• Digital PTZ - Support(Preset, Group)
• Video Rotation - Flip, mirror
• Analytics - Defocus detection, Motion detection, Tampering
• Business Intelligence - People counting, Heatmap
• Alarm Triggers - Analytics, Network disconnect,
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Resolution - Overview : 3008x3008, 640x640 Double panorama: 2560x1280, 1920x960, 1280x640, 1024x512, 640x320 Single panorama: 3200x800, 2560x640, 1920x480, 1280x320, 1024x256 Quad view: 2560x1920, 1920x1440, 1280x960, 1024x768, 640x480
• Max. Framerate - H.265/H.264: Overview-Max. 30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max. 28fps/25fps@2560x1280(60Hz/50Hz) Single panorama-Max. 28fps/25fps@3200x800(60Hz/50Hz) MJPEG: Max. 5fps(60Hz/50Hz)
• Smart Codec - Manual WiseStreamII
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Quality level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6users) / Multicast Multiple streaming(Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform
• Webpage Language - English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
• Memory - 2048MB RAM, 256MB Flash

General

• Memory - 2GB RAM, 256MB Flash
• Edge Storage - Micro SD/SDHC/SDXC Max. 256GB x 1slot

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -10°C ~ +40°C(+14°F ~ +104°F) / Less than 90% RH
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) /0~95% RH(non-condensing)
• Certification - IP42

Electrical

• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 7.7W, typical 6.4W

Mechanical

• Color / Material - White / Plastic
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø99x49mm, 370g

Certifications & Standards

• EMC - EN 50121-4, FCC 47 FR15 SubpartBClass A , ICES-3(A)/NMB-3(A), CE/UKCA- EN55032 Class A, EN 50130-4, EN61000-3-2, EN61000-3-3,VCCICISPR32 Class A, RCM AS-NZS CISPR 32 Class A, KS C9832Class A,KSC9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - IEC/EN 63000, IEC 0529 IP42

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 34.9m(114.49ft)
• Observe (63PPM/ 19PPF) - 13.9m(45.60ft)
• Recognize (125PPM/ 38PPF) -7.0m(22.96ft)
• Identify (250PPM/ 76PPF) - 3.5m(11.48ft)
