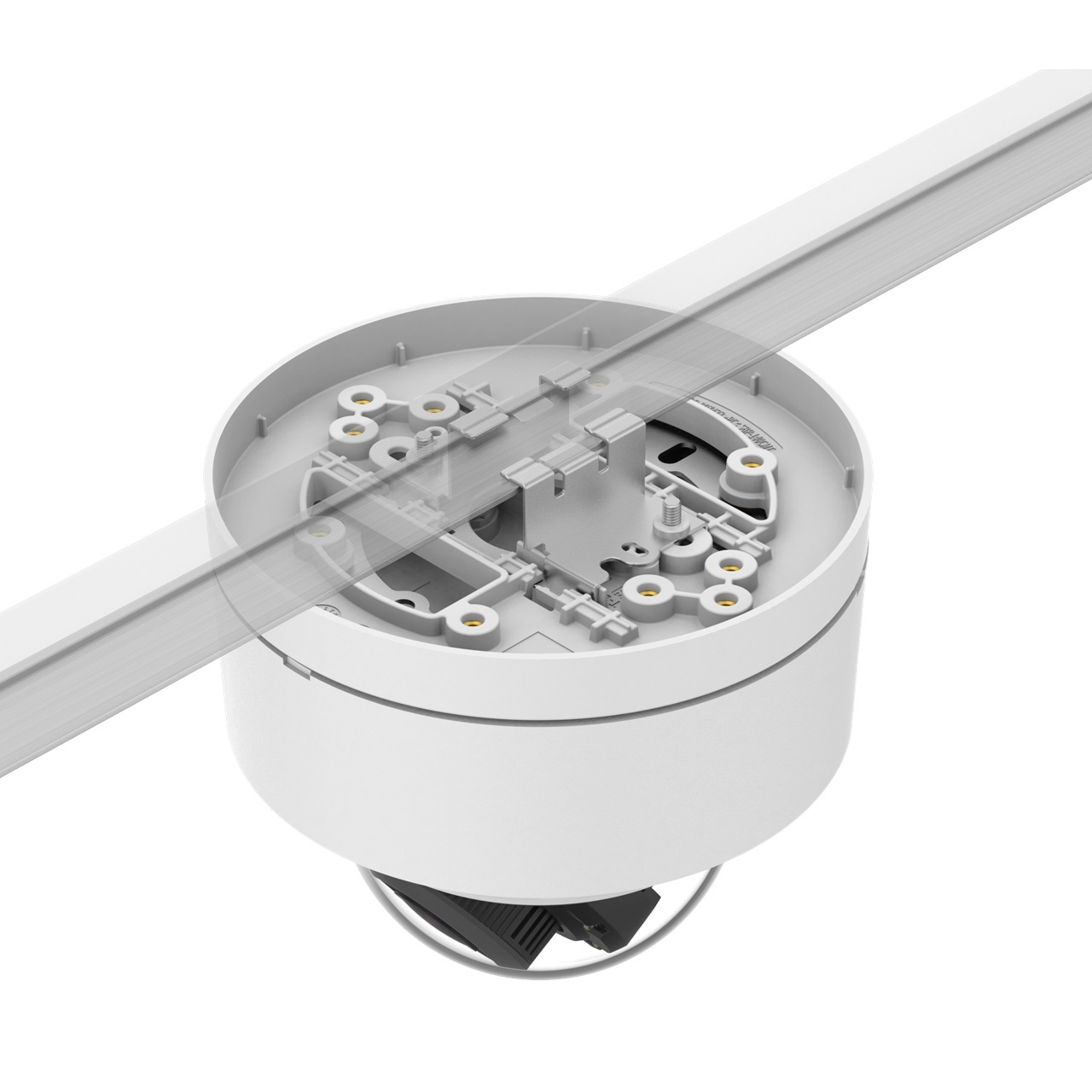

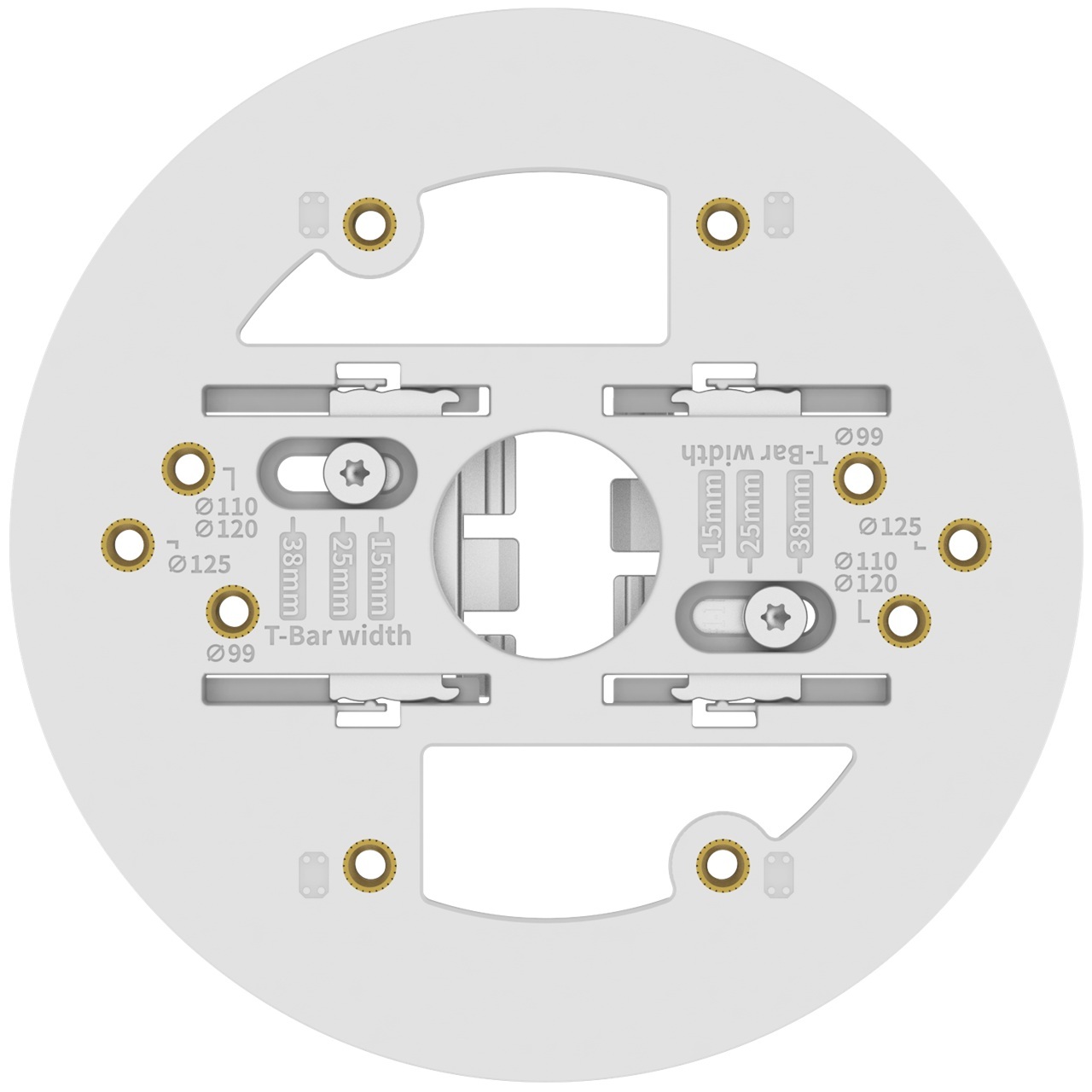

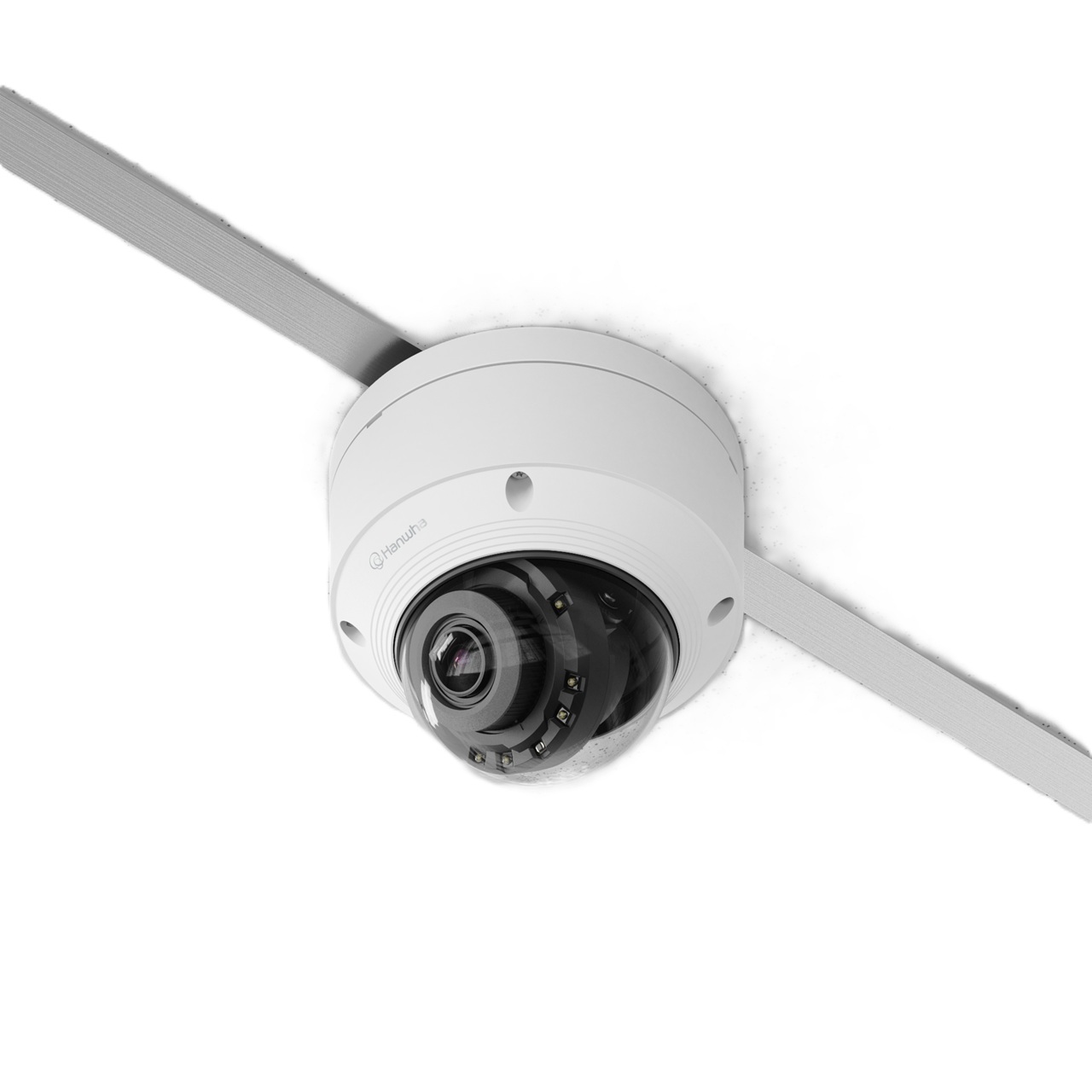

SBP-140CMT Hanwha Vision Tile Grid Ceiling Mount

SKU: SBP-140CMT
Brand: Hanwha Vision

Tile Grid Ceiling Mount

Features:

  • Tile Grid Ceiling Mount Compatible with QND-6011/6021, QND-8011/8021 QNF-8010/9010, QND-6012R/6022R/6082R, QNV-C9011R/C8011R/C8012, LND-6012R/6022R/6072R, QNE-8011R/8021R, ANE-L6012R/L7012R/L7012L, QNV-C8083R/C9083R, XND-8082RV/9082RV, X plus indoor dome, P AI indoor dome.
NDAA
More details...
MPN: SBP-140CMT
EAN: 8801089223845
MSRP Price: $155.00
Web Price$155.00
Add to List
DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.
Become a DWG Dealer → DWG Dealer Sign In



Product Details

Specifications

Environmental

  • Operating Temperature / Humidity - -10°C~+45°C (+14°F~+113°F) / 5~90% RH (non-condensing)
  • Storage Temperature / Humidity - -30°C~+60°C (-22°F~+140°F) / 0~90% RH

Mechanical

  • Color - White
  • Material - PC(Polycarbonate), Aluminum
  • RAL code - RAL9003
  • Product dimensions / weight - ø140x27.5mm (ø5.51"x1.08") / 000g (0.00lb)
  • Mount Screw size - TR20
  • Max. load - 2.5kg (5.51lb)
  • Supported products - QNV-C8011R/C8012/C9011R, QNV-C8083R/C9083R, ANE-L6012R/L7012R/L7012L, XND-C6083RV/C7083RV/C8083RV/C9083RV * For further compatible models, please visit our website or use Toolbox

SBP-140CMT Specifications PDF

Check out some additional items that you may need to purchase with this product:
Check the check boxes next to the additional products that you would like to add to the shopping cart, then click on the "Add to Cart" button above. A check box is not shown if a product requires that you select an option or fill out a field. () indicates a required accessory.
XND-C8083RV Hanwha Vision X Series 4.4-9.3mm Motorized 30FPS @ 6MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

XND-C8083RV Hanwha Vision X Series 4.4-9.3mm Motorized 30FPS @ 6MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

MSRP Price: $1,350.00
Web Price $1,350.00
QNV-C8012 Hanwha Vision Q Series 2.4mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

QNV-C8012 Hanwha Vision Q Series 2.4mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

MSRP Price: $549.00
Web Price $549.00
QNV-C8083R Hanwha Vision Q Series 3.2 - 10.2mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

QNV-C8083R Hanwha Vision Q Series 3.2 - 10.2mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

MSRP Price: $790.00
Web Price $790.00
QNV-C8011R Hanwha Vision Q Series 3.0mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

QNV-C8011R Hanwha Vision Q Series 3.0mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

MSRP Price: $549.00
Web Price $549.00
QNV-C9011R Hanwha Vision Q Series 3mm 30FPS @ 4K Outdoor IR Day/Night WDR Vandal Dome IP Security Camera PoE

QNV-C9011R Hanwha Vision Q Series 3mm 30FPS @ 4K Outdoor IR Day/Night WDR Vandal Dome IP Security Camera PoE

MSRP Price: $649.00
Web Price $649.00
ANE-L6012R Hanwha Vision 3mm 30FPS @ 2MP Outdoor IR Day/Night WDR Turret IP Security Camera PoE

ANE-L6012R Hanwha Vision 3mm 30FPS @ 2MP Outdoor IR Day/Night WDR Turret IP Security Camera PoE

MSRP Price: $250.00
Web Price $250.00
ANE-L7012R Hanwha Vision 3mm 30FPS @ 4MP Outdoor IR White light Day/Night WDR Flateye IP Security Camera PoE

ANE-L7012R Hanwha Vision 3mm 30FPS @ 4MP Outdoor IR White light Day/Night WDR Flateye IP Security Camera PoE

MSRP Price: $270.00
Web Price $270.00
ANE-L7012L Hanwha Vision 3mm 30FPS @ 4MP Outdoor IR White light Day/Night WDR Flateye IP Security Camera PoE

ANE-L7012L Hanwha Vision 3mm 30FPS @ 4MP Outdoor IR White light Day/Night WDR Flateye IP Security Camera PoE

MSRP Price: $270.00
Web Price $270.00

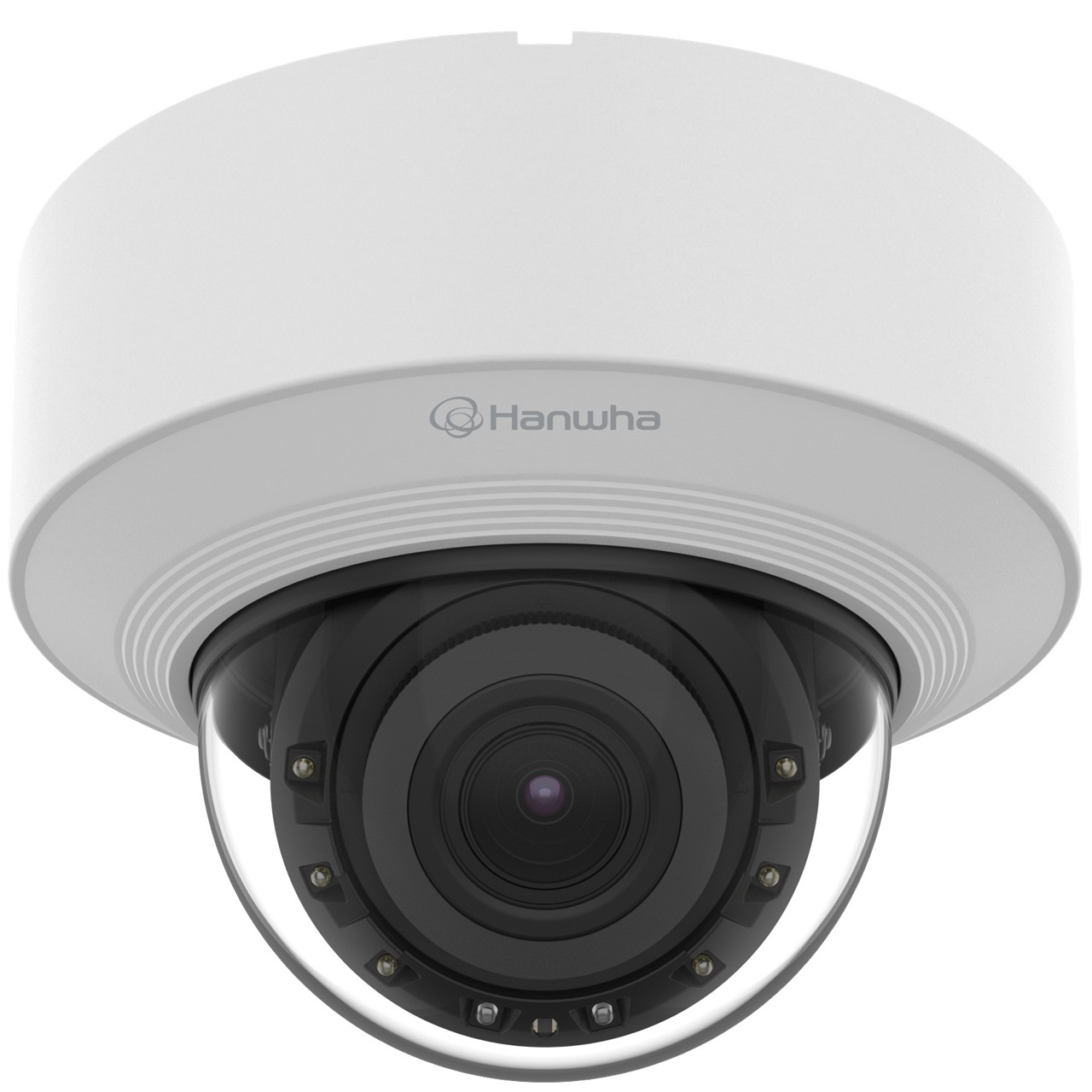

XND-C6083RV Hanwha Vision X Series 2.8-12mm Motorized 60FPS @ 2MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE
