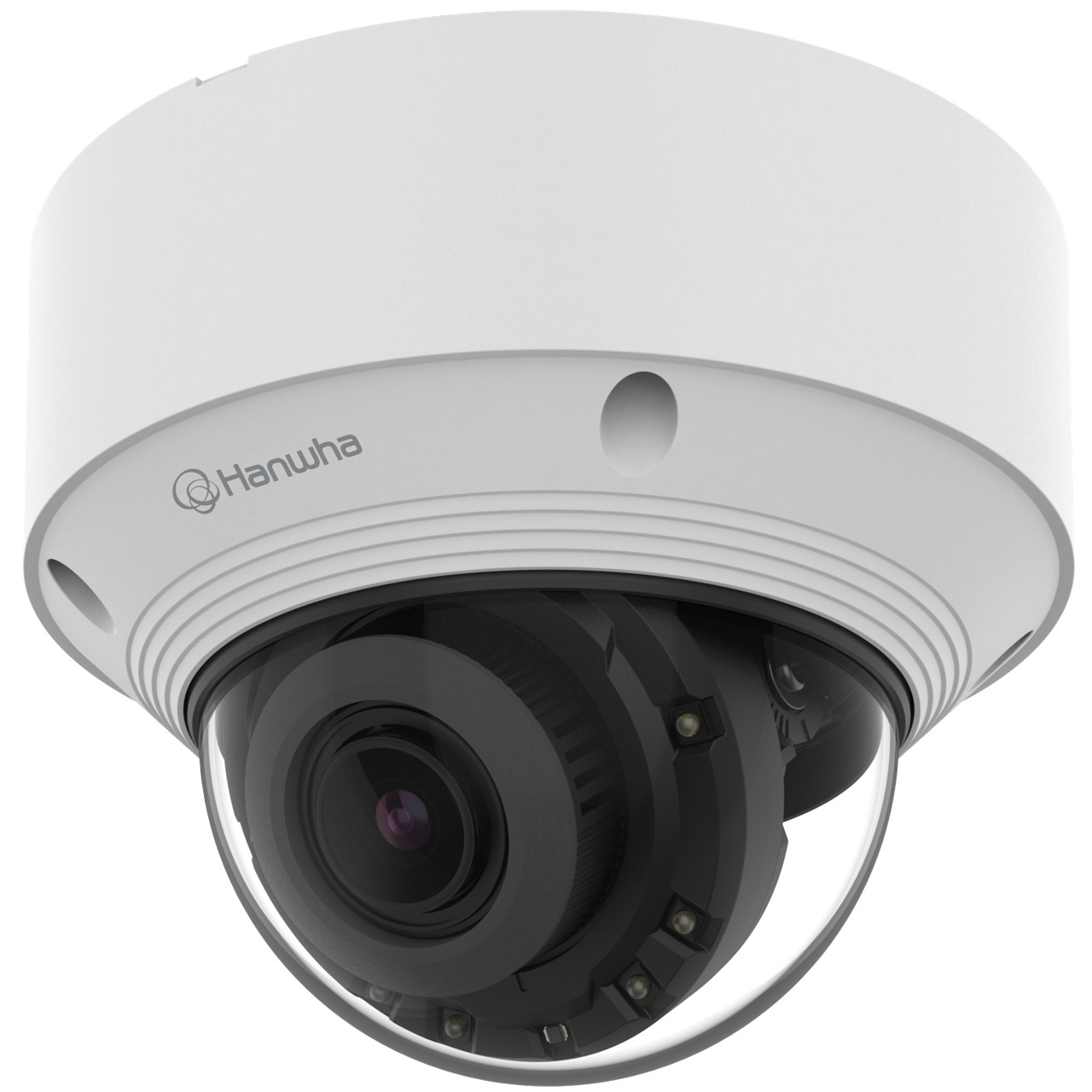

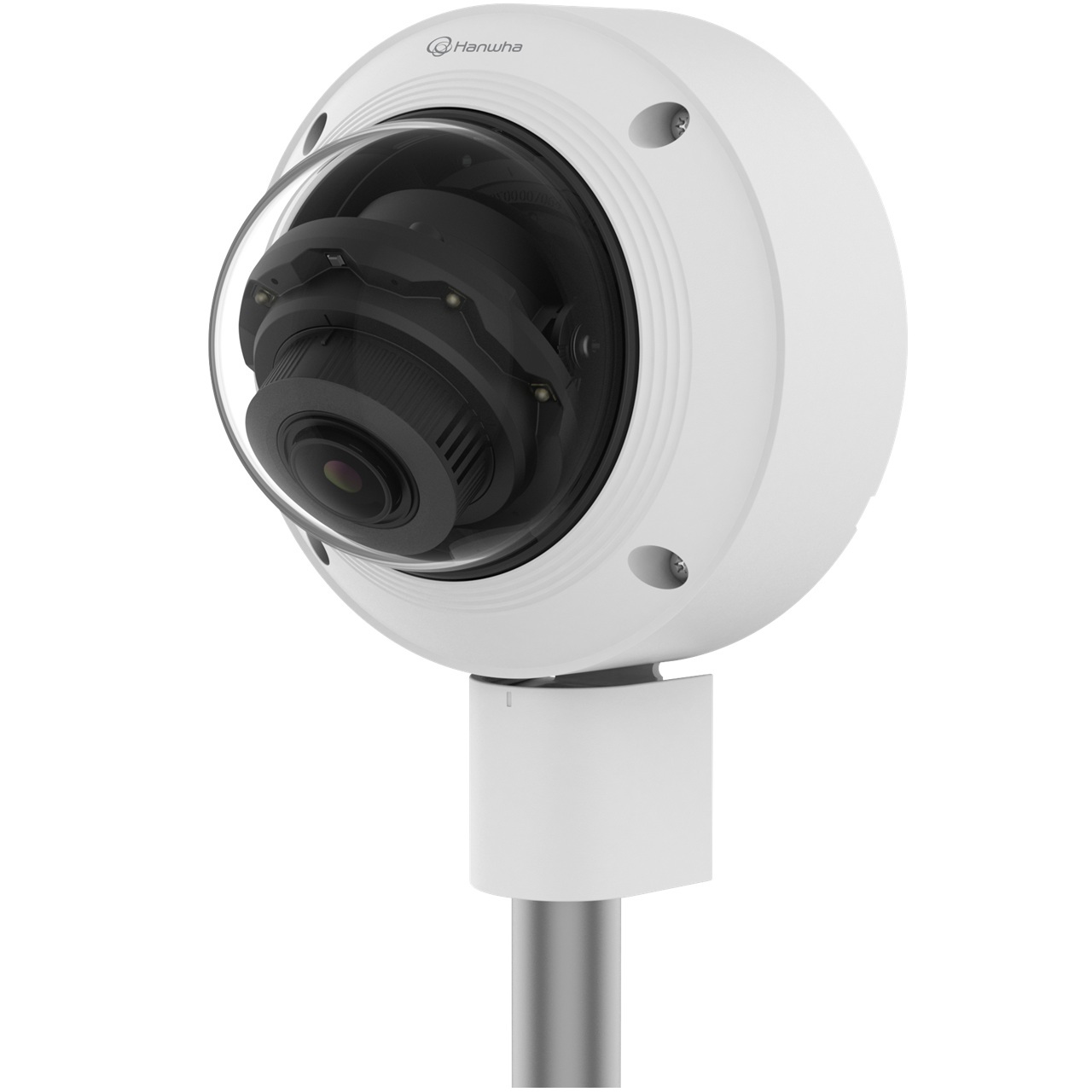

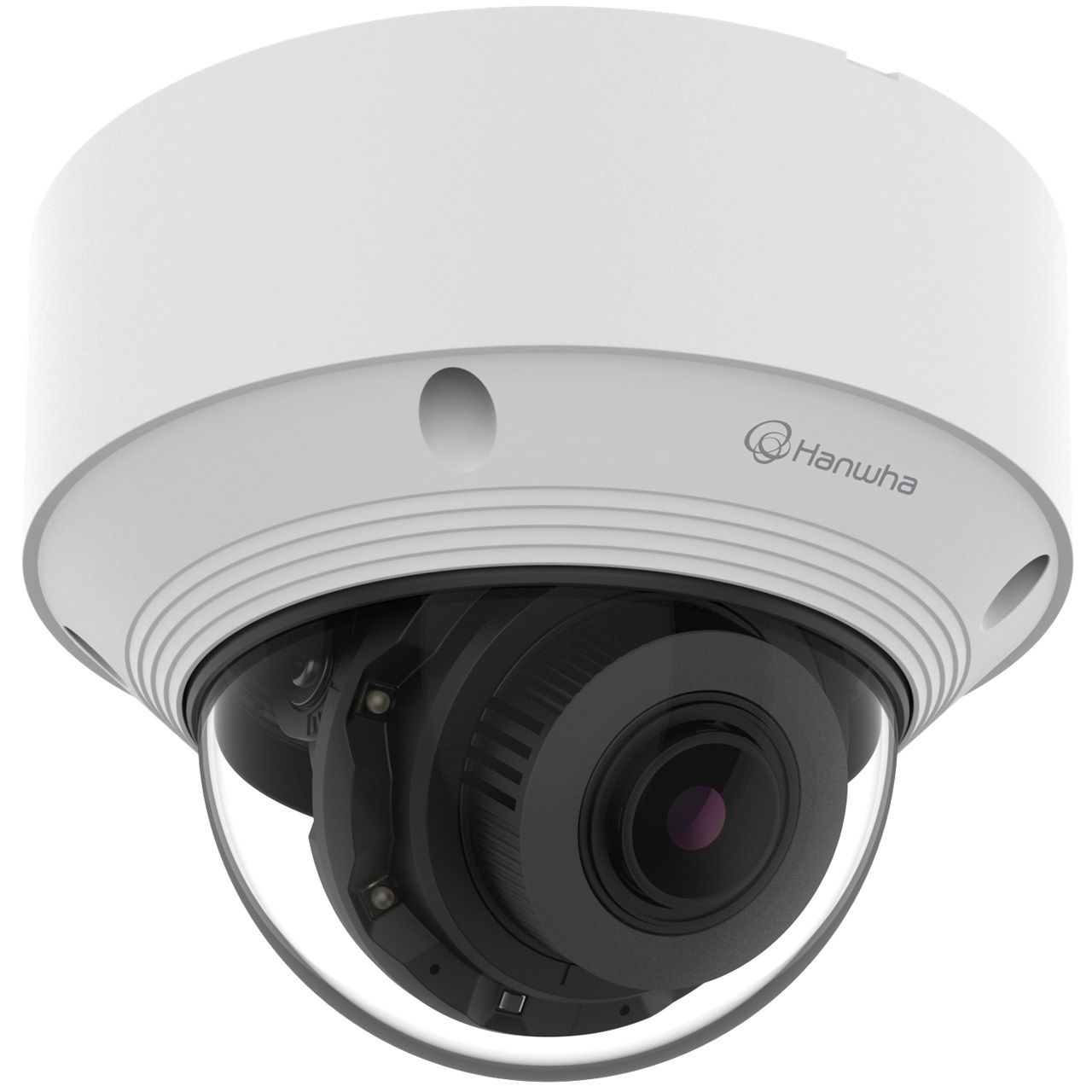

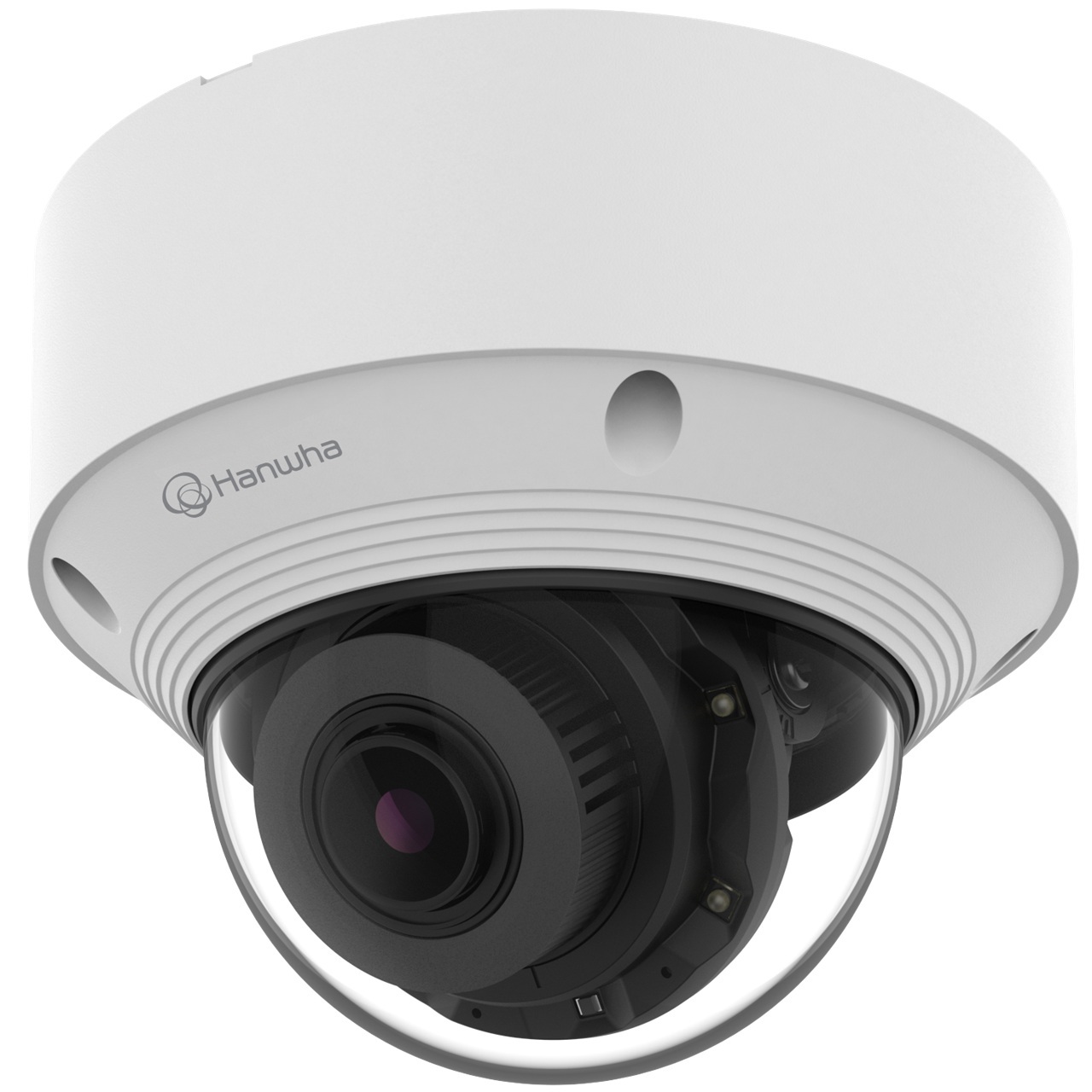

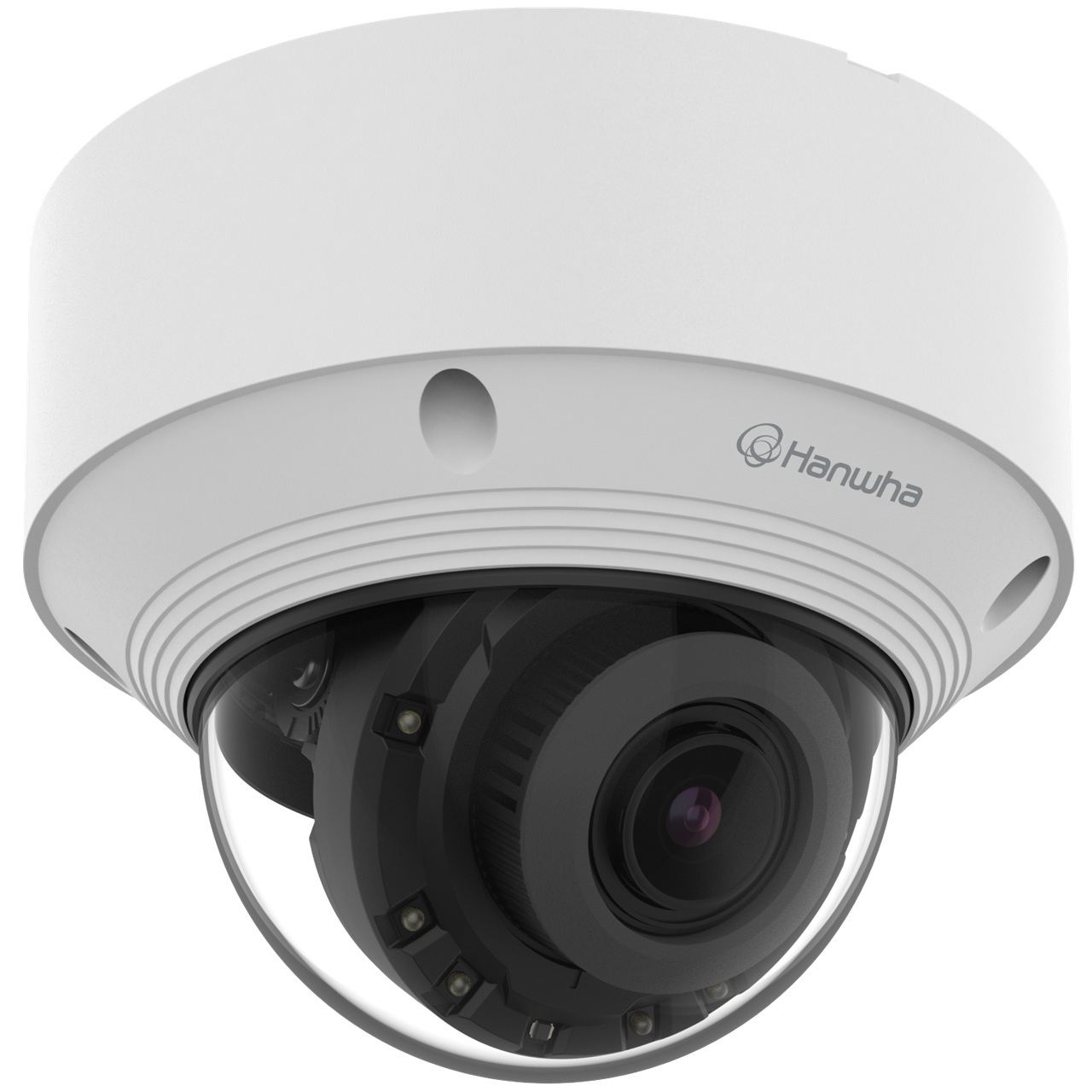

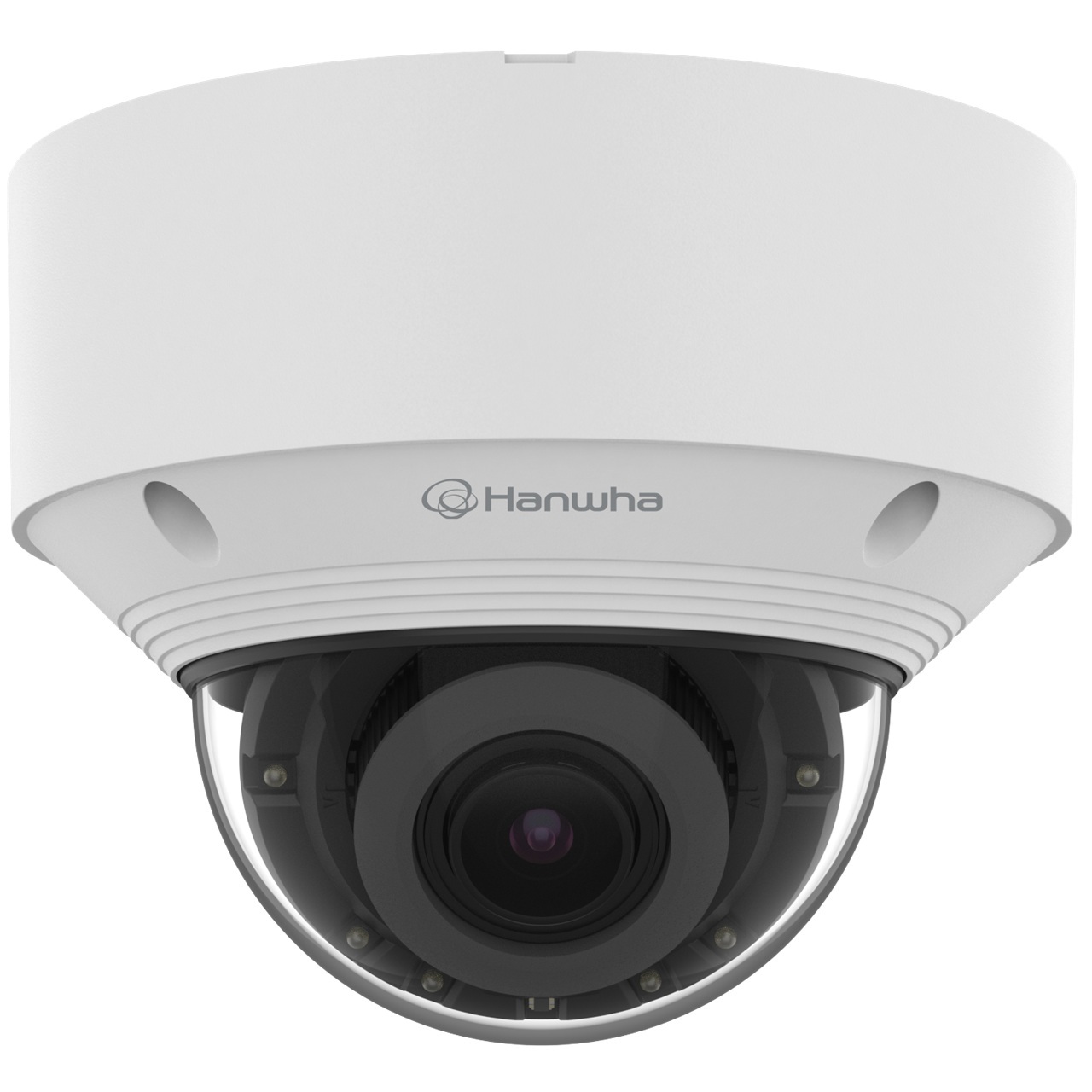

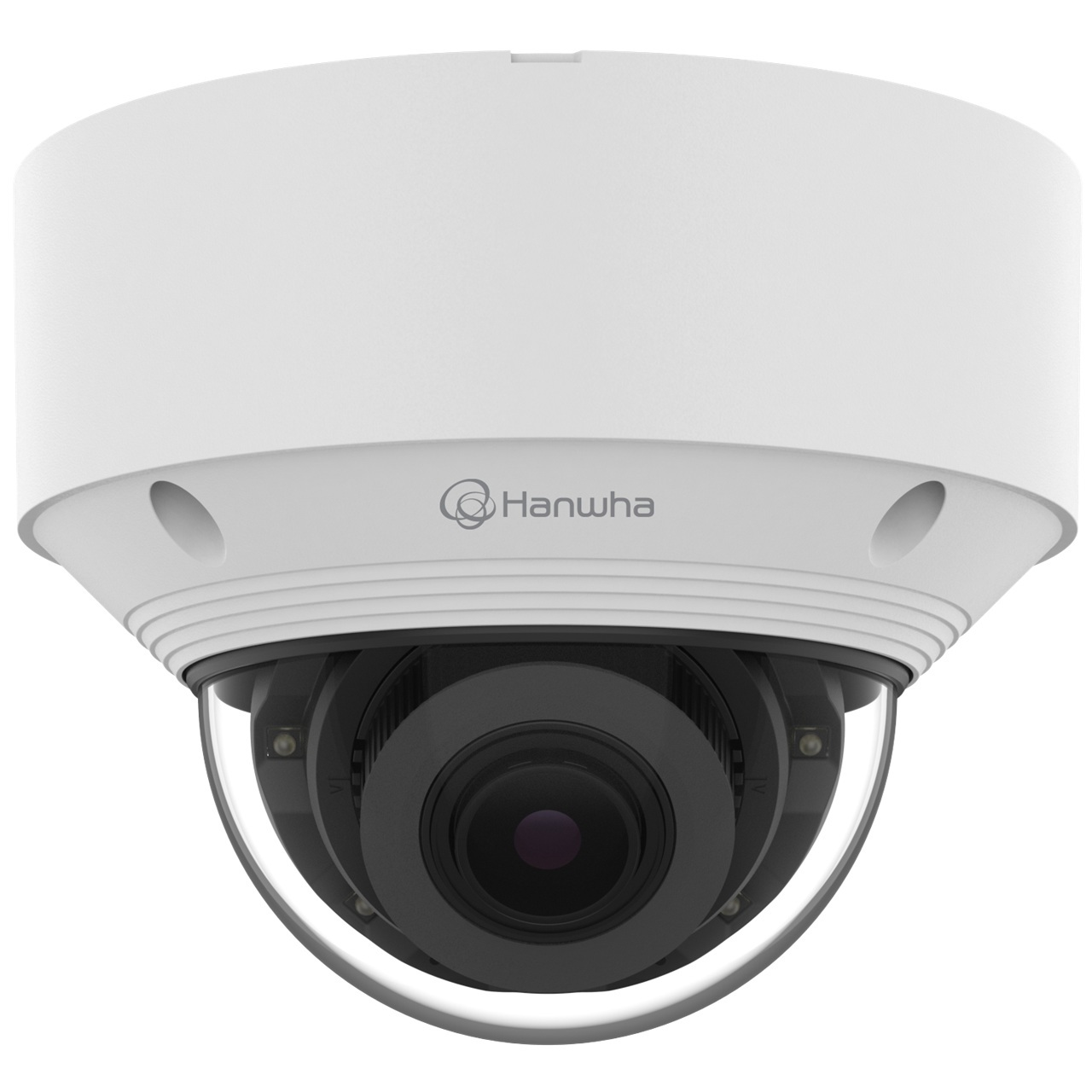

QNV-C8083R Hanwha Vision Q Series 3.2 - 10.2mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@5MP Max. 5fps)
• Min. Illumination - Color(1/30sec, 30IRE)0.07,BW: (1/30sec, 30IRE), 0.007
• Video Out - USB: Micro USB Type B

Lens

• Focal Length (Zoom Ratio) - 3.2~10.2mm(3.2x)
• Max Aperture Ratio - F1.6(Wide)~F3.1(Tele)
• Angular Field of View - H: 95°(Wide)~29°(Tele) V: 69°(Wide)~21°(Tele) D: 126°(Wide)~36°(Tele)
• Min. Object Distance - 1.2m (3.93ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris(IR corrected)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350°/-35°~70°/0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRâ…¤, WiseNRâ…¡(Based on AI engine)
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones, Color/Option - Gray, Green, Red, Blue, Black, White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker 1/5~1/12,000sec
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Alarm Interface - Input 1ea / Output 1ea others Support alarmI/O through an optional cable
• Alarm Triggers - Analytics, Network disconnect, Alarm input MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback, MQTT subscription
• Audio In - Selectable(mic in/line in), Support audio cable as optional
• Audio Out - Line out, Support audio cable as optional
• Light Type - IR LED
• Light Viewable Length - 30m(98.42ft)
• IR Wavelength - 850nm

Analytics

• Classified object type: - Person/Vehicle
• Attributes: - Vehicle(Type:car/bus/truck/motorcycle/bicycle)
• Thumbnail - DetectionShot
• Analytics events - based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Motion detection Normal - Defocus detection, Tampering, Virtual area(Appear/Disappear)
• Business Intelligence - Based on AI Engine People counting, Queue management, Heatmap, Vehicle counting

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual, WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast),MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API), Hanwha vision open platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure)
• Access Control - IP-based access control
• Data Protect - Encryption Credentials,
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt(AES-256)

General

• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 2GB RAM, 1GB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -30°C~+55°C(-22°F ~ +131°F) / 0~100% RH(condensing) Start up should be done at above -30°C, Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / 0~95% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 12.95W, typical 5.3W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions - ø140x110.2mm(ø5.51x4.34")
• Weight - 875g(1.93 lb)
• Compatible Gangbox - Single, Double, 4" Octagon

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 42.7m(140.20ft) / Tele: 186.9m(613.28ft)
• Observe (63PPM/ 19PPF) - Wide: 17.2m(56.08ft) / Tele: 75.4m(245.31ft)
• Recognize (125PPM/ 38PPF) - Wide: 8.5m(28.04ft) / Tele: 37.4m(122.66ft)
• Identify (250PPM/ 76PPF) - Wide: 4.3m(14.02ft) / Tele: 18.7m(61.33ft)
