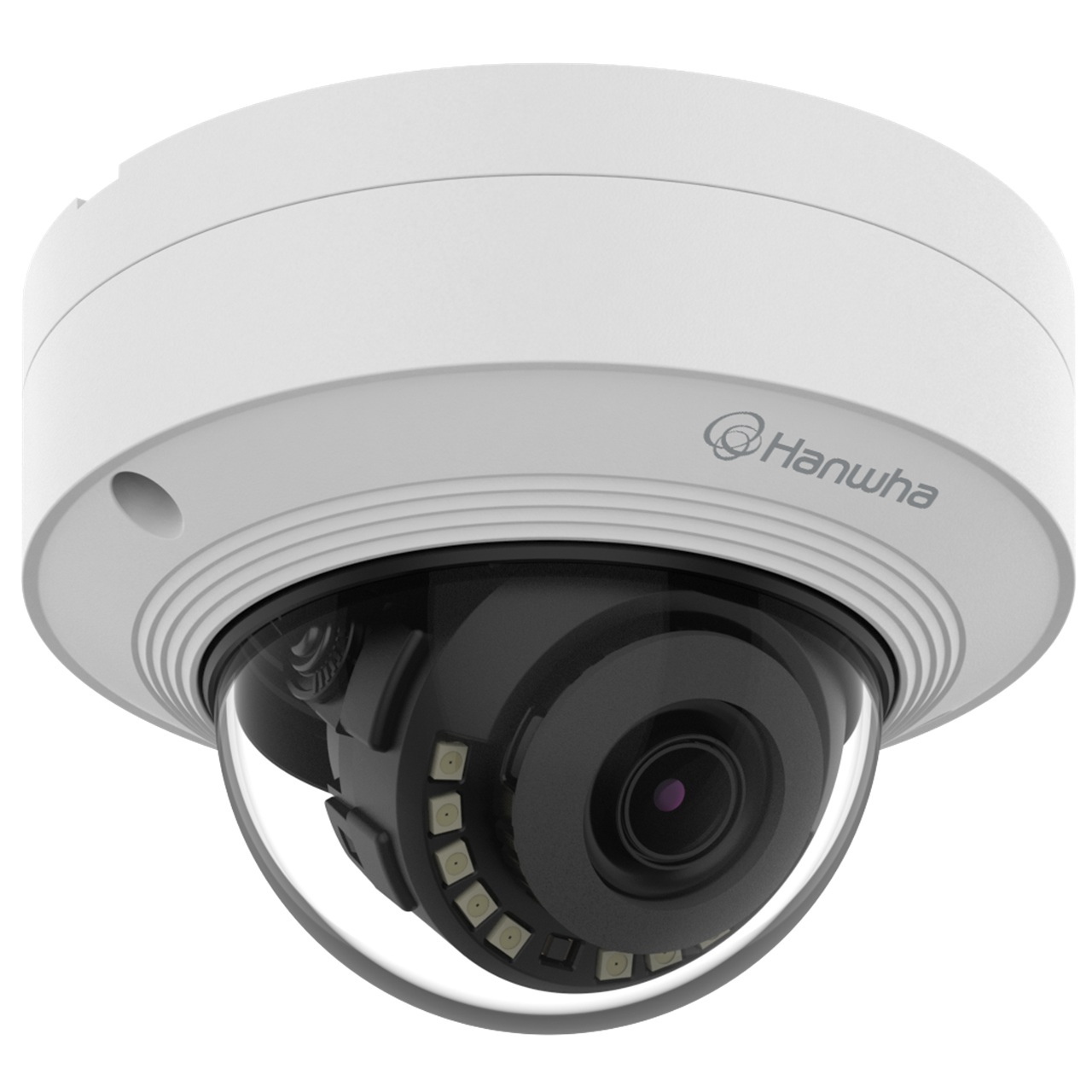

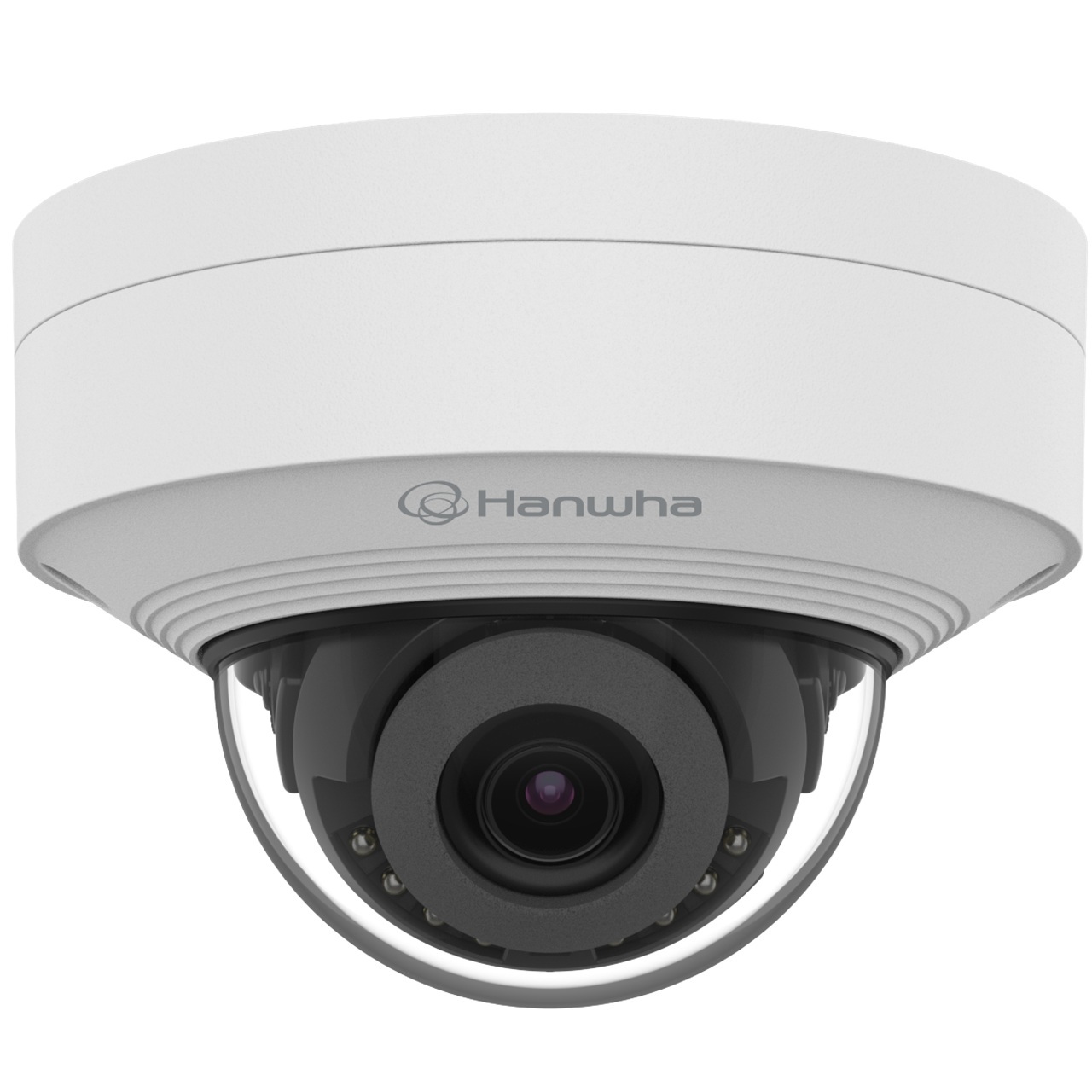

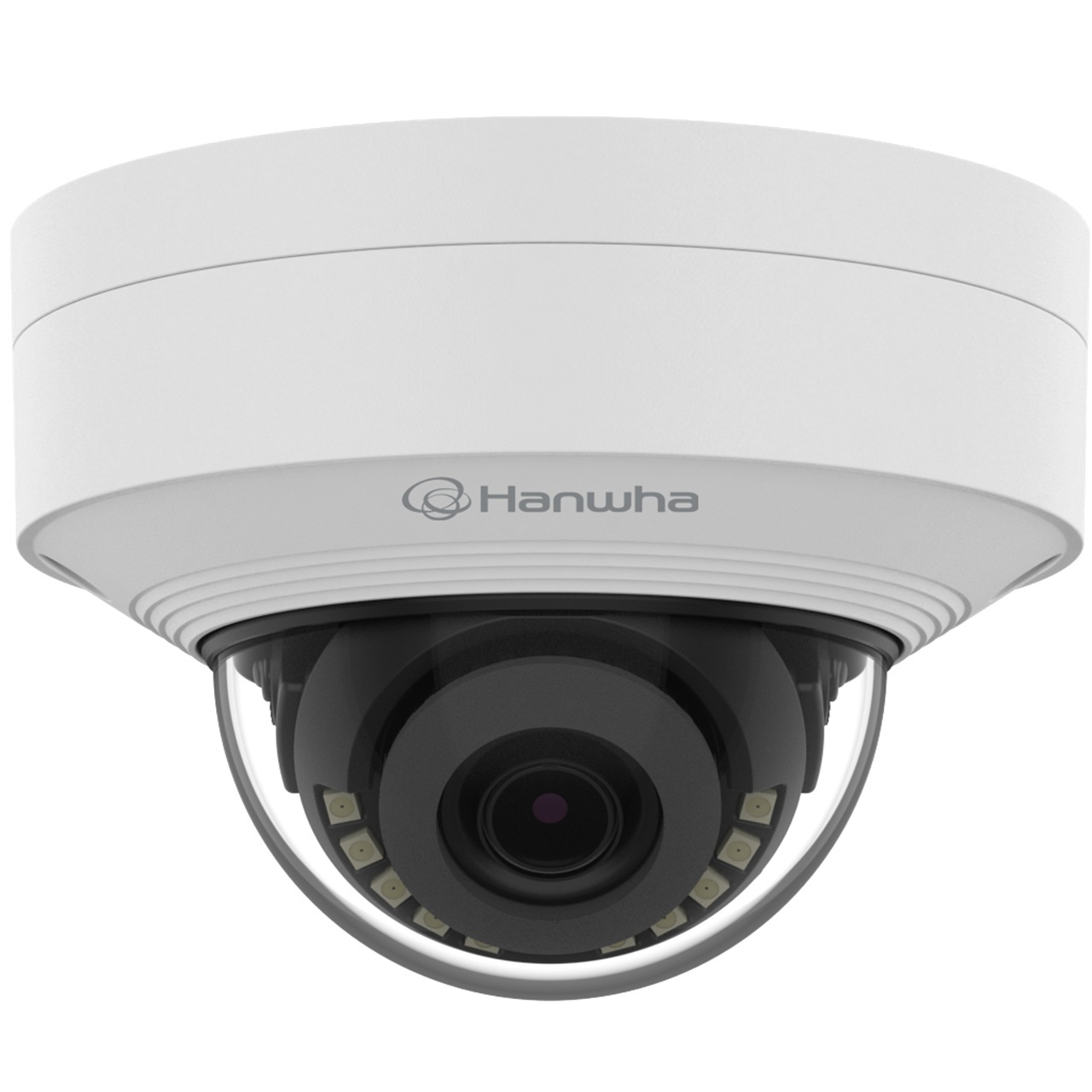

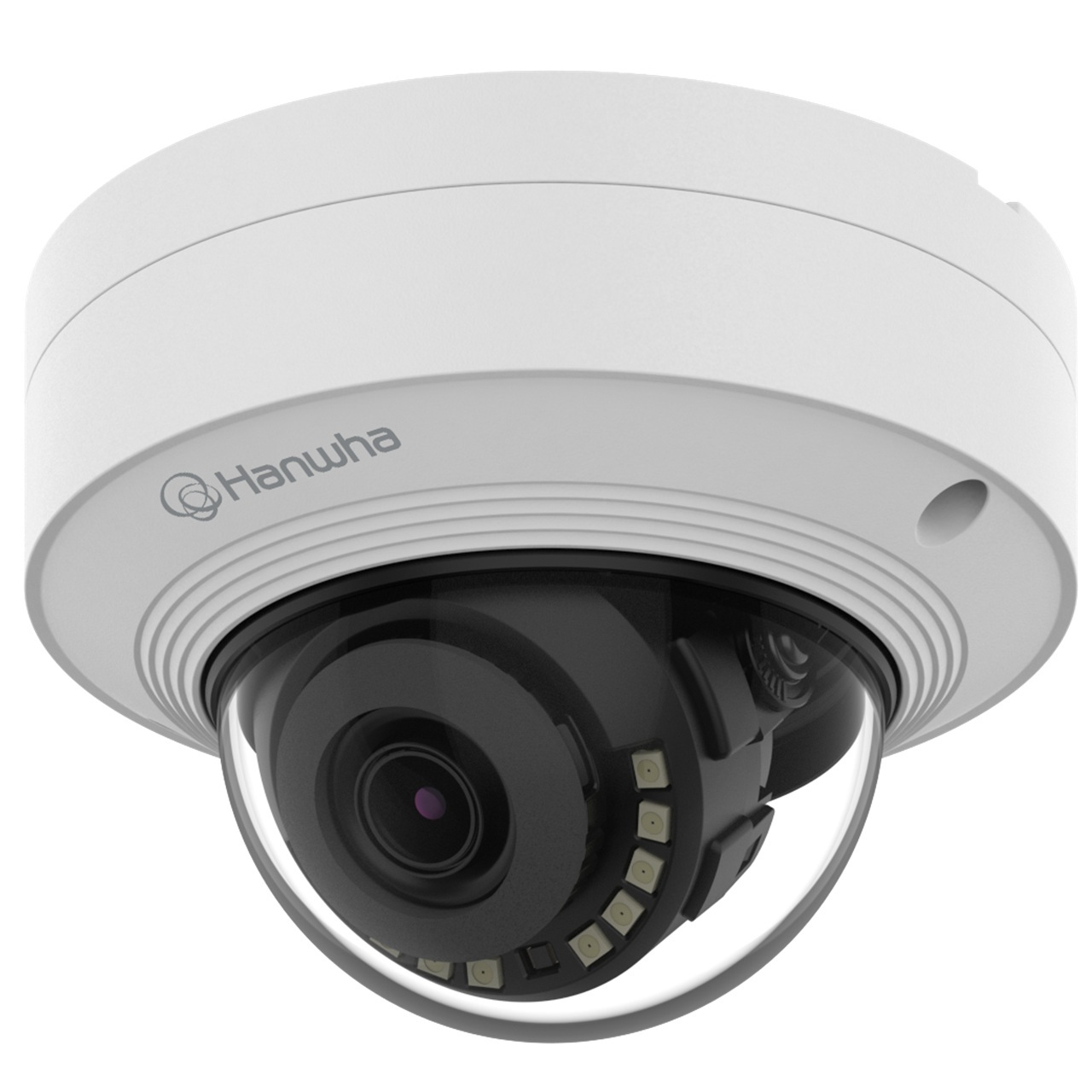

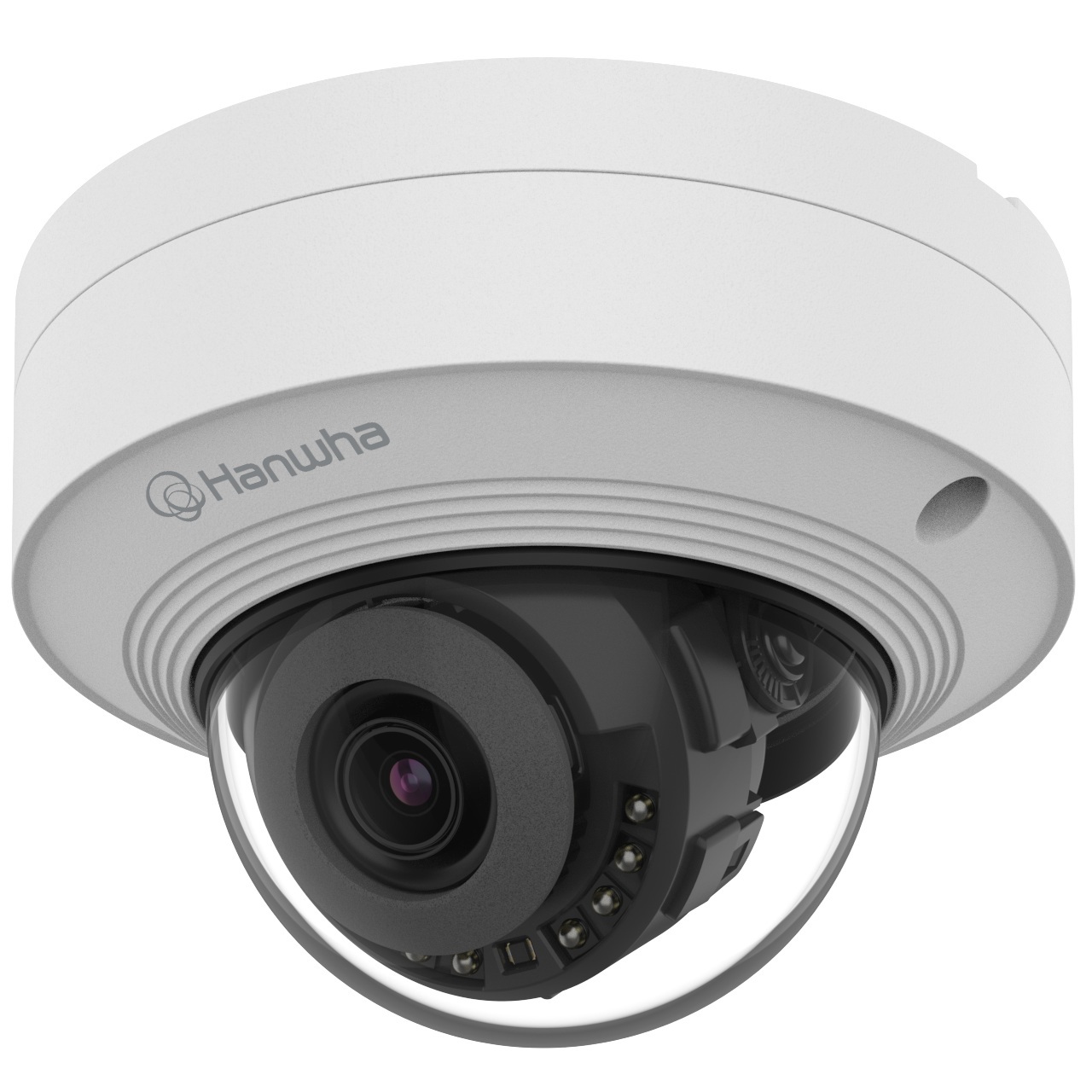

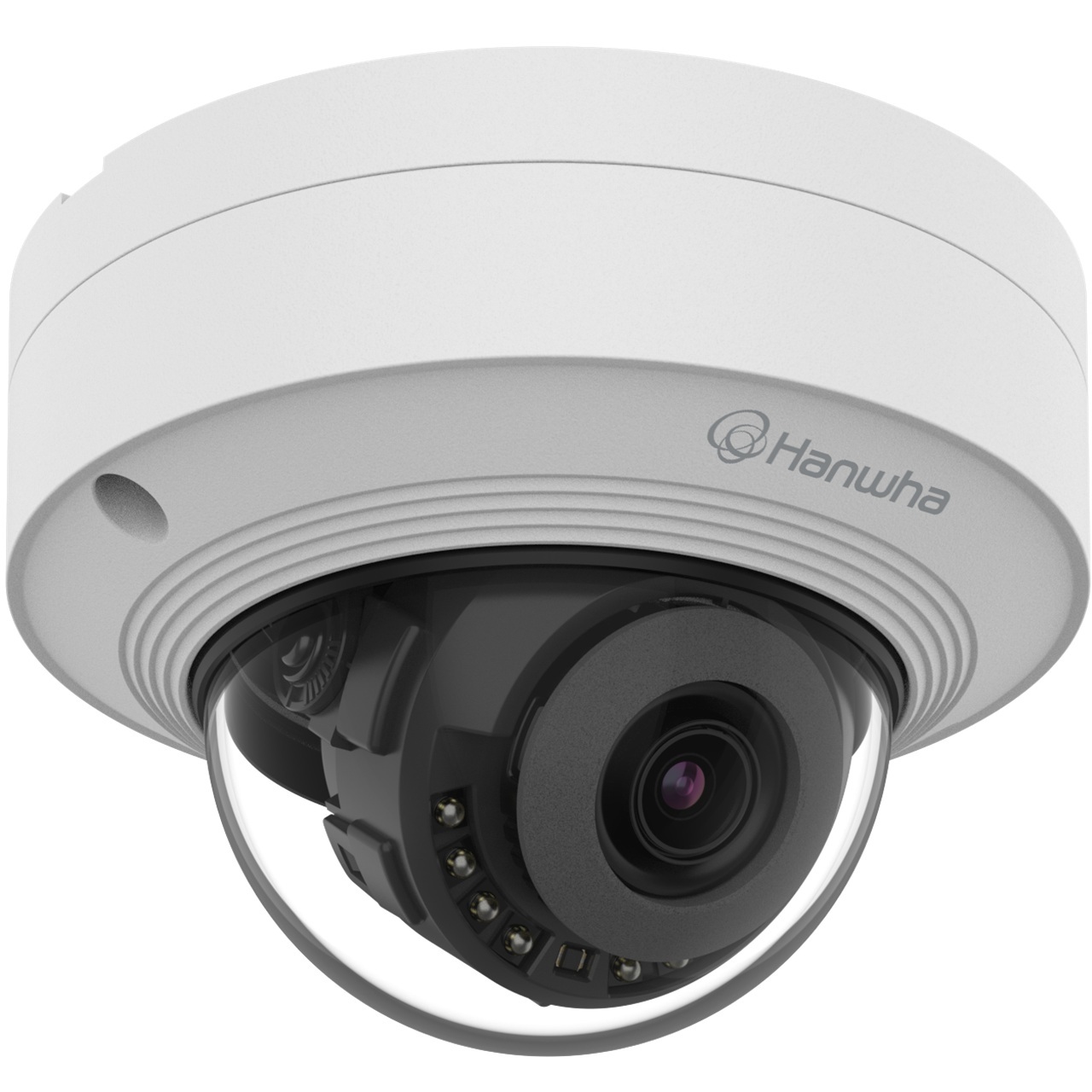

QNV-C9011R Hanwha Vision Q Series 3mm 30FPS @ 4K Outdoor IR Day/Night WDR Vandal Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: 30fps(@8MP Max. 5fps)
• Min. Illumination - Color(1/30sec 30IRE) 0.03, BW(1/30sec, 30IRE) 0.003
• Video Out - USB: Micro USB Type B

Lens

• Focal Length (Zoom Ratio) - 3.0
• Max. Aperture Ratio - F1.6
• Angular Field of View - H : 108°, V : 59° D : 127°
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Fixed
• Lens Type - Fixed iris
• Mount Type - M12

Pan / Tilt / Rotate

• Pan/ Tilt / Rotate Range - 0°~350°/-35°~70°/0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range (dB) - 120
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Motion Detection - 8ea, 8 Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones, Color / Option Gray, Green, Red, Blue , Black,White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(1/5~1/12,000sec)
• Video Rotation - Flip, mirror, Hallway view(90Ëš/270Ëš)
• Alarm Triggers - Analytics, Network disconnect, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - MQTT publication
• Light Type - IR LED
• Light Viewable Length - IR 20m(65.62ft)
• IR Wavelength - 850nm

Analytics

• Classified Object Type - Person, Vehicle
• Attributes - Vehicle Type(car, bus, truck, motorcycle, bicycle)
• Thumbnail - DetectionShot
• Analytics Events - Based on AI Engine Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Normal Defocus detection, Tampering, Virtual area(Appear/Disappear)
• Business Intelligence - Based on AI Engine People counting, Queue management, Heatmap, Vehicle counting

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Smart Codec - Manual WiseStreamII
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure)
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt(AES-256)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 2GB RAM, 1GB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -40°C~+55°C(-40°F~+131°F) 0~100% RH(condensing) Start up should be done at above -30°C, Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) /0~95% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 8.5W, typical 4.9W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - ø110x77mm(ø4.33x3.03"), 522g(1.15lb)

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart BClassA,ICES-3(A)/NMB-3(A),CE/UKCA - EN55032 Class , EN 50130-4, EN 61000-3-2,EN61000-3-3, VCCI CISPR 32 ClassA,RCMAS-NZSCISPR32 Class A, KS C9832 ClassA ,KSC 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 55.8m(183.07ft)
• Observe (63PPM/ 19PPF) - 22.5m(73.23ft)
• Recognize (125PPM/ 38PPF) -11.2m(36.61ft)
• Identify (250PPM/ 76PPF) - 5.6m(18.31ft)
