Categories > Browse by Brand > Hanwha Vision > Hanwha Vision Accessories > Hanwha Vision Camera Housings

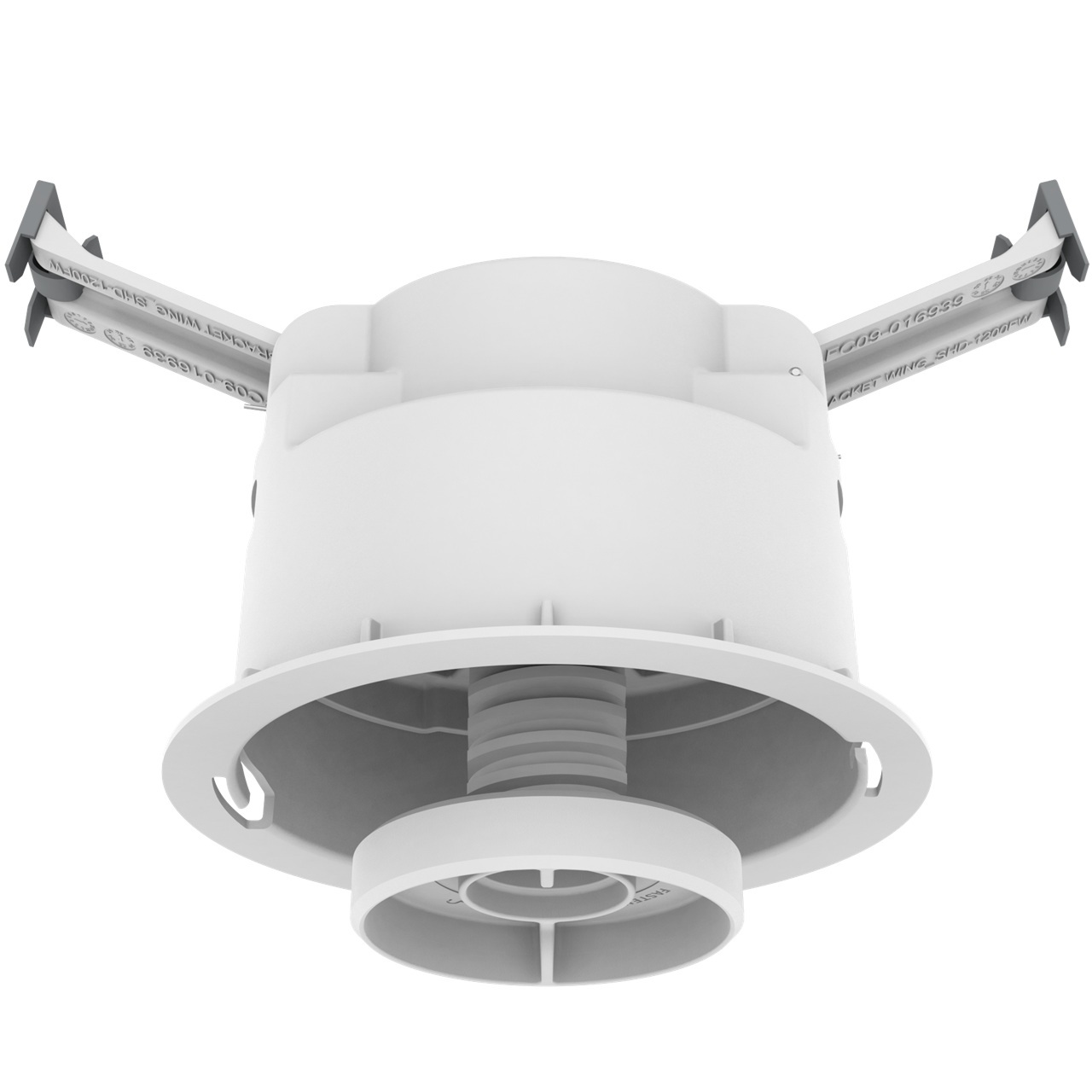

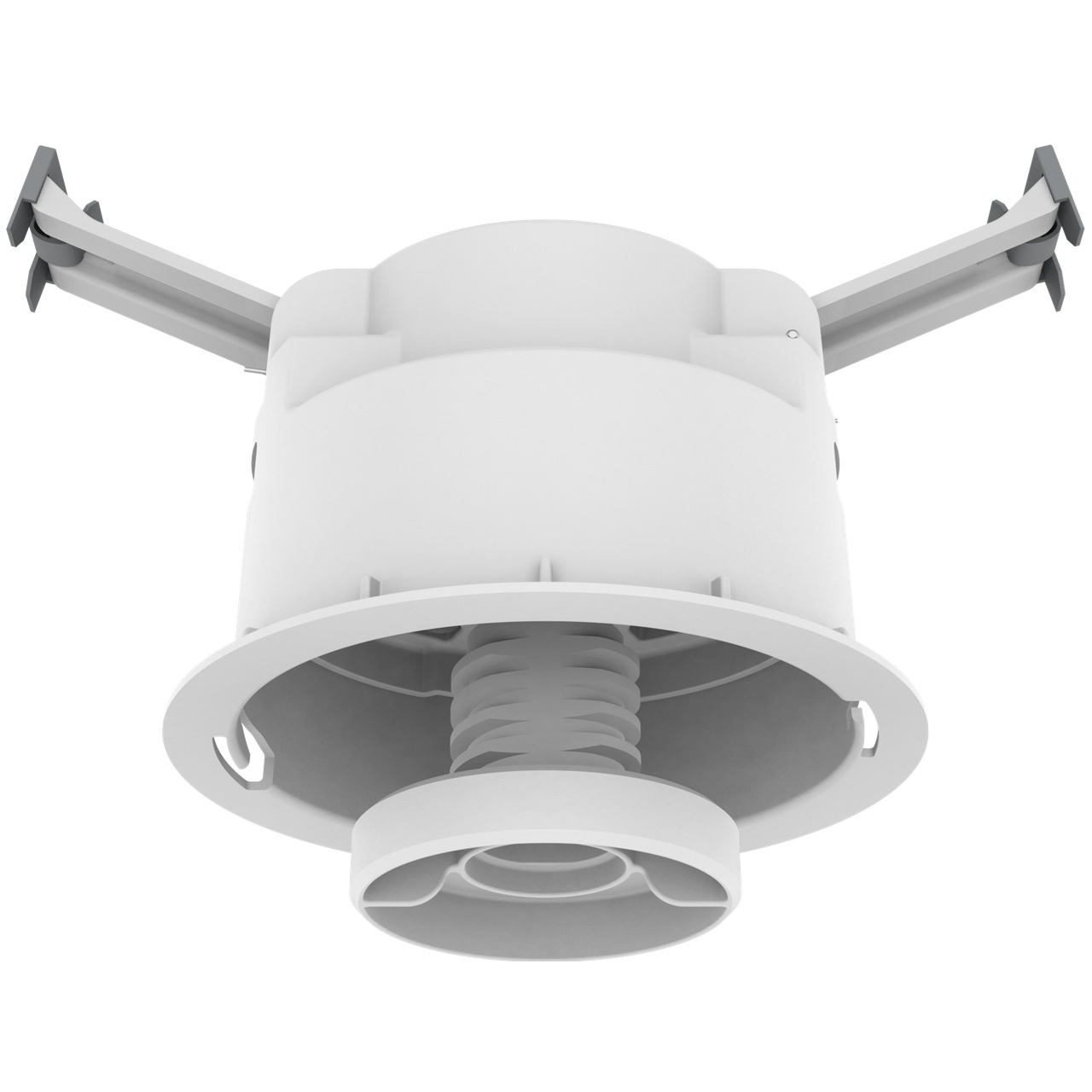

SHD-1100FW Hanwha Vision In-Ceiling Mount

SHD-1100FW Hanwha Vision In-Ceiling Mount	SHD-1100FW Hanwha Vision In-Ceiling Mount	SHD-1100FW Hanwha Vision In-Ceiling Mount
(Click to see larger image and other views)

SHD-1100FW Hanwha Vision In-Ceiling Mount

SHD-1100FW Hanwha Vision In-Ceiling Mount	SHD-1100FW Hanwha Vision In-Ceiling Mount	SHD-1100FW Hanwha Vision In-Ceiling Mount
(Click to see larger image and other views)

SKU: SHD-1100FW

Brand: Hanwha Vision

In-ceiling mount

More details...

MPN: SHD-1100FW
EAN: 8801089232533

MSRP Price: $80.00

Web Price$80.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Mechanical

Color - White
Material - Polycarbonate(PC)
RAL code - RAL9003
Dimensions /Weight - 175x162x147mm(6.89x6.38x5.79") / 310g(0.68lb)
Tile thickness - 10~60mm(0.4~2.4")
Max. load - 0.6kg(1.32lb) * Maximum load of ceiling board: 3kg(6.61lb)
Supported products - QNV-C8011R, QNV-C8012, QNV-C9011R

SHD-1100FW Specifications PDF
