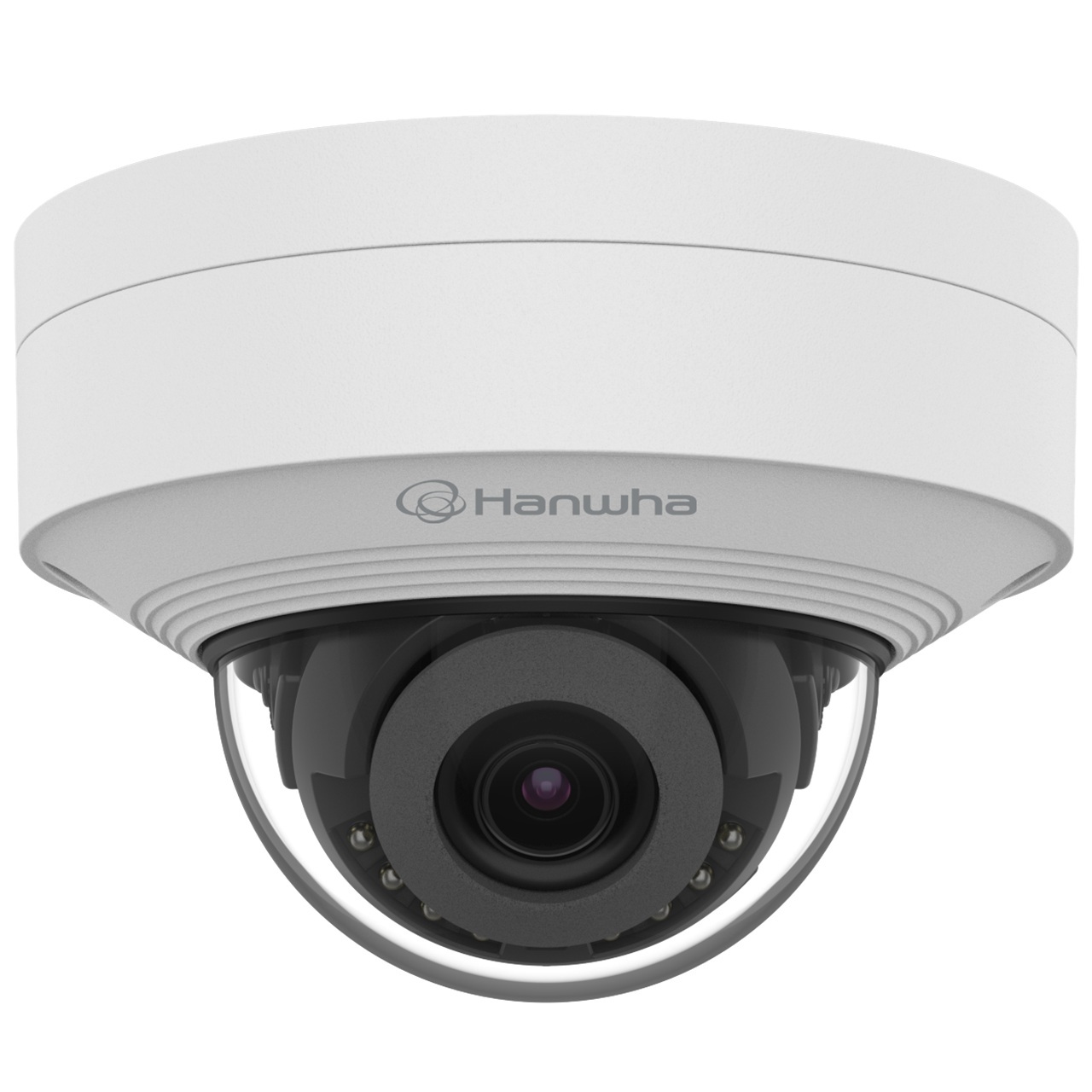

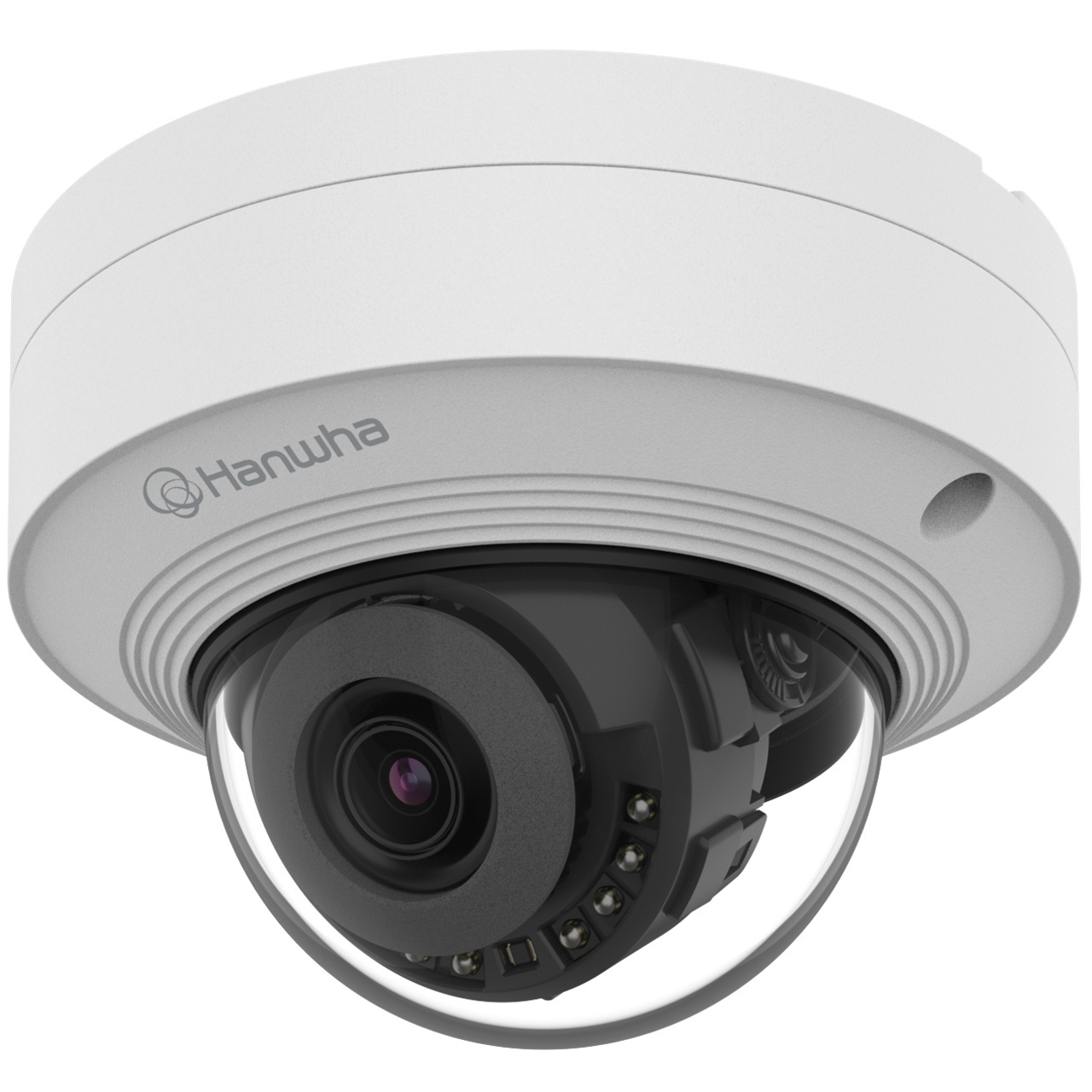

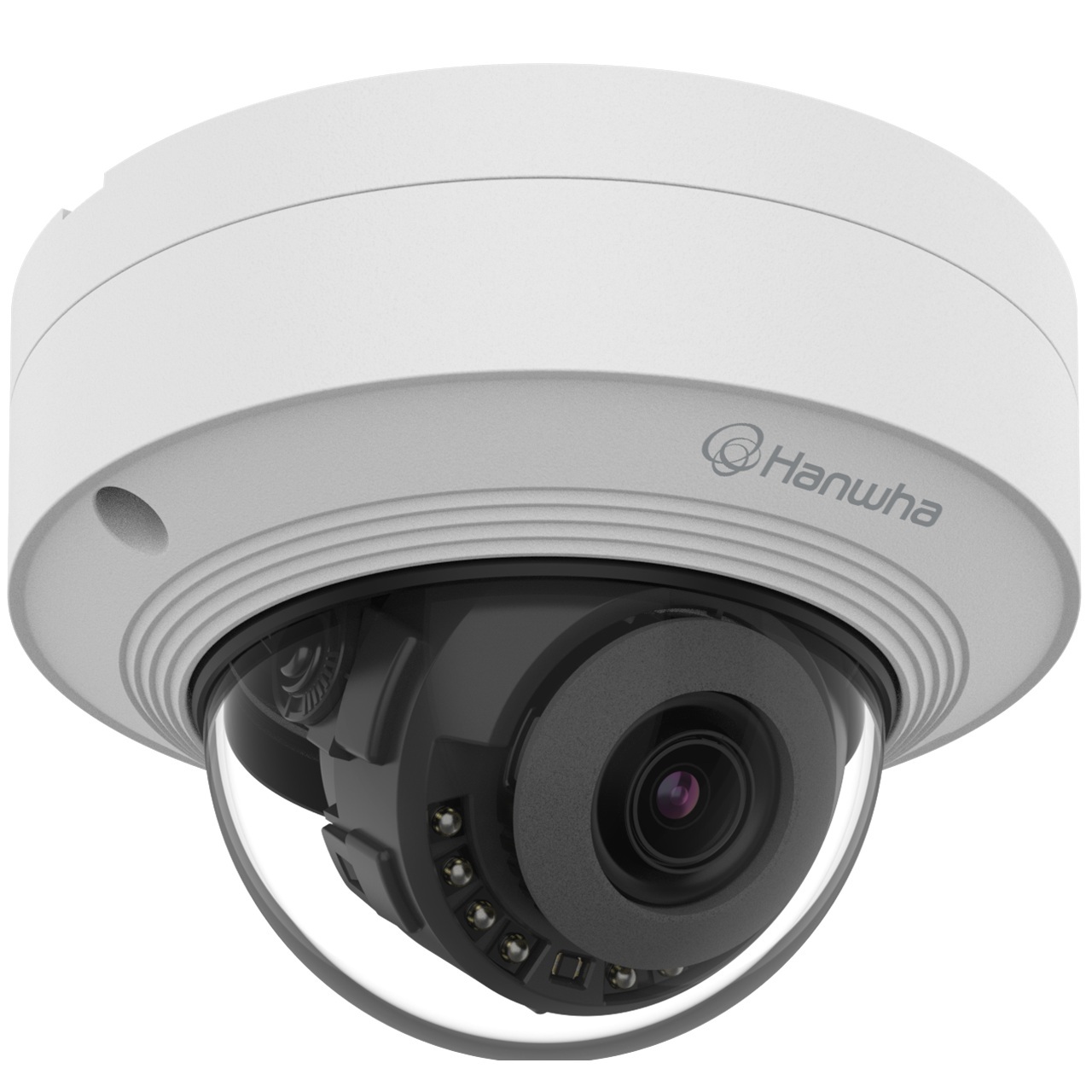

QNV-C8011R Hanwha Vision Q Series 3.0mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@5MP Max. 5fps)
• Min. Illumination - Color: 0.03Lux (F1.6, 1/30sec) BW: 0.003Lux (F1.6, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 3.0mm fixed focal
• Max Aperture Ratio - F1.6
• Angular Field of View - H: 100°/ V: 73°/ D: 129°
• Min. Object Distance - 0.5m (1.64ft)
• Focus Control - Fixed
• Lens Type - Fixed IRIS
• Mount Type - M12

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / -35°~70° / 0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV, WiseNRâ…¡(Based on AI engine)
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point quadrangle zones
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker 1/5~1/12,000sec
• Digital PTZ - Support
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type: Person/Vehicle Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events - Defocus detection, Tampering, Virtual area(Appear/Disappear) * Some of the video analytics only works with people and vehicle detection
• Alarm Triggers - Analytics, Network disconnect
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP)
• IR Viewable Length - 20m(65.62ft)
• IR Wavelength - long-life 850 nm IR LED

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression Format - H.265/H.264: Main/High, MJPEG
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Quality level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API)

Security

• OS / Firmware Protect - Secure boot, Signed firmware, Firmware encryption
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - Access control based on IP address
• Data Protect - Authentication information encryption, ZIP compression encryption
• Audit - User Access/System/Event log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt
• Security Certificate - Secure by default

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 2GB RAM, 1GB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F ~ +131°F) / 0~95% RH * Start up should be done at above -30°C Humidity control /w Air vapor control
• Storage Temperature / Humidity - -50°C~+60°C(-58°F ~ +140°F) / 0~95% RH
• Certification - IP66, IK10, NEMA4X
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 8.5W, typical 4.9W

Mechanical

• Color / Material - White / Aluminum Bubble : Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions - ø110x77mm(ø4.33x3.03")
• Weight - 522g(1.15 lb)
• Compatible Conduit hole / Gangbox - SBD-110GP1 : Single, Double, 4" Octagon (Sold seperately)
• Hanging Mount (Dome) - SBP-120HMW
• Backbox - SBV-140BW

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 43.5m(142.71ft)
• Observe (63PPM/ 19PPF) - 17.5m(57.09ft)
• Recognize (125PPM/ 38PPF) - 8.7m(28.54ft)
• Identify (250PPM/ 76PPF) - 4.3m(14.27ft)
