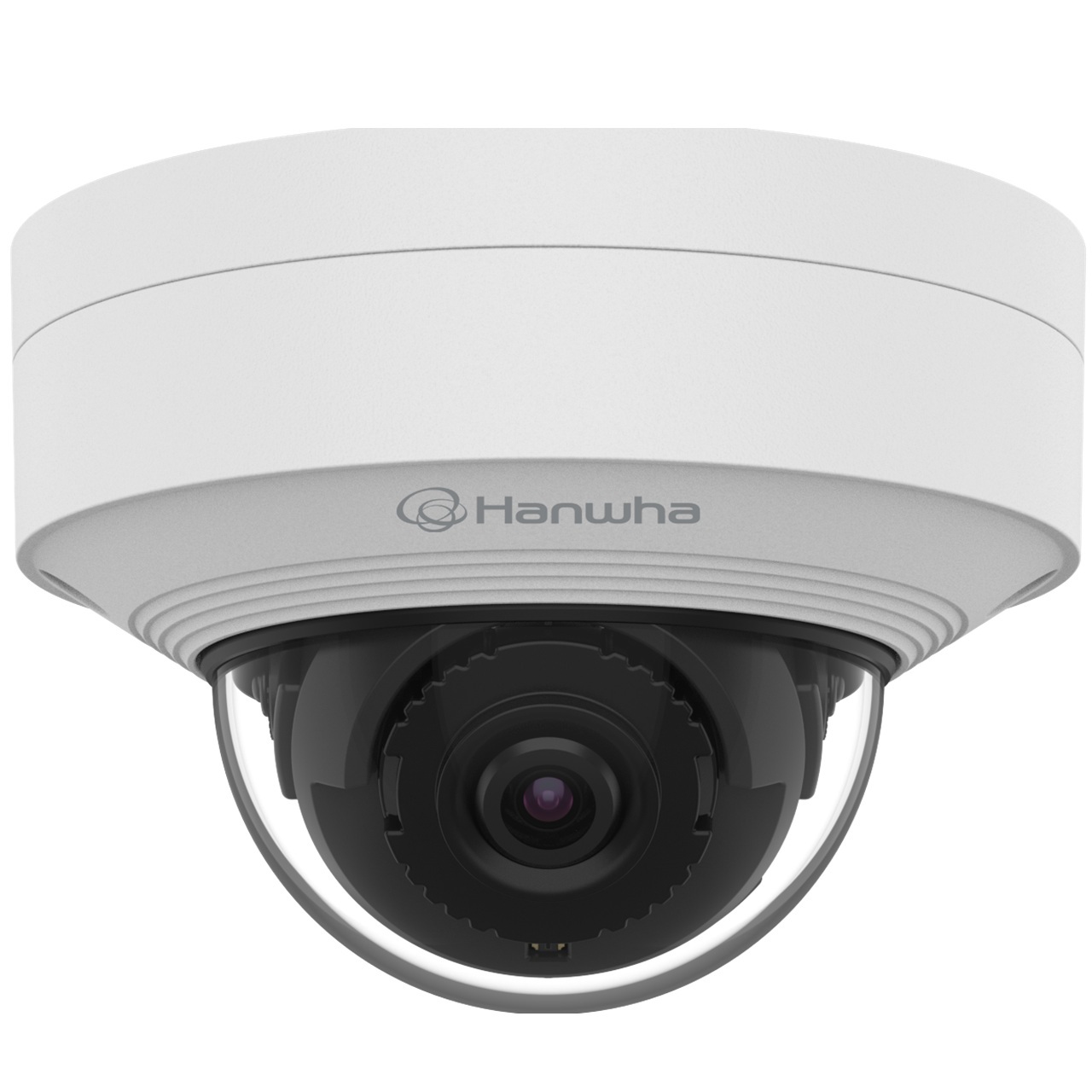

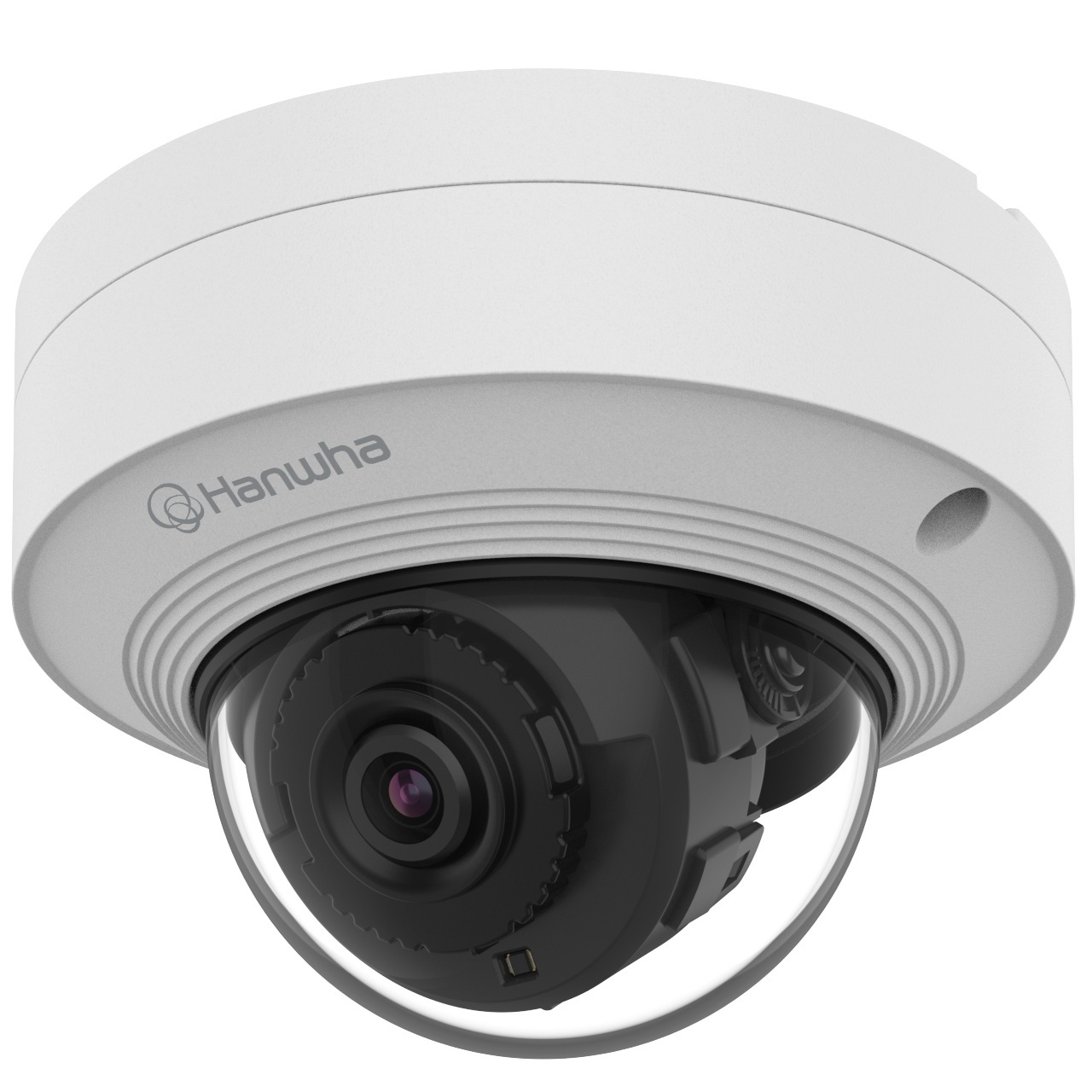

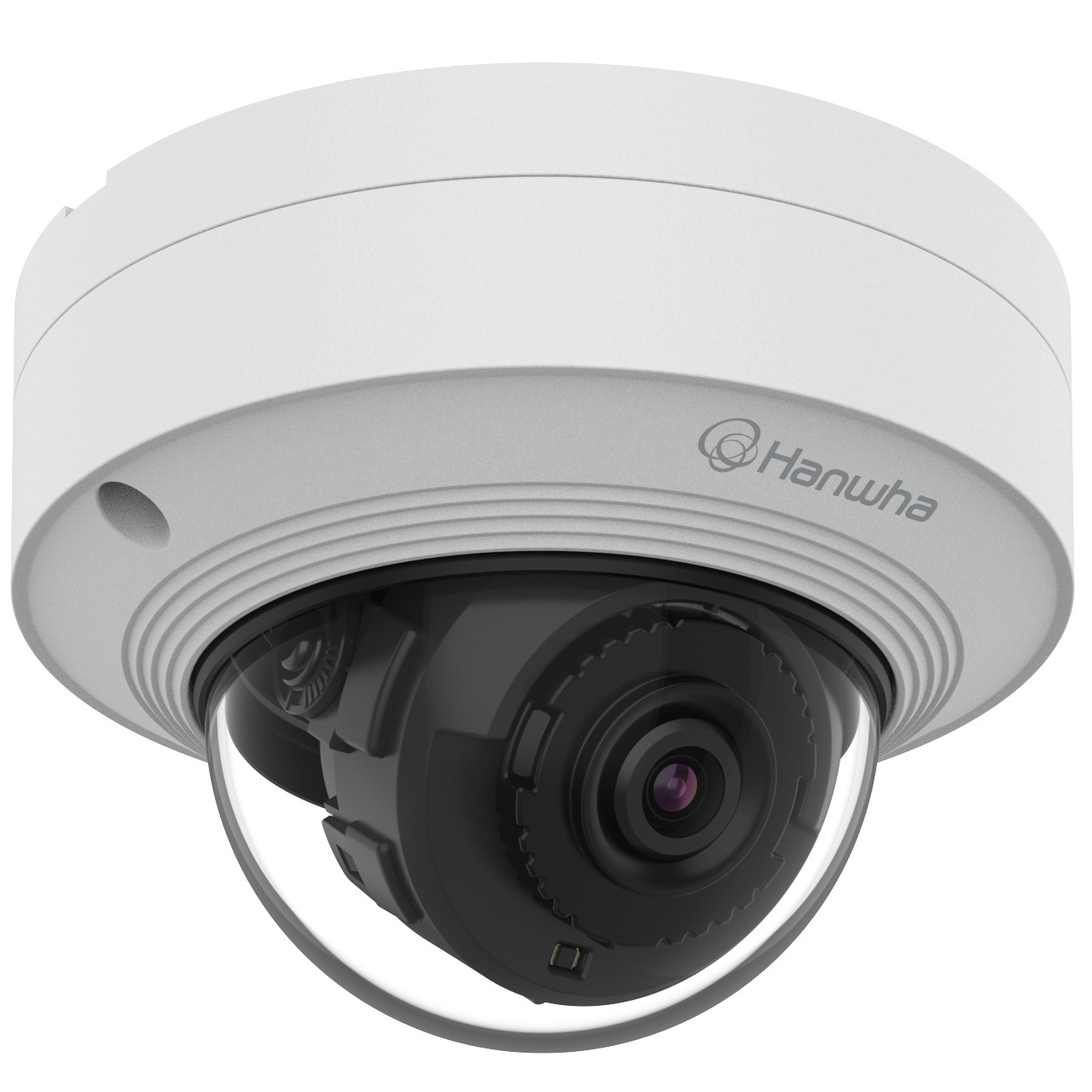

QNV-C8012 Hanwha Vision Q Series 2.4mm 30FPS @ 5MP Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@5MP Max. 5fps)
• Min. Illumination - Color(1/30sec, 30IRE) 0.05, BW(1/30sec, 30IRE) 0.005
• Video Out - USB: Micro USB Type B

Lens

• Focal Length (Zoom Ratio) - 2.4mm
• Max Aperture Ratio - 2.0
• Angular Field of View - H: 123°/ V: 91°/ D: 159°
• Min. Object Distance - 0.5m (1.64ft)
• Focus Control - Fixed
• Lens Type - Fixed IRIS
• Mount Type - M12

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / -35°~70° / 0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV, WiseNRâ…¡(Based on AI engine)
• Motion Detection - 8ea, 8point Polygonal zones
• Privacy Masking - 32ea, 4point quadrangle zones Color/ Option, Gray,Green,Red,Blue,Black,White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker 1/5~1/12,000sec
• Video Rotation - Flip, Mirror, Hallway view(90Ëš/270Ëš)
• Alarm Triggers - Analytics, Network disconnect, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP), MQTT :publication

Analytics

• Classified object type: - Person/Vehicle
• Attributes: - Vehicle(Type:car/bus/truck/motorcycle/bicycle)
• Thumbnail - DetectionShot
• Analytics events - based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Motion detection Normal - Defocus detection, Tampering, Virtual area(Appear/Disappear)
• Business Intelligence - Based on AI Engine People counting, Queue management, Heatmap, Vehicle counting

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression Format - H.265/H.264: Main/High, MJPEG
• Smart Codec - Manual, WiseStreamâ…¢
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API), Hanwha Vision Open Platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure)
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access/System/Event log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt(AES-256)

General

• Edge Storage - Micro SD/SDHC/SDXC 1slot 256GB
• Memory - 2GB RAM, 1GB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C~+55°C(-40°F ~ +131°F) / 0~100% RH(condensing) * Start up should be done at above -30°C Humidity control /w Air vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F ~ +140°F) / 0~95% RH
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 7W, typical 4.9W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions - ø110x77mm(ø4.33x3.03")
• Weight - 522g(1.15 lb)
• Compatible Gangbox - Single, Double, 4" Octagon

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - IEC/EN 63000 IEC 60529 IP66, IEC 62262 IK10

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 28.1m(92.35ft)
• Observe (63PPM/ 19PPF) - 11.3m(36.94ft)
• Recognize (125PPM/ 38PPF) - 5.6m(18.47ft)
• Identify (250PPM/ 76PPF) - 2.8m(9.23ft)

QNV-C8012 Specifications PDF
