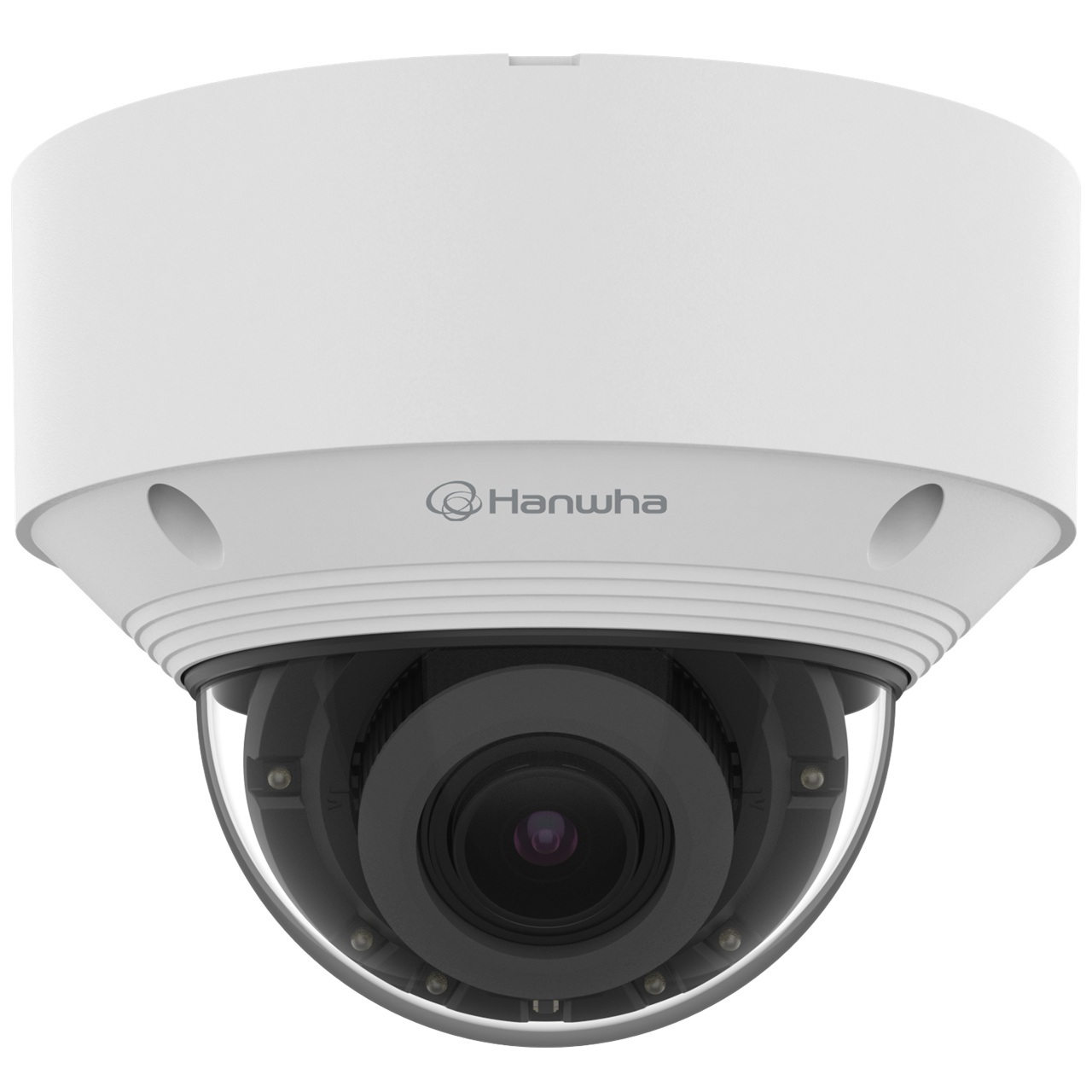

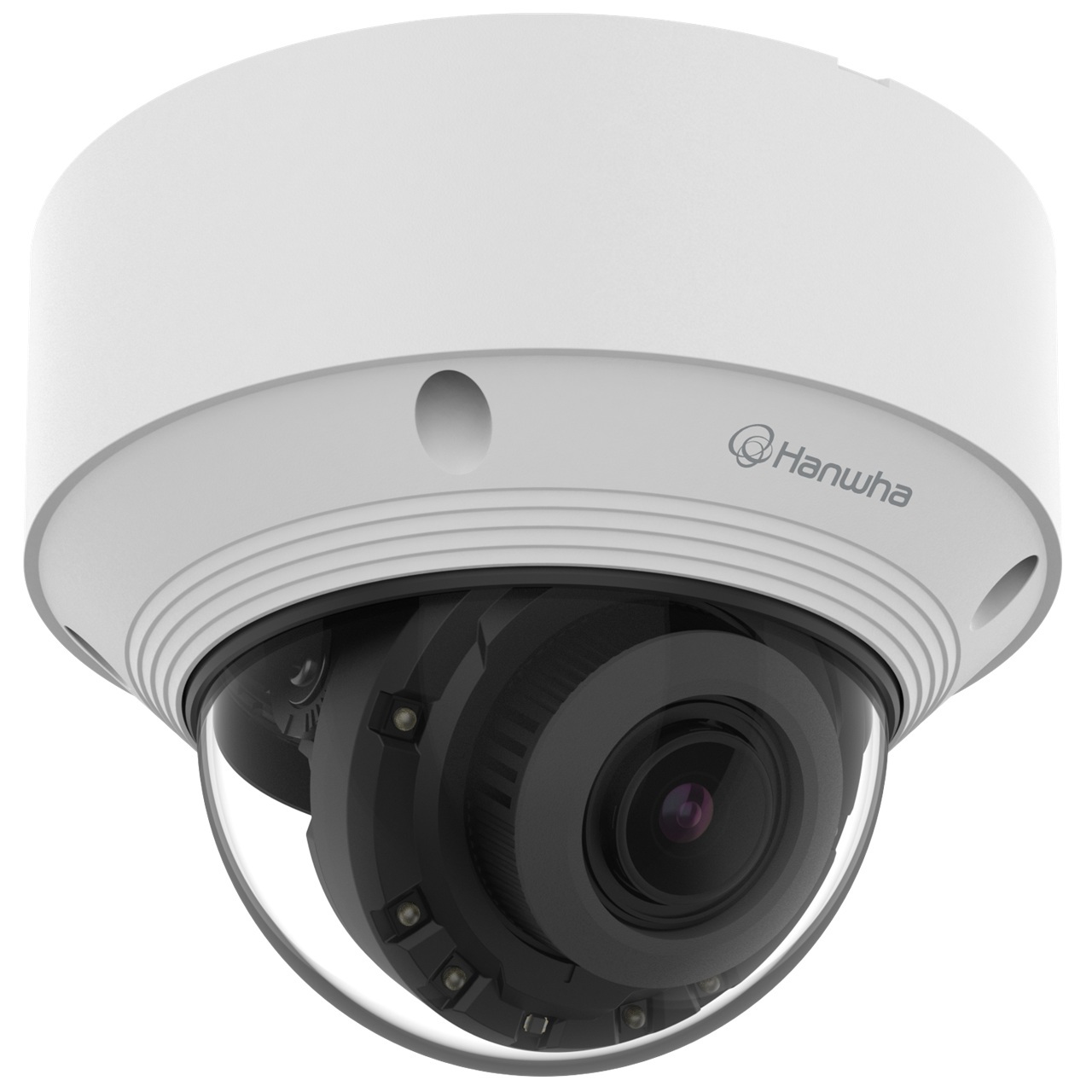

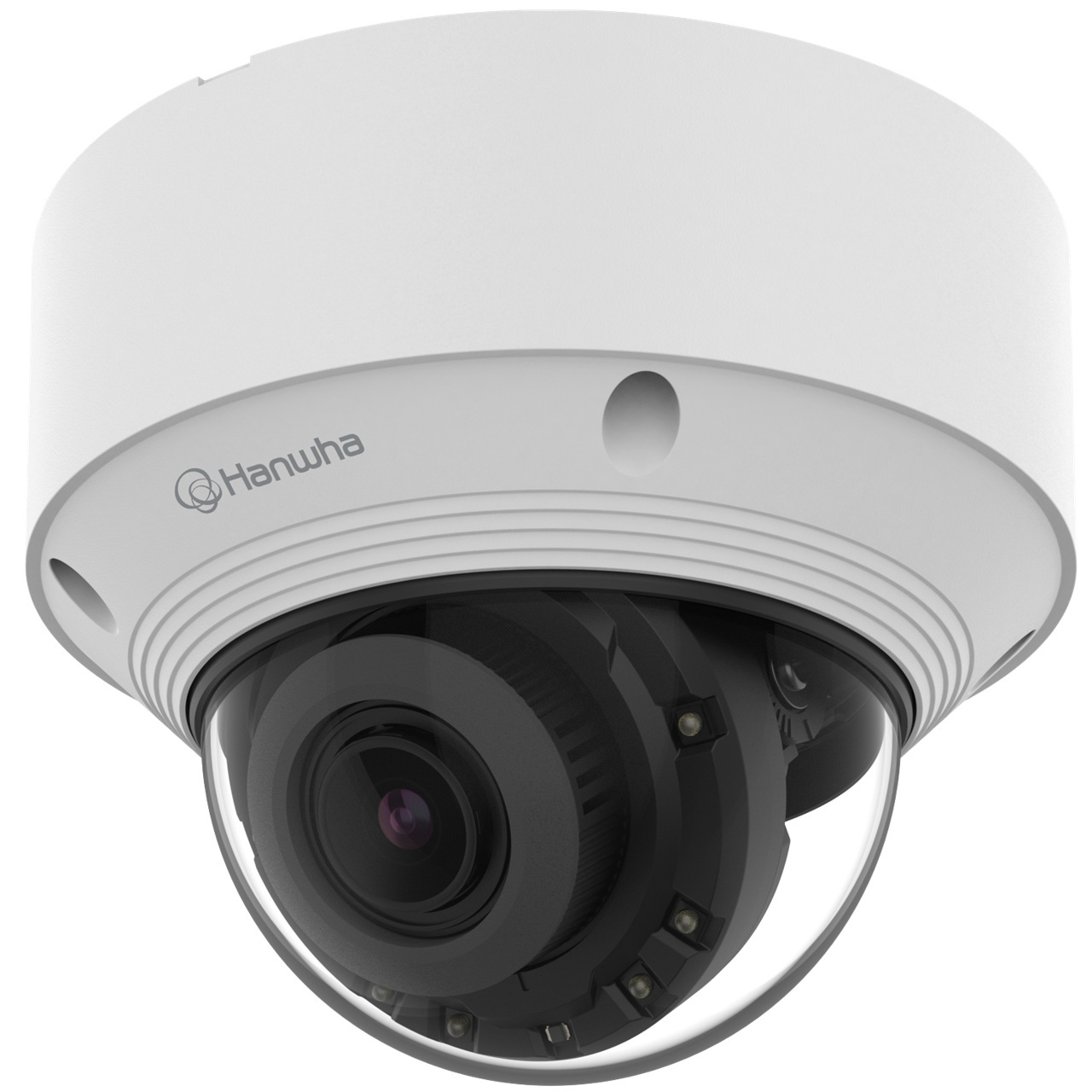

QNV-C9083R Hanwha Vision Q Series 3.2 - 10.2mm Motorized 30FPS @ 4K Indoor/Outdoor IR Day/Night WDR Vandal Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@8MP Max. 5fps)
• Min. Illumination - Color(1/30sec, 30IRE) 0.06, BW(1/30sec, 30IRE), 0.006
• Video Out - USB: Micro USB Type B

Lens

• Focal Length (Zoom Ratio) - 3.2~10.2mm(3.2x)
• Max. Aperture Ratio - F1.6(Wide)~F3.1(Tele)
• Angular Field of View - H : 104°(Wide)~31°(Tele) V : 55°(Wide)~17°(Tele) D : 124°(Wide)~35°(Tele)
• Min. Object Distance - 1.2m (3.93ft)
• Focus Control - Simple focus
• Lens Type - DC auto iris(IR Corrected)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / -35°~70° / 0°~355°

Operational

• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range (dB) - 120
• Digital Noise Reduction - SSNRâ…¤, WiseNRâ…¡(Based on AI engine)
• Motion Detection - 8ea, 8 Polygonal zones
• Privacy Masking/ Color / Option - 32ea, 4point Quadrangle zones Gray, Green, Red, Blue, Black, White
• Gain Control - Low / Middle / High
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(1/5~1/12,000sec)
• Video Rotation - Flip, mirror, Hallway view(90Ëš/270Ëš)
• Alarm Interface - In/Out - Input 1ea, Output 1ea, Others Support alarm I/O through an optional cable
• Alarm Triggers - Analytics, Network disconnect, Alarm input, MQTT subscription
• Alarm Events When Alarm Trigger Occurred - File upload(image): -mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers,Alarm output, Handover: PTZ preset,send message by HTTP/HTTPS/TCP,Audio clip playback, MQTT: publication
• Audio In - Selectable(mic in/line in), Support udio able as Optional
• Audio Out - Line out, Support audio Cable as optional
• Light Type - IR LED
• Light Viewable Length IR - 30m(98.42ft)
• IR Wavelength - 850nm

Analytics

• Classified Object Type - Person, Vehicle
• Attributes - Vehicle Type(car, bus, truck, motorcycle, bicycle)
• Thumbnail - DetectionShot
• Analytics Events - Based on AI Engine Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection, Normal Defocus detection, Tampering, Virtual area(Appear/Disappear)
• Business Intelligence - Based on AI Engine People counting, Queue management, Heatmap, Vehicle counting

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual, WiseStreamIII
• Bitrate Control - H.265/H.264: CBR or VBR, MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast),MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API), Hanwha Vision Open Platform
• Direct Cloud Connection - Support

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(WebSocket Secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - SDcard partition encrypt (AES-256)

General

• Edge Storage - Micro SD/SDHC/SDXC Max. 256GB x 1slot
• Memory - 2GB RAM, 1GB Flash

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -30°C~+55°C(-22°F ~ +131°F) / 0~100% RH(condensing) * Start up should be done at above -30°C Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~95% RH
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE: Max 12.95W, typical 5.3W

Mechanical

• Color / Material - White / Aluminum Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions / Weight - ø140x110.2mm(ø5.51x4.34"), 875g(1.93lb)
• Compatible Gangbox - Single, Double, 4" Octagon

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 60.0m(196.86ft) / Tele: 276.9m(908.57ft)
• Observe (63PPM/ 19PPF) - Wide: 24.2m(78.74ft) / Tele: 111.7m(363.43ft)
• Recognize (125PPM/ 38PPF) - Wide: 12.0m(39.37ft) / Tele: 55.4m(181.71ft)
• Identify (250PPM/ 76PPF) - Wide: 6.0m(19.69ft) / Tele: 27.7m(90.86ft)

QNV-C9083R Specifications PDF
