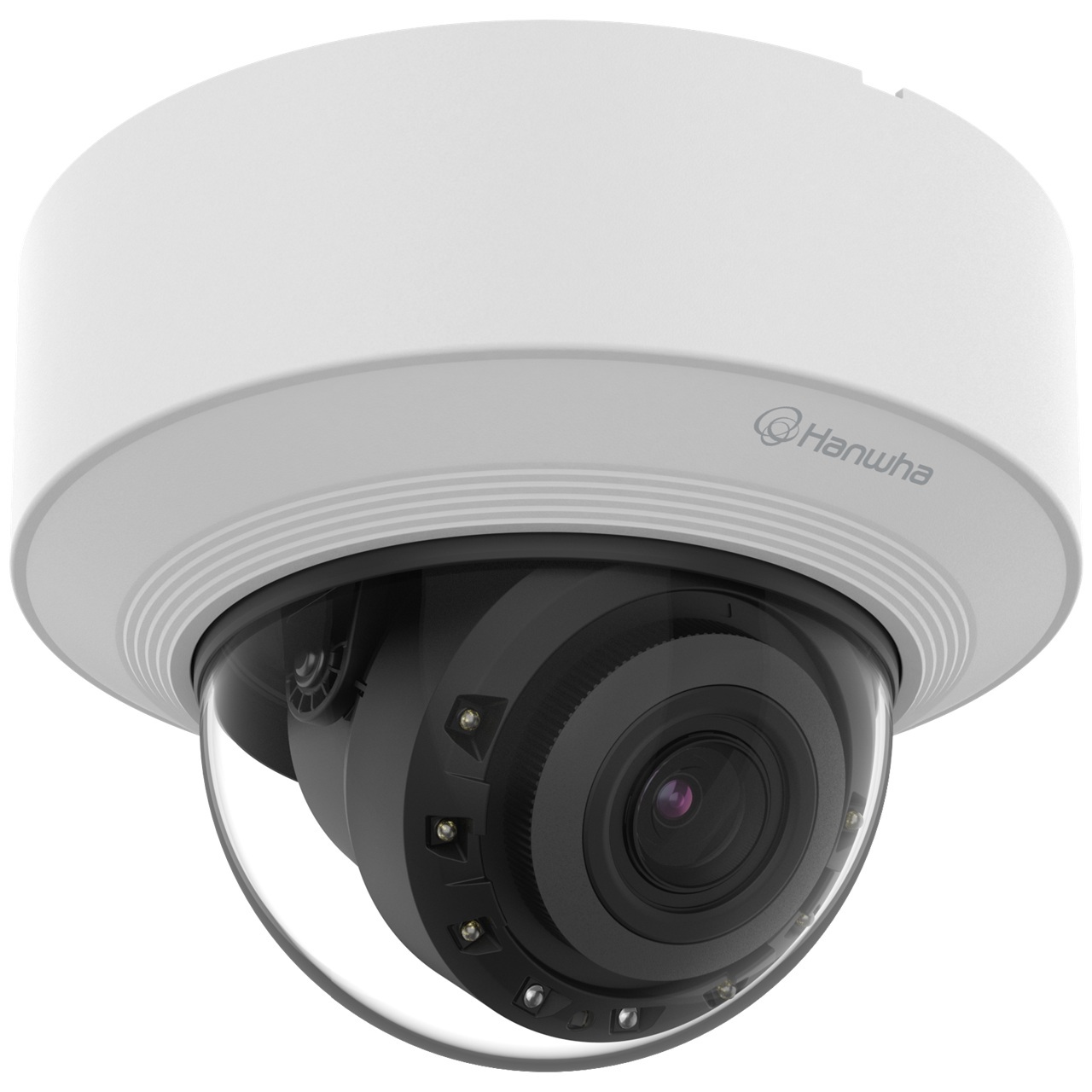

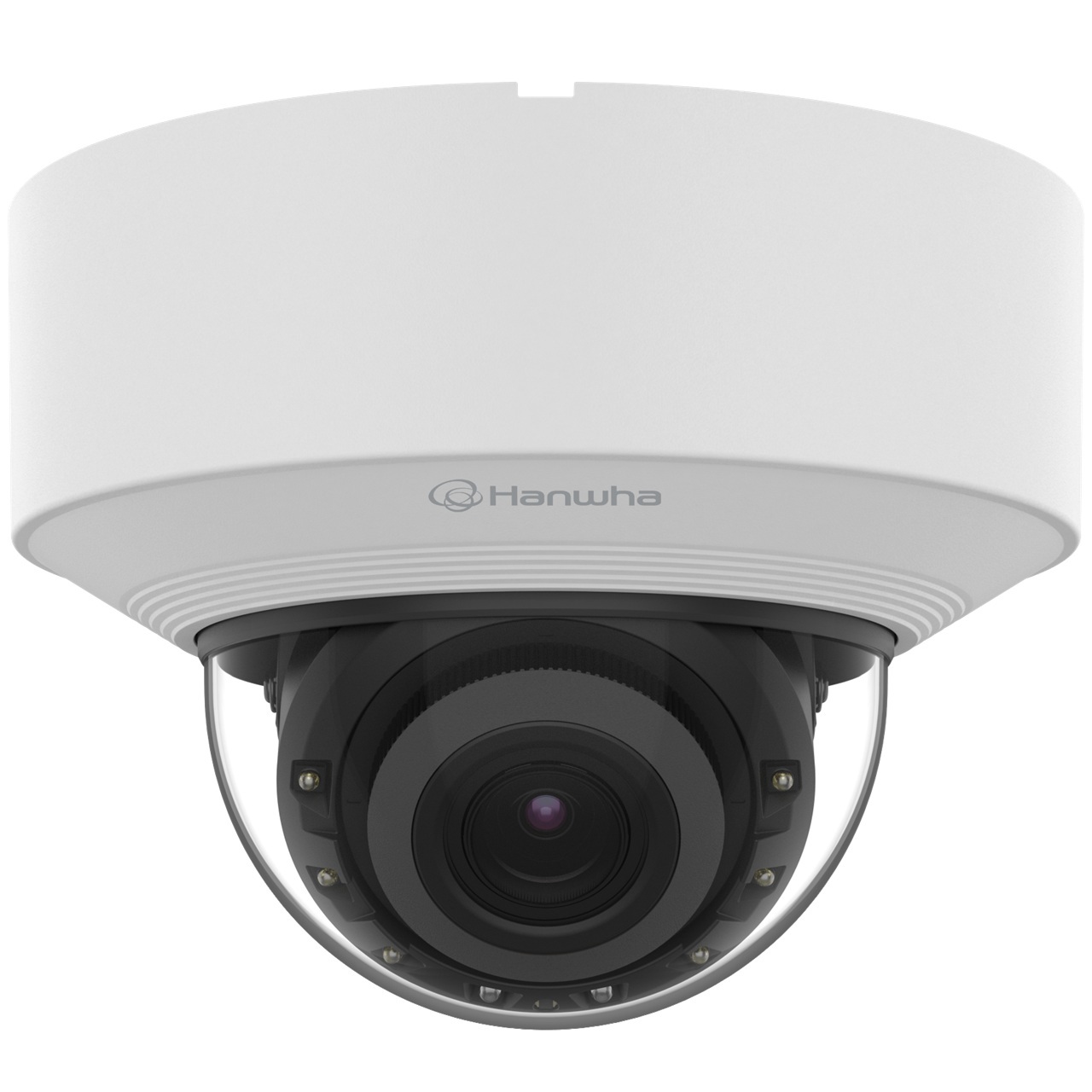

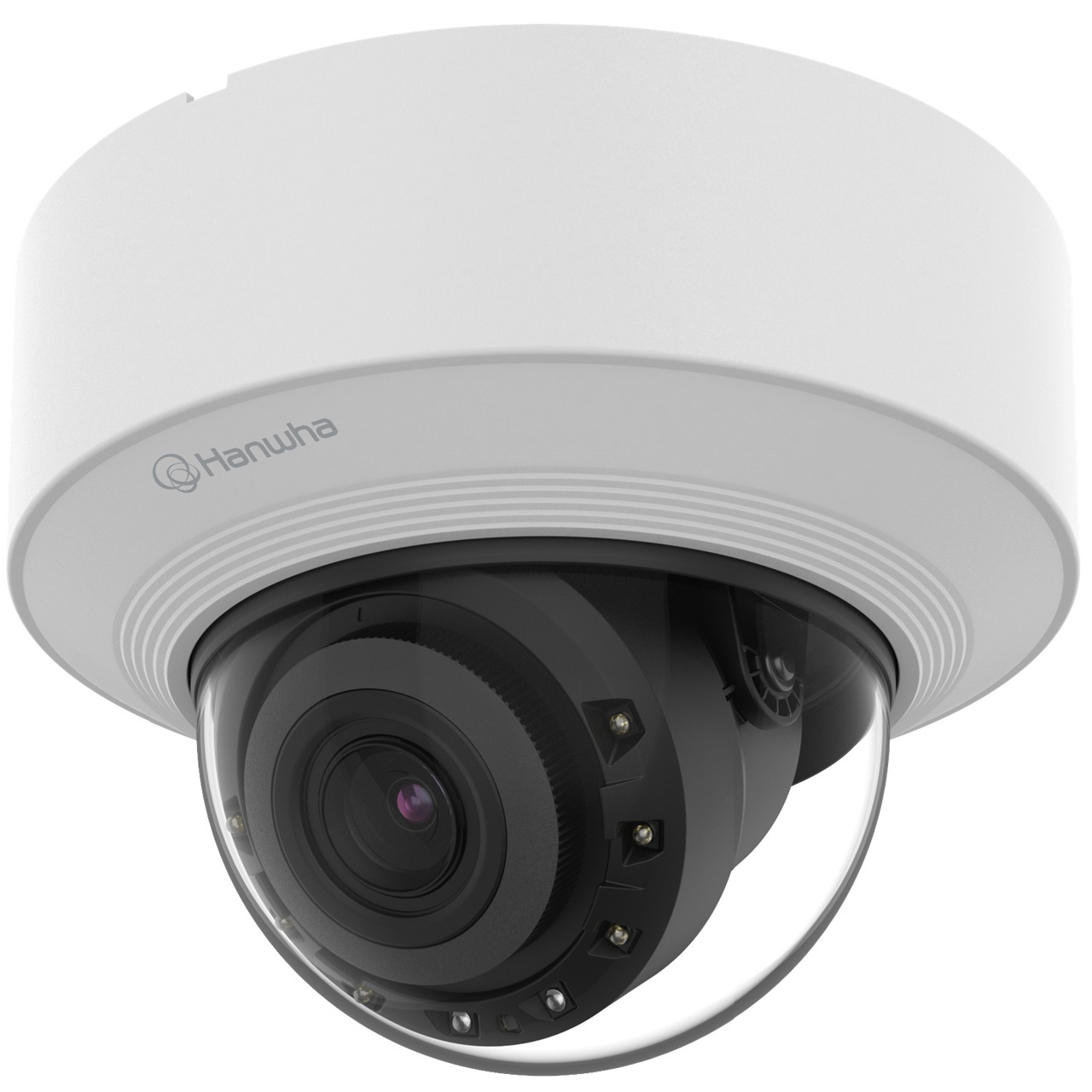

XND-C9083RV Hanwha Vision X Series 4.4~9.3mm Motorized 30FPS @ 2160p Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/1.8" CMOS
• Resolution - 3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@8MP Max. 5fps)
• Min. Illumination - Color: 0.04Lux(F1.3, 1/30sec, 30IRE) BW: 0.004Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 4.4~9.3mm(2.1x) motorized varifocal
• Max. Aperture Ratio - F1.3(Wide)~F2.15(Tele)
• Angular Field of View - H: 113°(Wide)~47°(Tele) V: 58°(Wide)~26°(Tele) D: 138°(Wide)~54°(Tele)
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus, Manual
• Lens Type - P-iris (IR corrected)

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~360° / 0°~75° / 0°~355°

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range (dB) - extremeWDR(120dB)
• Digital Noise Reduction - WiseNRâ…¡(Based on AI engine), SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Polygonal zones
• Privacy Masking - 32ea, 4point Quadrangle zones - Color: Gray/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Off, Max gain, Manual
• White Balance - ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
• LDC - Support (Fill/stretch mode)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control(Based on AI engine)
• Digital PTZ - Support(Preset, Group)
• Video Rotation - Flip, mirror, Hallway view(90Ëš/270Ëš)
• Analytics - Classified object type: Person/Face/Vehicle(Type: car/bus/truck/motorcycle/bicycle)/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine - Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection Analytics events - Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
• Business Intelligence - Based on AI engine: People/Vehicle counting, Queue management, Heatmap
• Alarm I/O - 2 configurable I/O ports
• Alarm Triggers - Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image): e-mail/FTP/SFTP - File upload(video clip): FTP/SFTP - Notification: e-mail - Recording: SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover: PTZ preset, send message by HTTP/HTTPS/TCP - Audio clip playback - MQTT: publication
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• IR Viewable Length - WiseIR 40m(131.23ft)

Network

• Ethernet - Metal shielded RJ-45(10/100BASE-T)
• Video Compression - H.265/H.264: Main/Baseline/High MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¢(Based on AI engine)
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast / Multiple streaming Up to 10 profiles, 3 virtual channel support
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP/SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
• Application Programming Interface - ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform

Security

• OS / Firmware Protect - Encrypted Firmware, Secure boot, Signed Firmware
• User authentication - Digest Authenticaton, Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(Websocket secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption Credentials, Encrypt compress for live recording file export
• Audit - Access / System / Event Log management
• Device ID - Device certificate(Hanwha Vision Root CA)
• Secure Storage - HTPM(Hanwha trusted platform module), SDcard partition encrypt
• Security Certificate - CyberSecurity assuarance program UL CAP(UL 2900-2-3 L2)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 1slot Max. 512 GB
• Memory - RAM 4GB, Flash 512MB

Environmental & Electrical

• Operating Temperature / Humidity/ Others - -10 °C~+50 °C(14°F~+122°F) / 0~100% RH(condensing) Humidity control with AIR vent
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / 0~90% RH
• Certification - IP52, IK08
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 12.95W, typical 11.2W 12VDC: Max 13.2W, typical 10.8W

Mechanical

• Color / Material - White / Aluminum + PC Bubble: Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions / Weight - ø160x118mm(ø6.30x4.65"), 1350g(2.98 lb)
• Compatible Conduit hole / Gangbox - 12.7mm(1/2")(M20) single, double, 4" octagon, 4" square
• Hanging Mount (Dome) - SBP-160HMW1
• Backbox - SBV-180BW/WW
• Ceiling Mount (Assy) - SBP-150CMI/300CMI, SBP-300CMW1/900CMW, SBP-300CMTW, SBP-300CMTS
• Wall Mount - SBP-300WMW/WMW1, SBP-390WMW2, SBP-160WMW1
• Pole Mount - SBD-180PMW, SBP-300PMW2

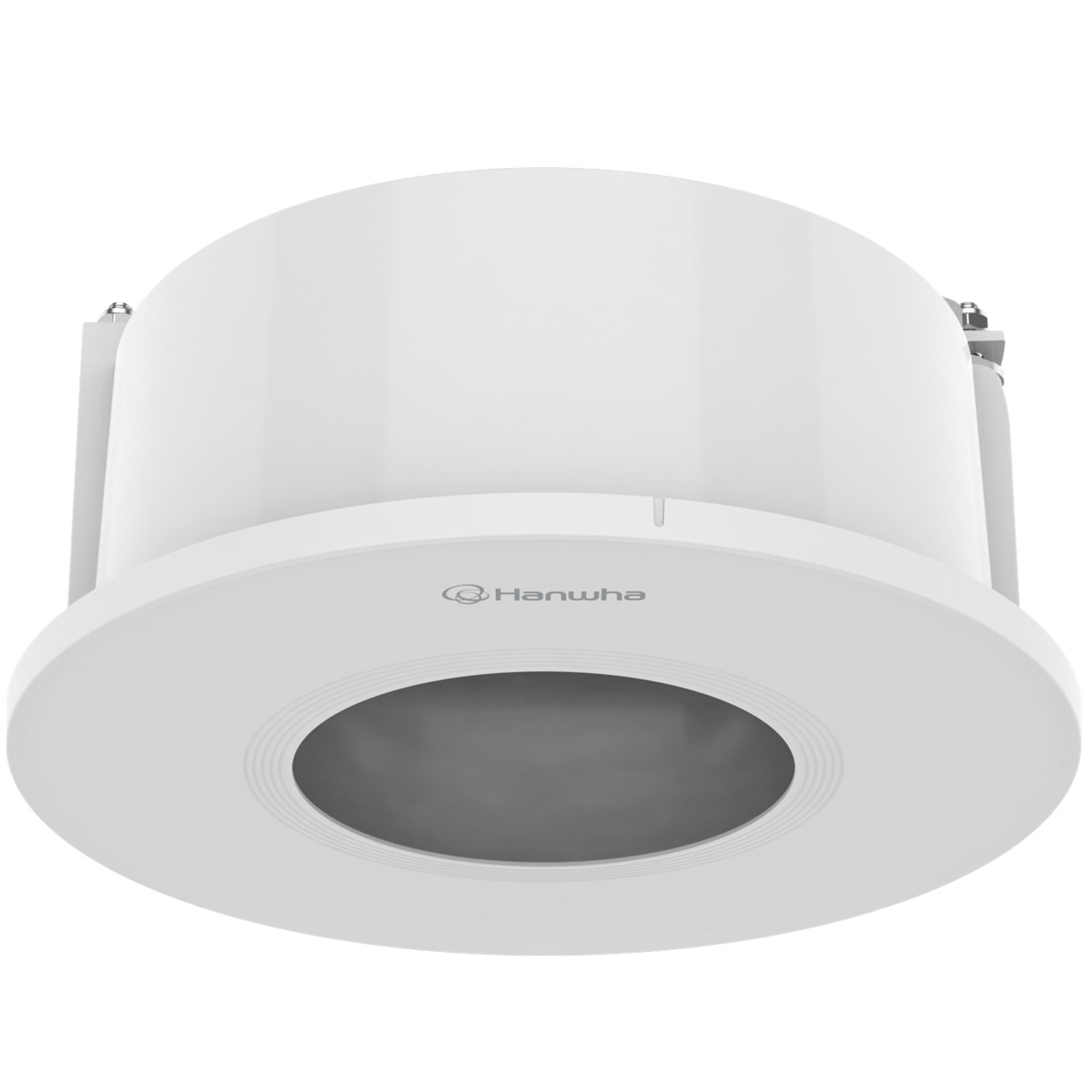

• In-ceiling Mount - SHD-1600FPW/FW
• Parapet Mount - SBP-300LMW, SBP-156LMW1
• Corner Mount - SBP-300KMW1
• Cabinet - SBP-300NBW

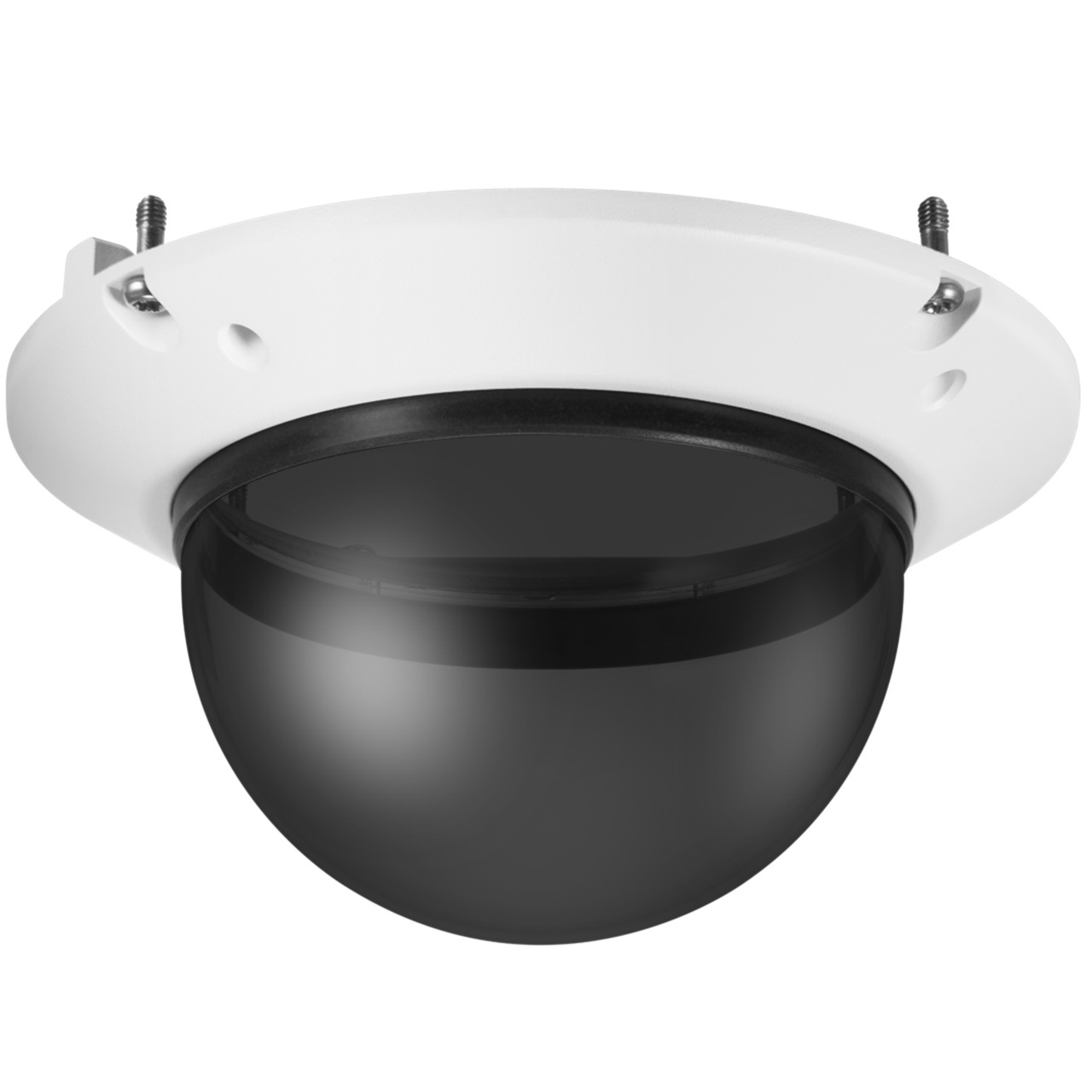

• Other Compatible Models - SPB-IND88W

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835
• Safety - UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471
• Environment - IEC/EN 63000 IEC/EN 60529 IP52, IEC/EN 62262 IK08

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 50.8m(166.77ft) / Tele: 176.6m(579.49ft)
• Observe (63PPM/ 19PPF) - Wide: 20.3m(66.71ft) / Tele: 70.7m(231.80ft)
• Recognize (125PPM/ 38PPF) - Wide: 10.2m(33.35ft) / Tele: 35.3m(115.90ft)
• Identify (250PPM/ 76PPF) - Wide: 5.1m(16.68ft) / Tele: 17.7m(57.95ft)

Ver

• Ver - 202405
