SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White

SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White	SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White	SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White
SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White	SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White
(Click to see larger image and other views)

SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White

SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White	SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White	SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White
SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White	SBP-160TMW1 Hanwha Vision Tilted Wall Mount - White
(Click to see larger image and other views)

SKU: SBP-160TMW1

Brand: Hanwha Vision

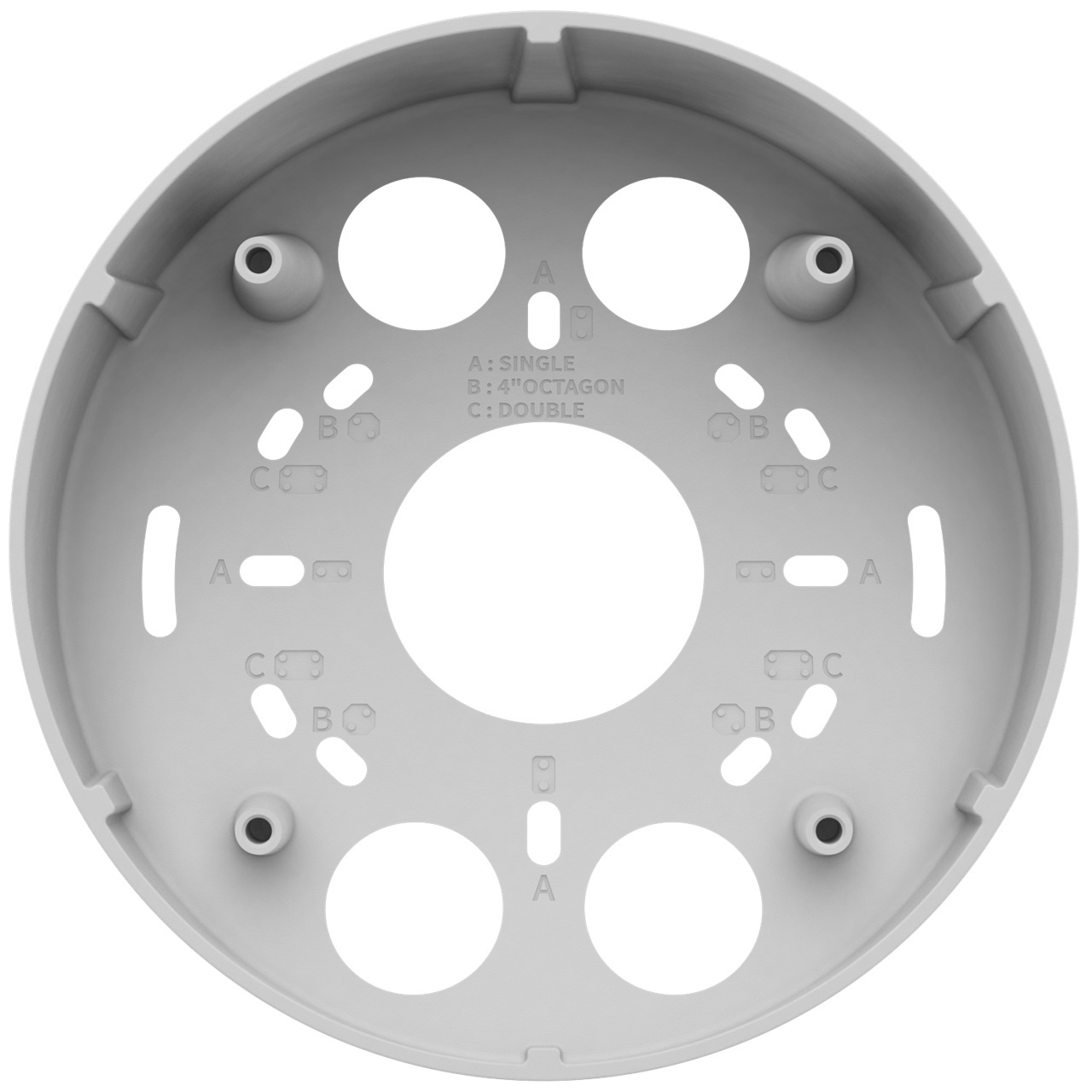

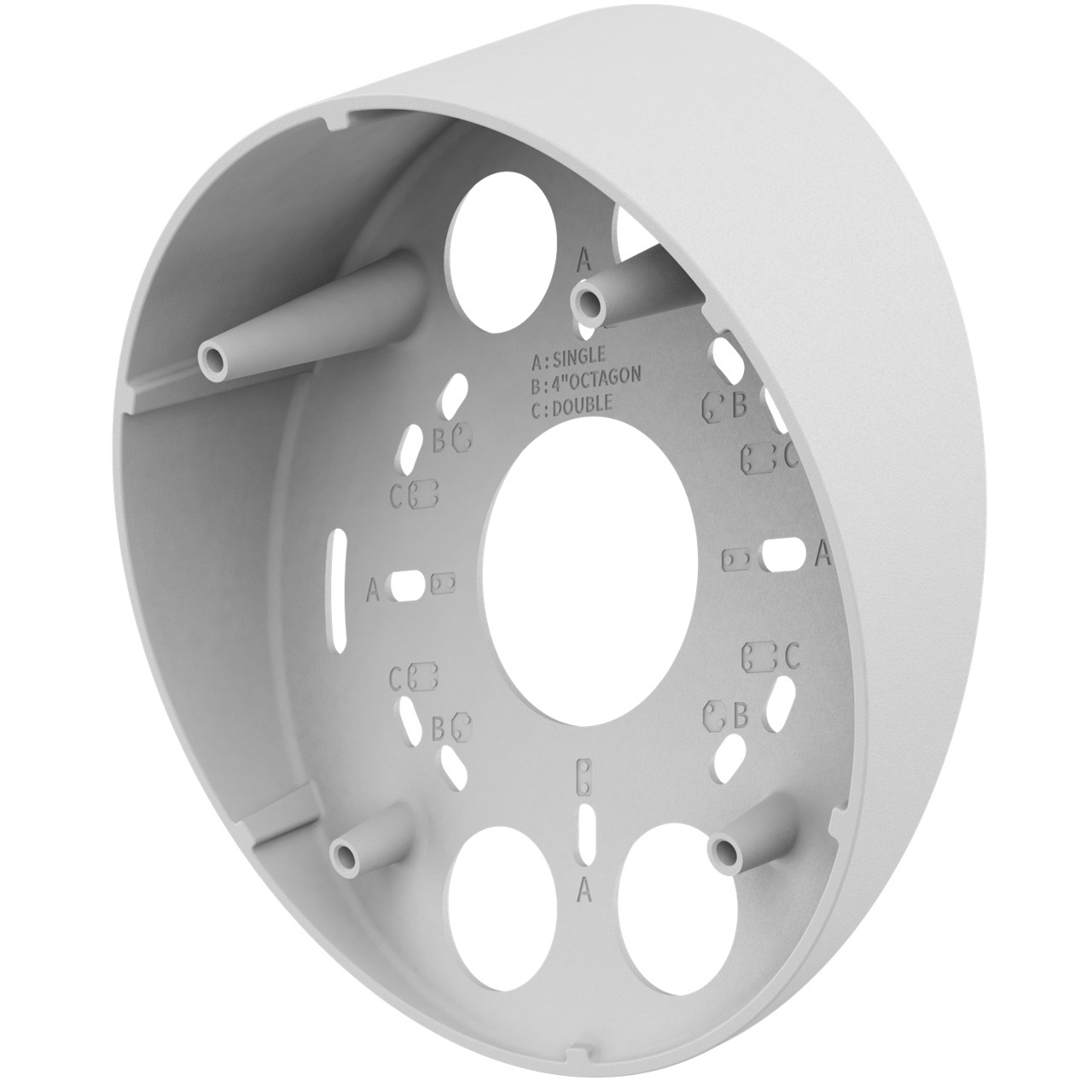

Tilted Wall Mount (White)

Features:

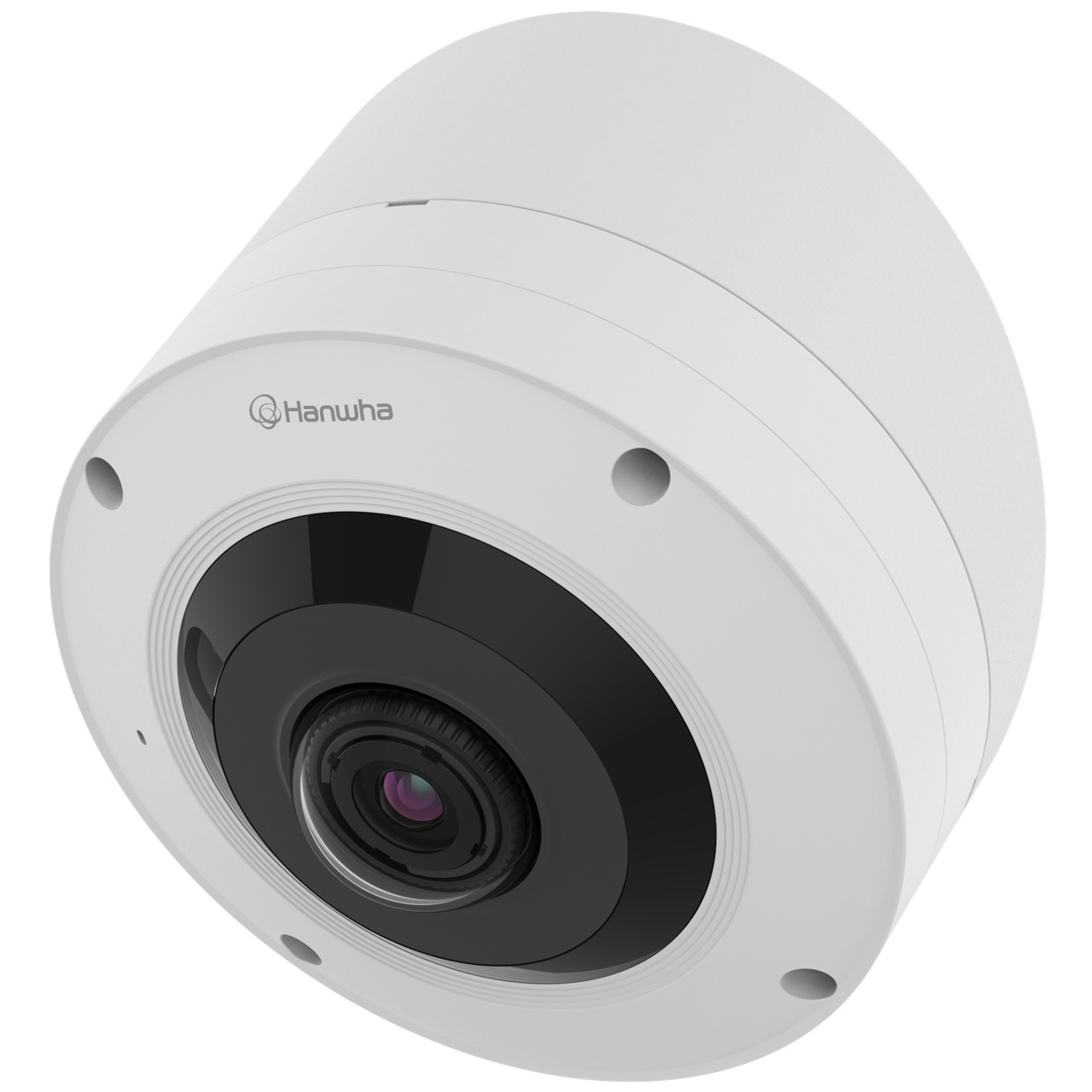

The 20° tilt on this aluminum mounting solution is designed to maximize your effective field of view with wall-mounted fisheye or dome cameras. This adapter is compatible with the following camera units:
XNF-9010RV
XNF-9010RVM
XND-9082RV
XND-8082RV
XND-6081RV
XND-6081REV
XND-8081RV
XND-8081REV
PND-A9081RV
Wall mount is white colored to match camera

More details...

MPN: SBP-160TMW1
EAN: 8801089198792

MSRP Price: $49.00

Web Price$49.00

Quantity:

Add to List

DWG Dealer Program Become a DWG Dealer to see your pricing. Dealer pricing, quoting, volume discounts, and sales support on thousands of products.

Become a DWG Dealer → DWG Dealer Sign In

Product Details

Specifications

Environmental

Operating Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 100% RH
Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / Less than 100% RH

Mechanical

Color - White
Material - Aluminum
RAL code - RAL9003
Product dimensions / weight - Ø160.0x57.6mm(6.30x2.27"), 325g(0.72 lb)
Supported products - XNF-9010RV * For further compatible models, please visit our website or use Toolbox

SBP-160TMW1 Specifications PDF
