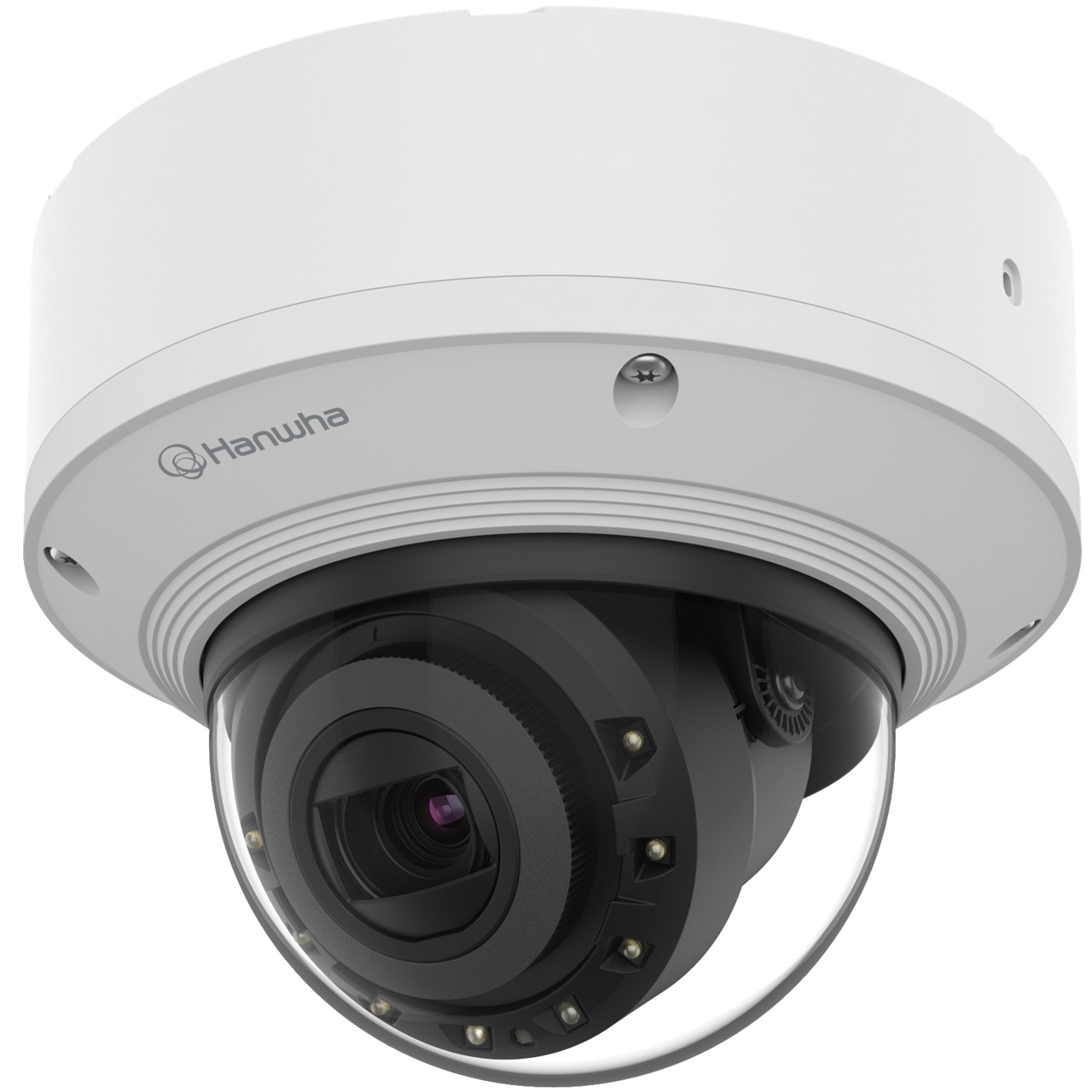

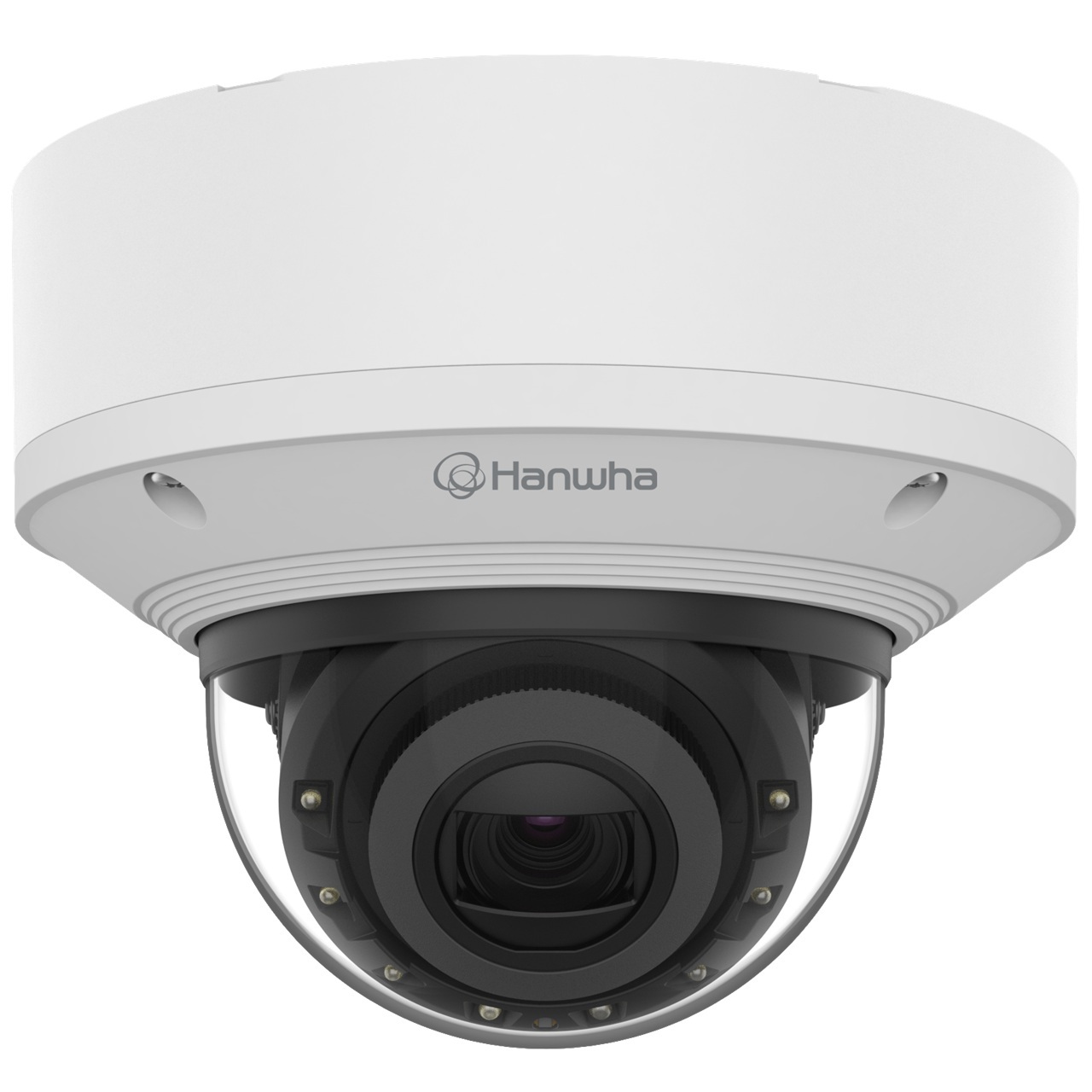

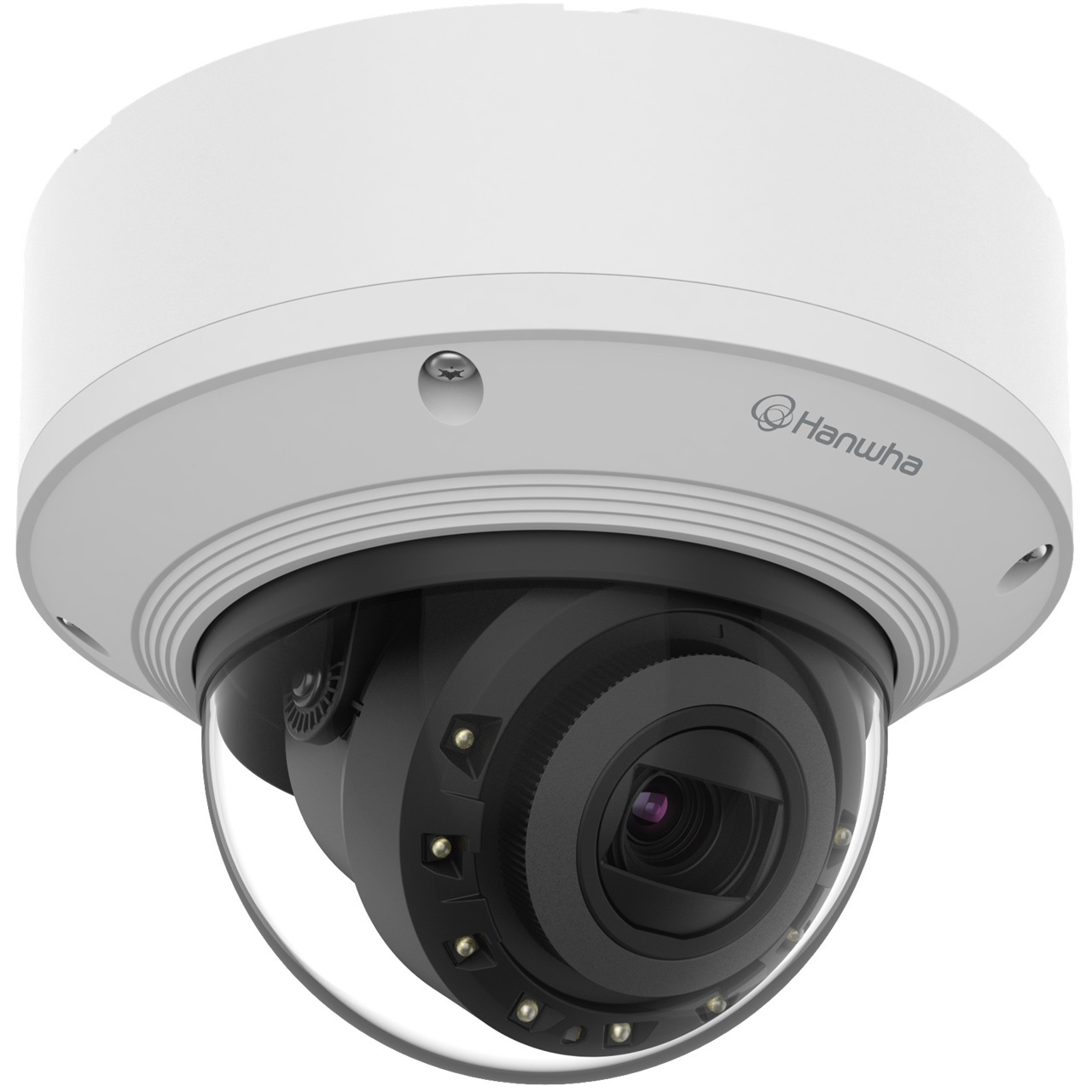

XND-8082RV Hanwha Vision X Series 2.8-8.4mm Motorized 30FPS @ 6MP Indoor IR Day/Night WDR Dome IP Security Camera 12VDC/PoE

Specifications

Video

• Imaging Device - 1/2.8" progressive CMOS
• Resolution - 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
• Max. Framerate - H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)
• Min. Illumination - Color: 0.05Lux(F1.2, 1/30sec, 30IRE) B/W: 0.005Lux(F1.2, 1/30sec, 30IRE), 0Lux(IR LED on)
• Video Out - CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 2.8~8.4mm(3x) motorized varifocal
• Max. Aperture Ratio - F1.2(Wide)~F2.8(Tele)
• Angular Field of View - H: 114°(Wide)~40.2°(Tele) V: 62.0°(Wide)~22.5°(Tele) D: 133.0°(Wide)~46.3°(Tele)
• Min. Object Distance - 0.7m (2.23ft)
• Focus Control - Simple focus
• Lens Type - DC Auto Iris, P iris

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0Ëš~360Ëš / -45Ëš~85Ëš / 0Ëš~355Ëš

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto(ICR)
• Backlight Compensation - BLC, HCL, WDR, SSDR
• Wide Dynamic Range - extremeWDR(120dB)
• Digital Noise Reduction - SSNRâ…¤
• Digital Image Stabilization - Support(built-in gyro sensor)
• Defog - Support
• Motion Detection - 8ea, 8 Point Polygonal zones
• Privacy Masking - 32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
• Gain Control - Support
• White Balance - ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support(Fill/stretch mode)
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec) prefer shutter control
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics - Defocus detection, Directional detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Fog detection, Virtual line, Audio detection, Sound classification, Shock detection, Face/upper body detection
• Business Intelligence - People counting, Queue management, Heatmap
• Alarm I/O - 2 configurable I/O ports
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
• Audio In - Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max.output level: 1Vrms
• IR Viewable Length - WiseIR 40m(131.23ft)

Network

• Ethernet - Metal shielded RJ-45(10/100/1000BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamâ…¡
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM (Hanwha Trusted platform module) Secure OS/Boot/Storage, Verify firmware forgery CyberSecurity assuarance program UL CAP (UL 2900-1)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
• Edge Storage - Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
• Memory - 4GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -25°C ~ +60°C (-13°F ~ +140°F) / 0 ~ 95% RH(non condensing)
• Storage Temperature / Humidity - -50°C ~ +60°C(-58°F ~ +140°F) / 0 ~ 90% RH
• Certification - IP52, Plenum rated, IK10
• Input Voltage - PoE(IEEE802.3af), 12VDC
• Power Consumption - PoE : Max 12.95W, typical 10.7W 12VDC : Max 11.5W, typical 9.0W Power redundancy failover

Mechanical

• Color / Material - White / Aluminum, Hard-coated dome bubble
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø160x125mm(6.30x4.92"), 1600g(3.53 lb)
• Compatible Conduit hole / Gangbox - 1/2" (M20) single, double, 4" octagon, 4" square

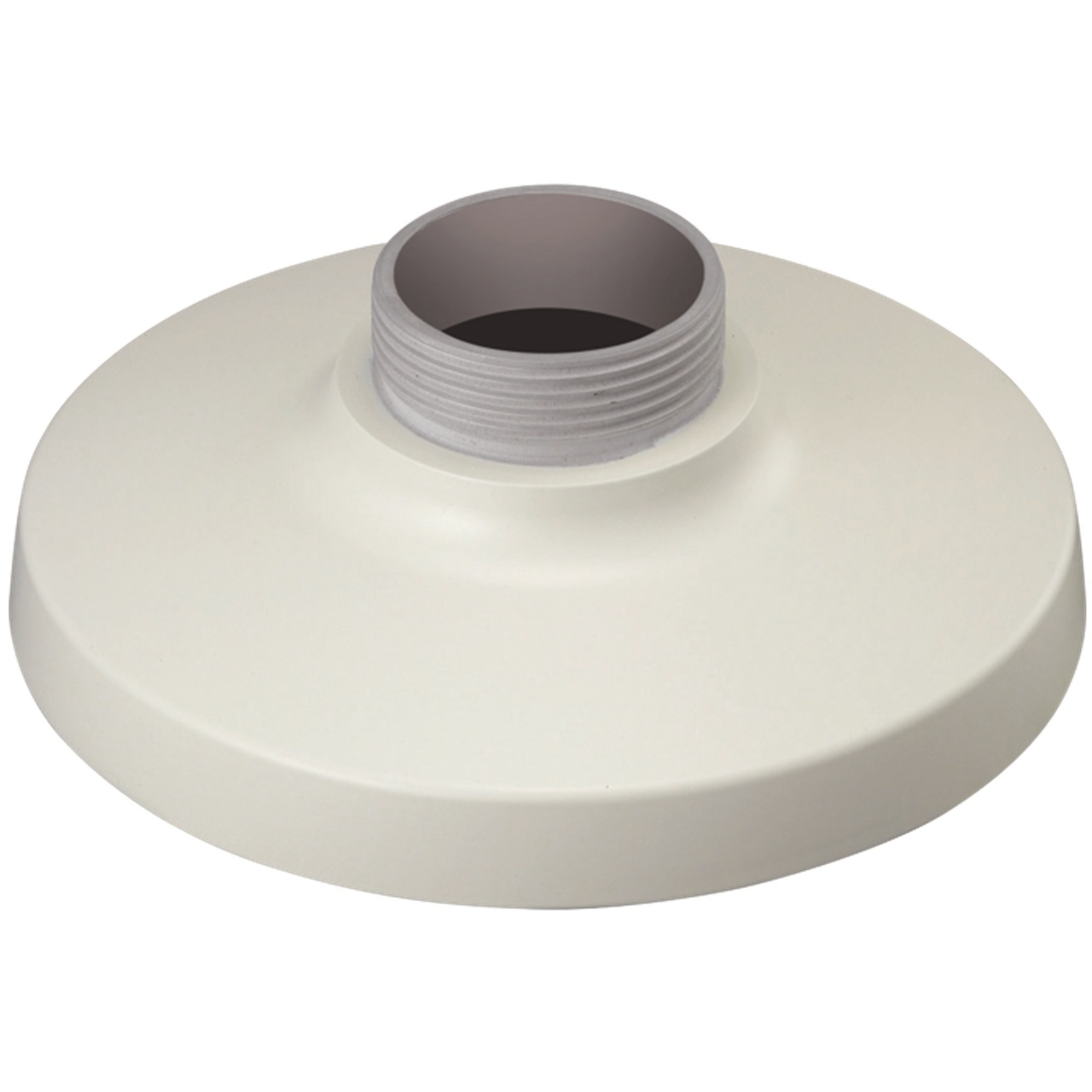

• Hanging Mount (Dome) - SBP-167HMW

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 43.2m(141.81ft) / Tele: 181.9m(596.73ft)
• Observe (63PPM/ 19PPF) - Wide: 17.3m(56.73ft) / Tele: 72.8m(238.69ft)
• Recognize (125PPM/ 38PPF) - Wide: 8.6m(28.36ft) / Tele: 36.4m(119.35ft)
• Identify (250PPM/ 76PPF) - Wide: 4.3m(14.18ft) / Tele: 18.2m(59.67ft)
