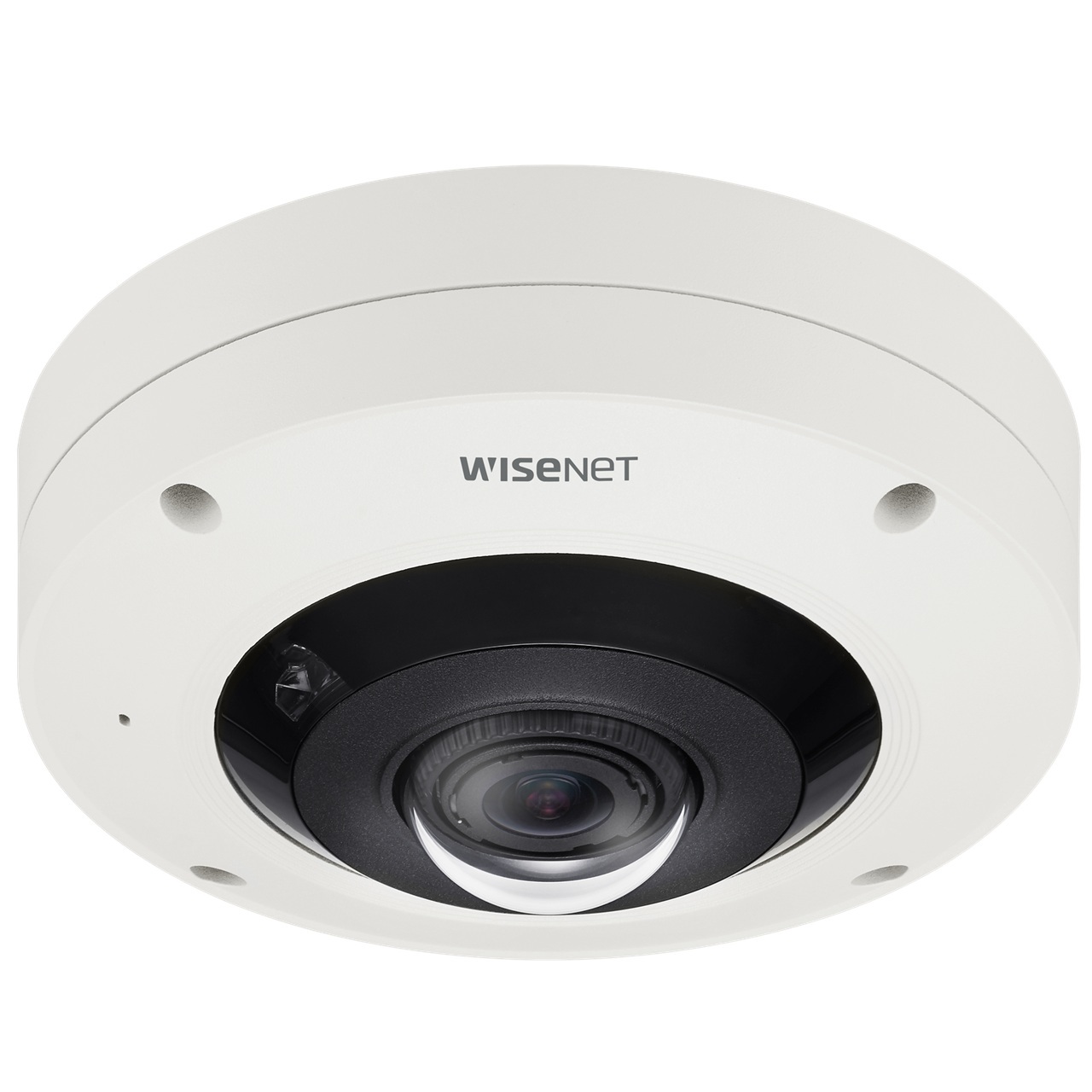

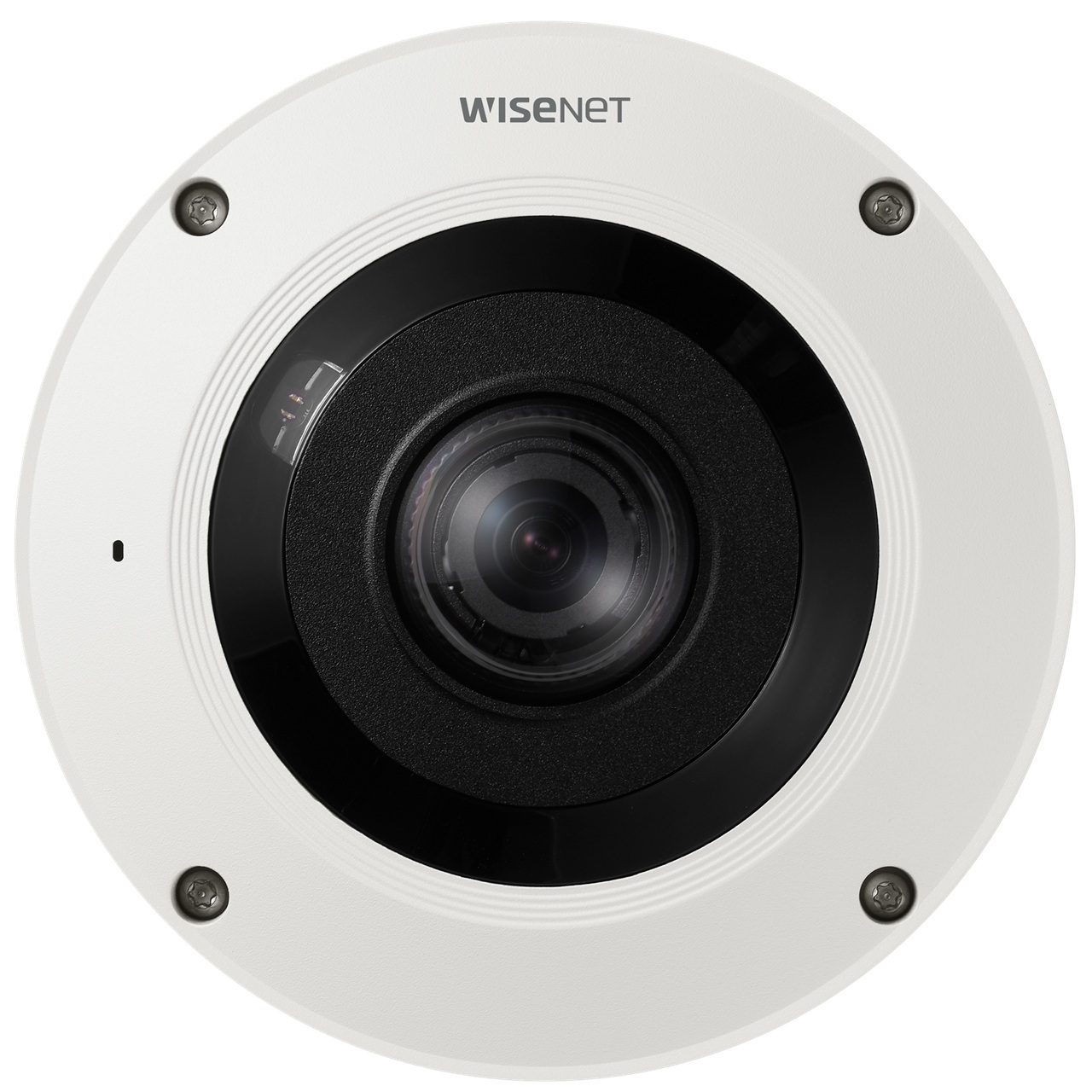

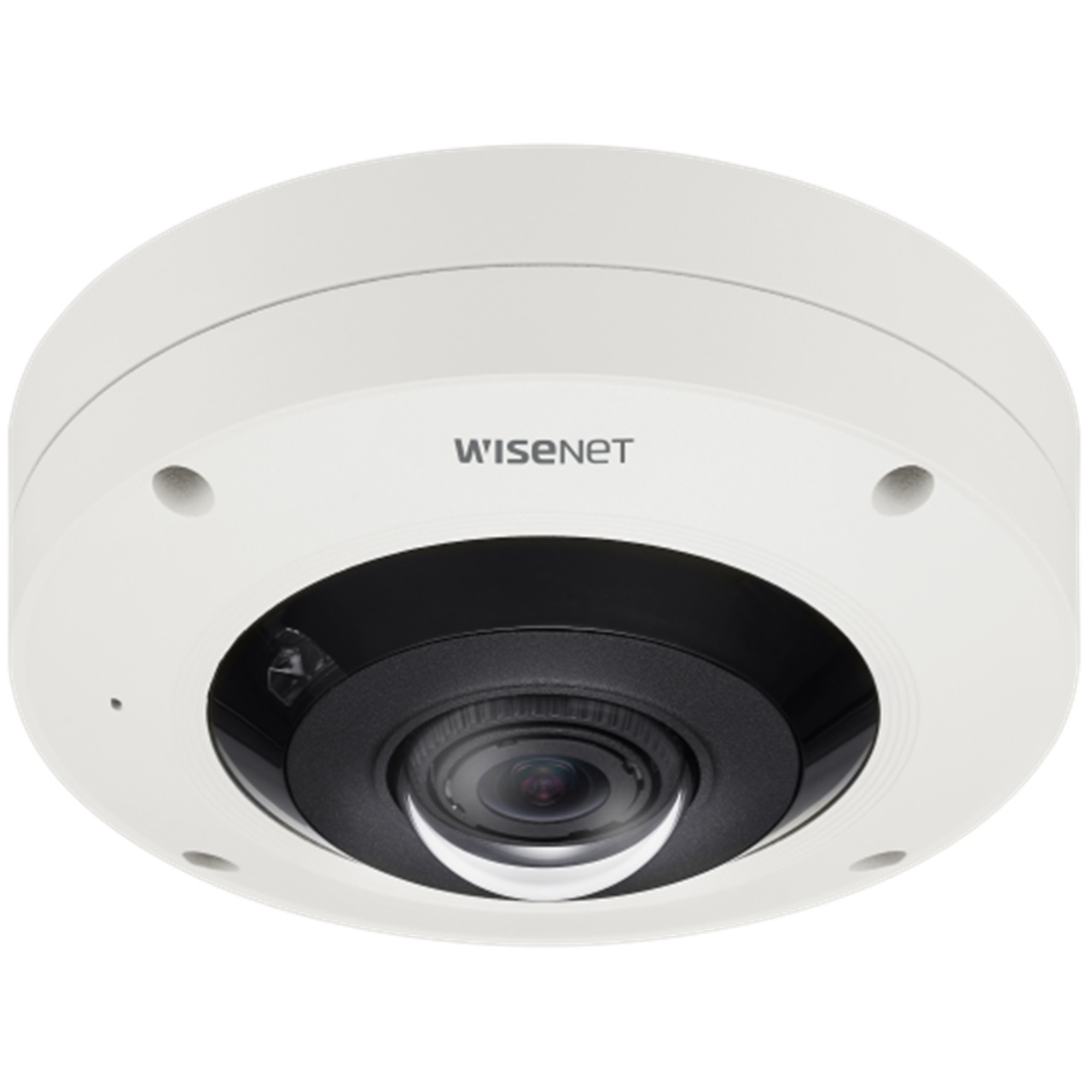

XNF-9010RVM Hanwha Vision X Series 1.08mm 30FPS @ 12MP Outdoor IR Day/Night WDR Fisheye IP Security Camera 12VDC/POE

Specifications

Video

• Imaging Device - 1/2.3" 12MP CMOS
• Resolution - Original view(1:1): 3008x3008~480x480, Double panorama(2:1): 3584x1792~640x320, Single panorama(4:1): 3584x896~640x160, Quad view: 3584x2688~640x480, Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480
• Max. Framerate - H.265/H.264: Original view-Max.30fps/25fps@3008x3008(60Hz/50Hz), Double panorama-Max.30fps/25fps@3584x1792(60Hz/50Hz) Single panorama-Max.30fps/25fps@3584x896(60Hz/50Hz) MJPEG: Max.30fps/25fps@1080x1080(60Hz/50Hz)
• Min. Illumination - Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on)
• Video Out - CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation USB: Micro USB Type B, 1280x720 for installation

Lens

• Focal Length (Zoom Ratio) - 1.08mm fixed focal
• Max. Aperture Ratio - F2.2
• Angular Field of View - H: 187° / V: 187° / D: 187°
• Min. Object Distance - 0.5m(1.64ft)
• Focus Control - Simple focus

Operational

• Camera Title - Displayed up to 85 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, HLC, WDR, SSDR
• Wide Dynamic Range - extremeWDR (120dB)
• Digital Noise Reduction - SSNRâ…¤
• Motion Detection - 8ea, 8Point Polygonal zones
• Privacy Masking - 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
• Gain Control - Low / Middle / High
• White Balance - ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (1/5~1/12,000sec)
• Digital PTZ - Support (Preset, Group)
• Video Rotation - Flip, mirror
• Analytics - Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
• Business Intelligence - People counting, Queue management, Heatmap
• Alarm I/O - 2 configured I/O
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset Handover Audio playback
• Audio In - Selectable(mic in/line in/built-in mic) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out - Line out, Max. output level: 1Vrms
• IR Viewable Length - 10m(32.8ft), Wise IR

Network

• Ethernet - Metal shielded M12 (through RJ45 to M12 cable)
• Video Compression - H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression - G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
• Smart Codec - Manual(5ea area), WiseStreamII
• Video Quality Adjustment - H.264/H.265: Target bitrate level control MJPEG: Quality Level control
• Bitrate Control - H.264/H.265: CBR or VBR MJPEG: VBR
• Streaming - Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage - Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
• Memory - 4096MB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
• Storage Temperature / Humidity - -50°C~+60°C(-58°F~+140°F) / Less than 95% RH
• Certification - IP66, IK10, NEMA4X, EN50155 class T3 EN45545-2, NFPA130, BSS7239
• Input Voltage - PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption - PoE: Max 12.95W, typical 11W 12VDC: Max 11W, typical 9.1W

Mechanical

• Color / Material - White / Aluminum, Hard-coated dome
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø160x72mm(6.23x2.84"), 1100g(2.43lb)
• Hanging Mount (Dome) - SBP-167HMW

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 34.9m(114.49ft)
• Observe (63PPM/ 19PPF) - 13.9m(45.60ft)
• Recognize (125PPM/ 38PPF) - 7.0m(22.96ft)
• Identify (250PPM/ 76PPF) - 3.5m(11.48ft)

XNF-9010RVM Specifications PDF
