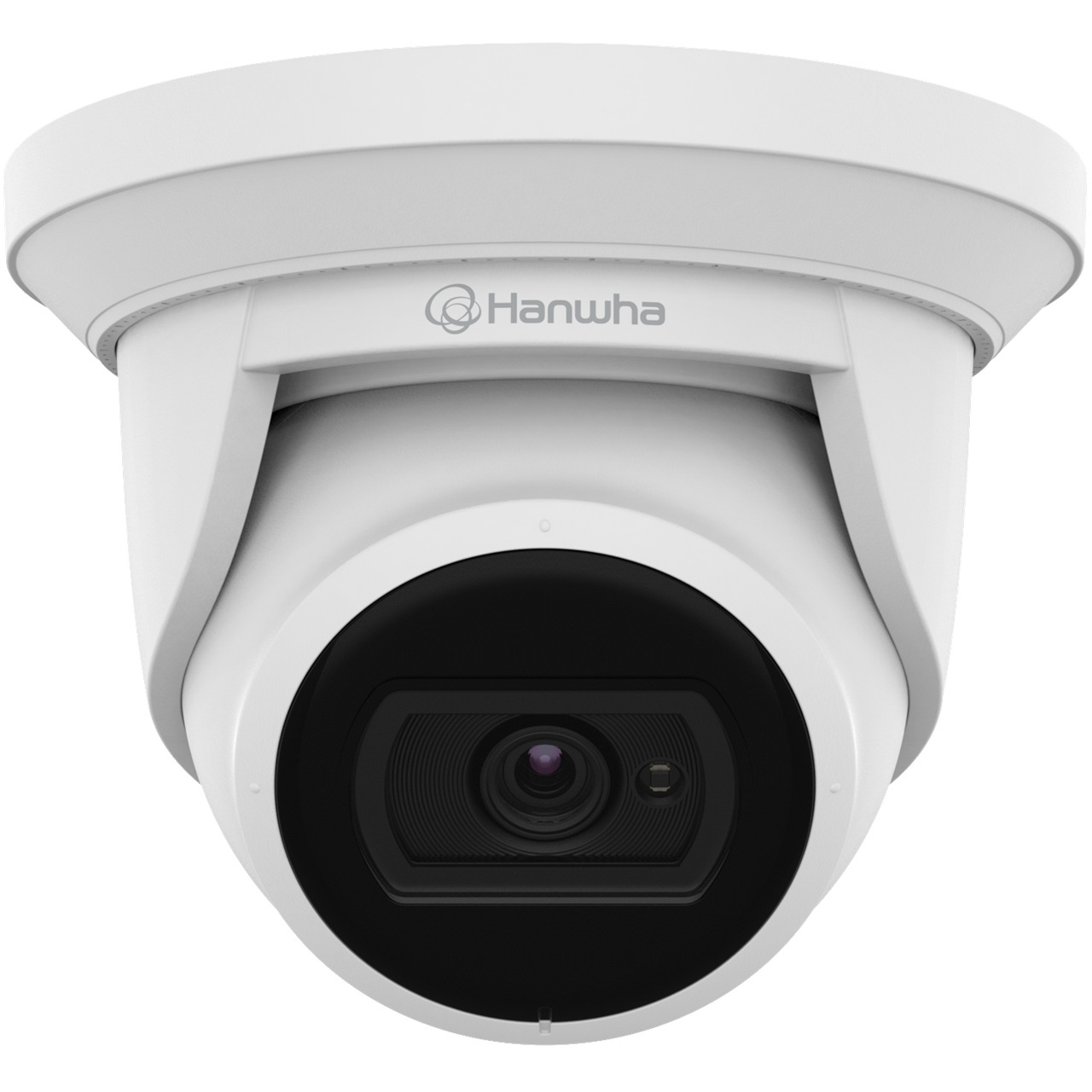

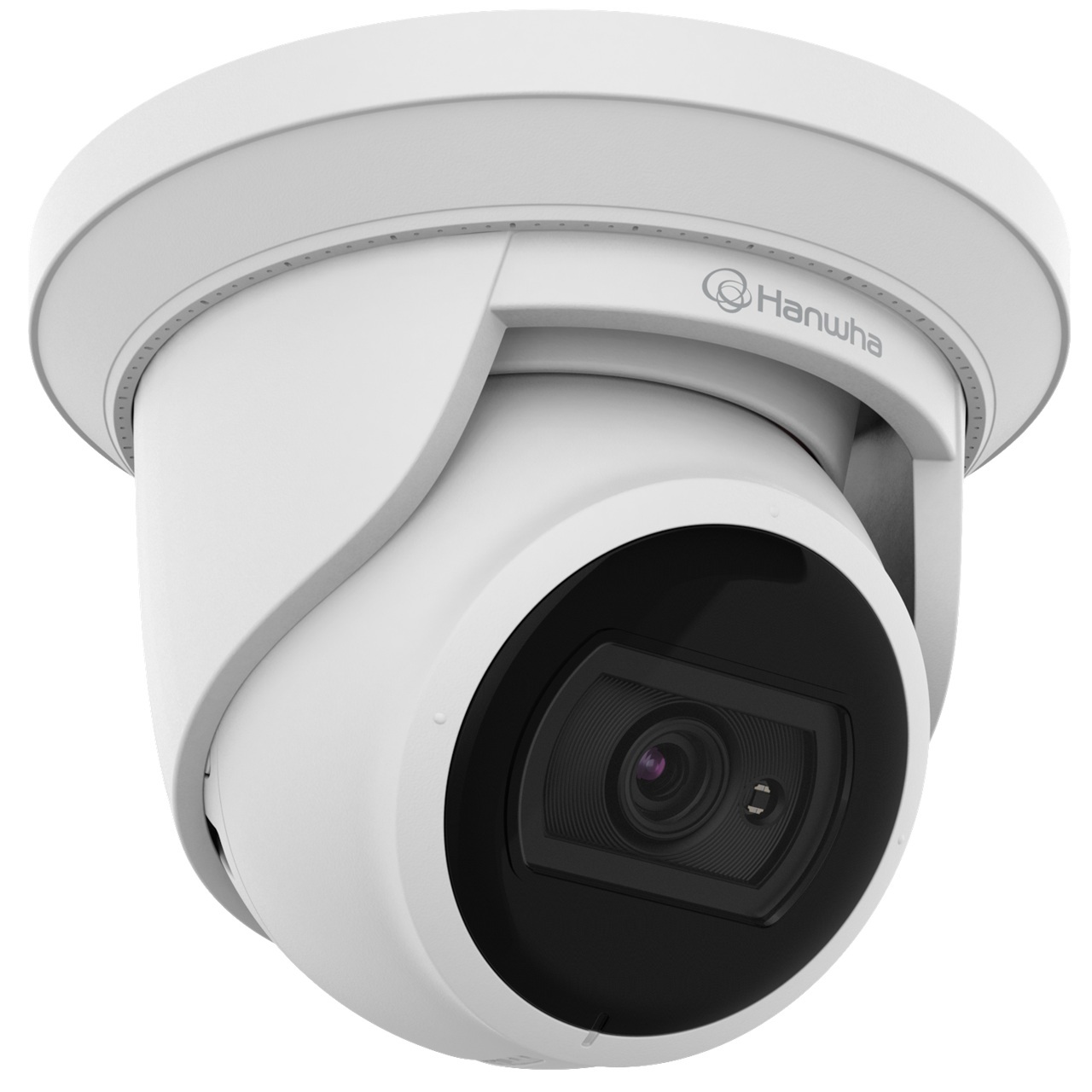

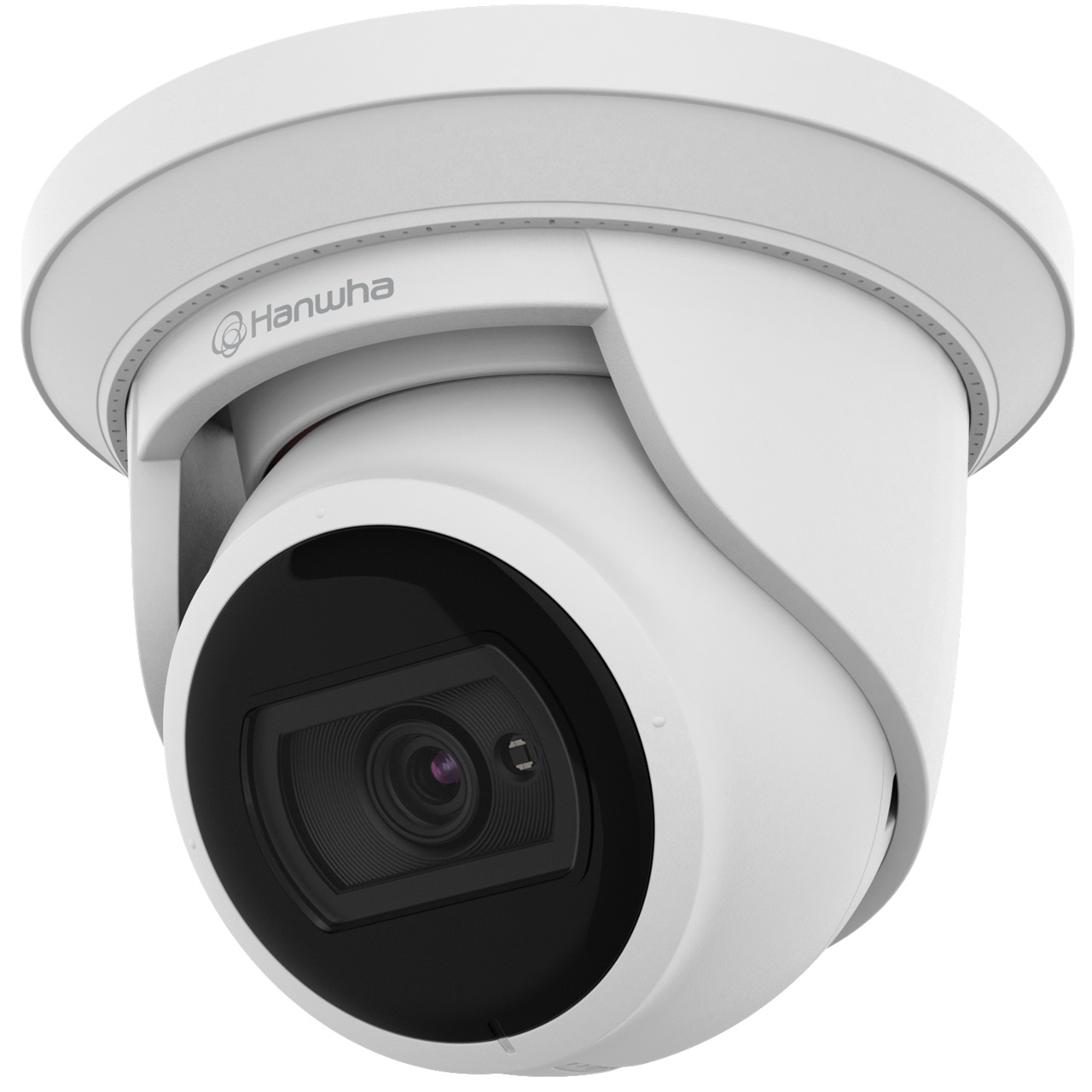

QNE-8011R Hanwha Techwin 2.8mm 30FPS @ 5MP Outdoor IR Day/Night WDR Eyeball IP Security Camera POE

Wisenet Q network outdoor vandal flateye camera, 5 MP @30fps, 2.8mm fixed lens, triple codec H.265/H.264/MJPEG with WiseStream, 120dB WDR, IR LEDs range 20m, defocus detection, hallway view, and SD card. IP67, IK10, PoE, white color.

Specifications

Video

• Imaging Device - 1/2.8" 5 MP CMOS
• Effective Pixels - 2592(H) x 1944(V)
• Minimum Illumination - Color : 0.15Lux (F 2.0, 1/30sec), BW : 0Lux (IR LED on)

Lens

• Focal Length (Zoom Ratio) - 2.8mm fixed focal
• Maximum Aperture Ratio - F2.0
• Angular Field of View - H : 104.4°/ V : 76.7°/ D : 136.1°
• Focus Control - Fixed

Pan/Tilt/Rotate

• Pan / Tilt / Rotate Range - 0˚~350˚ / -0˚~75˚ / 0˚~360˚

Operational

• IR Viewable Length - 65.62ft (20m)
• Camera Title - Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - 120dB
• Digital Noise Reduction - SSNR
• Motion Detection - 4ea, polygonal zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - Support
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view (90˚/270˚)
• Analytics - Defocus detection, Directional / Virtual Line detection, Motion detection, Enter/Exit, Tampering
• Alarm Triggers - Analytics, Network disconnect
• Alarm events - File upload via FTP and e-mail, Notification via e-mail, Handover, SD/SDHC/SDXC or NAS recording at event triggers

Network

• Ethernet - RJ-45 (10/100BASE-T)
• Video Compression - H.265/H.264: Main/High, MJPEG
• Resolution - 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360
• Maximum Framerate - H.265/H.264 : Maximum 30fps / MJPEG : Maximum 15fps
• Smart Codec - Manual (5ea area), WiseStream II
• Video Quality Adjustment - H.264/H.265 : Target bitrate level control, MJPEG : Target bitrate level control
• Bitrate Control - H.264/H.265 : CBR or VBR, MJPEG : VBR
• Streaming - Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
• Security - HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication(EAP-TLS, EAP-LEAP)
• Edge Storage - Micro SD/SDHC/SDXC 1 slot maximum 128GB
• Application Programming Interface - ONVIF Profile S/G/T, SUNAPI(HTTP API), Wisenet open platform
• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer - Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser : Google Chrome Supported Browser : MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari(Mac OS X only)
• Memory - 512MB RAM, 256MB Flash

Environmental

• Operating Temperature / Humidity - -22°F ~ +131°F (-30°C ~ +55°C) / Less than 90% RH * Start up should be done at above -20°C
• Storage Temperature / Humidity - -22°F ~ +140°F (-30°C ~ +60°C) / Less than 90% RH
• Certification - IP67, IK10

Electrical

• Input Voltage - PoE (IEEE802.3af, Class3)
• Power Consumption - PoE : Maximum 7.4W, typical 5.5W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product dimensions / weight - Ø4.92x3.44" (Ø125x87.35mm), 1.422 Ib (645g)

QNE-8011R Specifications PDF
