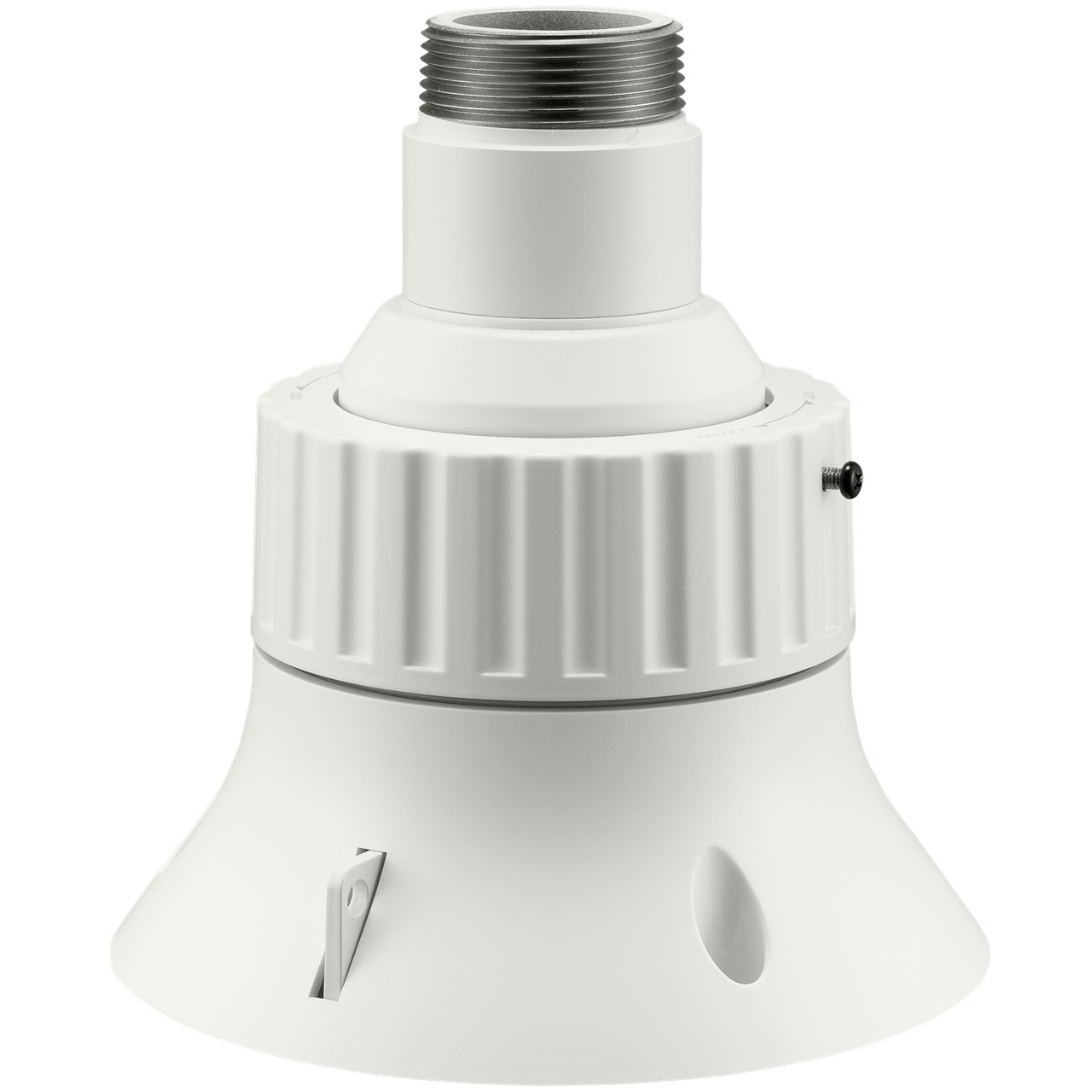

SBP-303HF Hanwha Techwin Built-in SFP Install Base for PTZ Cameras

RJ-45 to Fiber mounting accessory for PTZ

Specifications

Compatible Model

• Camera List - XNP-6550RH/XNP-6371RH, XNP-6320H/QNP-6230H

External Connection

• Alarm I/O - Input 4ea / Output 2ea
• Remote Control Interface - RS-485/422
• Audio - Input/Output, 3.5mm type
• CVBS - BNC Type, For Installation
• Power Line - 24V AC, 2-wire

Optical Characteristics

• Support SFP Voltage - 3.3V Typical
• Support SFP Current - 300mA Max.
• Support SFP Cage - Standard mini-SFP Cage(for 6.5mm pitch SFP)
• Support SFP Port Type - LC Type
• Required SFP Speed - 1250Mbps(For 1000Mbps Ethernet), 155Mbps(For 100Mbps Ethernet)
• Required SFP's BER(Bit Error Rate) - Max 10-12
• Transmission Method(Optical) - Mode Depends on SFP Module
• Optical Mode(Long/Short Wave) - Mode Depends on SFP Module
• Cable Insertion Loss(dB) - Mode Depends on SFP Module

Network Characteristics

• RJ-45 : Ethernet Speed - 100Mbps
• RJ-45 : Ethernet Physical Layer - 100 Base-T
• RJ-45 : Ethernet Standard IEEE - 802.3u Support
• Speed Transition(100-1000Mbps) - External Dip Switch
• Fiber : Default Speed - 1000Mbps
• Fiber : Ethernet Speed - 100Mbps, 1000Mbps
• Fiber : Ethernet Physical Layer - 100 Base-FX, 1000 Base-X
• Fiber : Ethernet Standard - IEEE 802.3u, IEEE 802.3z Support

Environmental

• Operating Temperature / Humidity - -50°C to +55°C / Less than 90% RH
• Ingress Protection - IP66
• Vandal Resistance - IK10

Electrical

• Power Consumption - 4.1A, 92W Max(Heater ON)
• Input Voltage / Current - 24VAC

Mechanical

• Color / Material - Aluminum
• Dimension (Ø x H) - Ø163.9 x H157.9mm, Ø163.9 x H187.9mm (with NPT-Coupling)
• Weight - 1.1kg, 1.4kg (with NPT-Coupling)

SBP-303HF Specifications PDF
