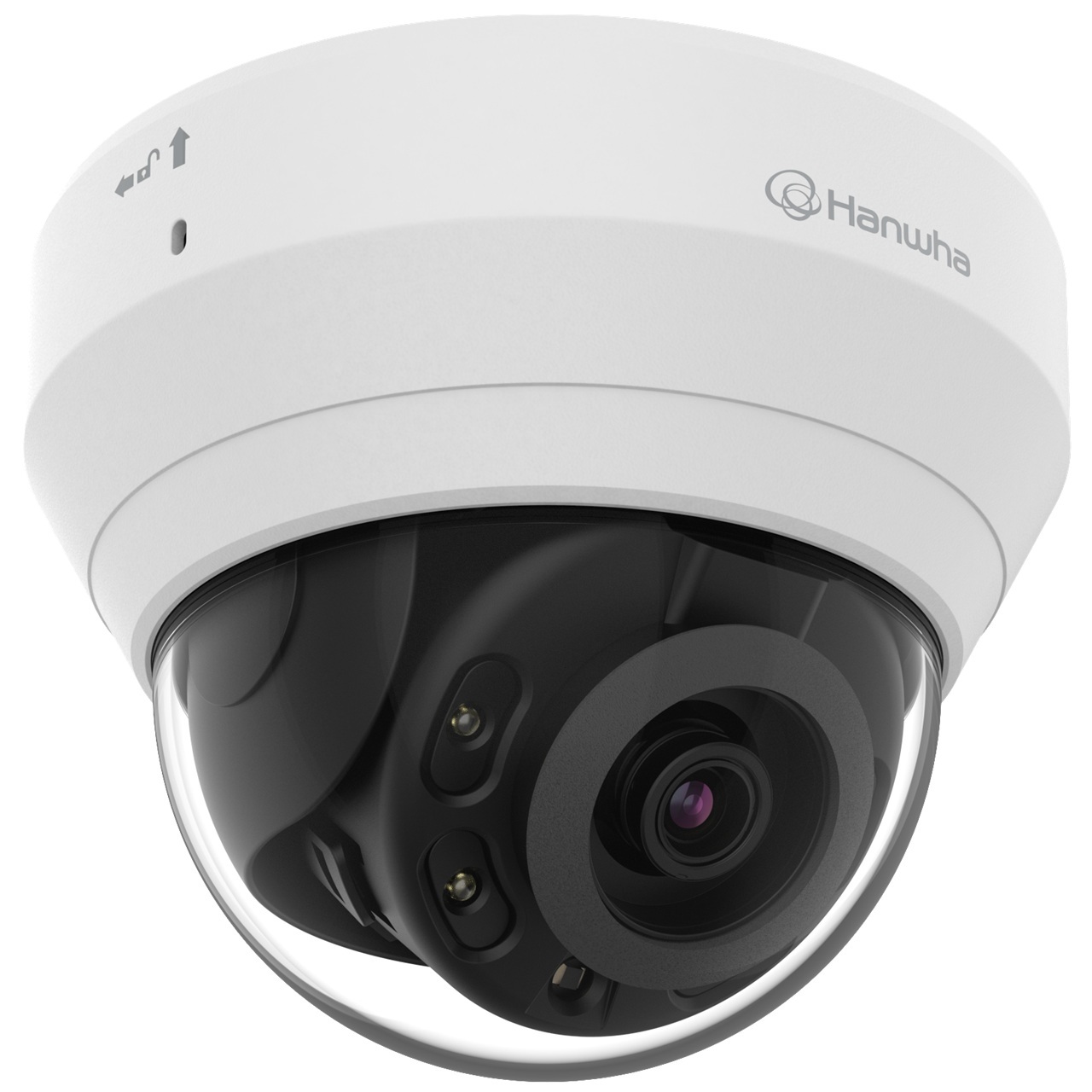

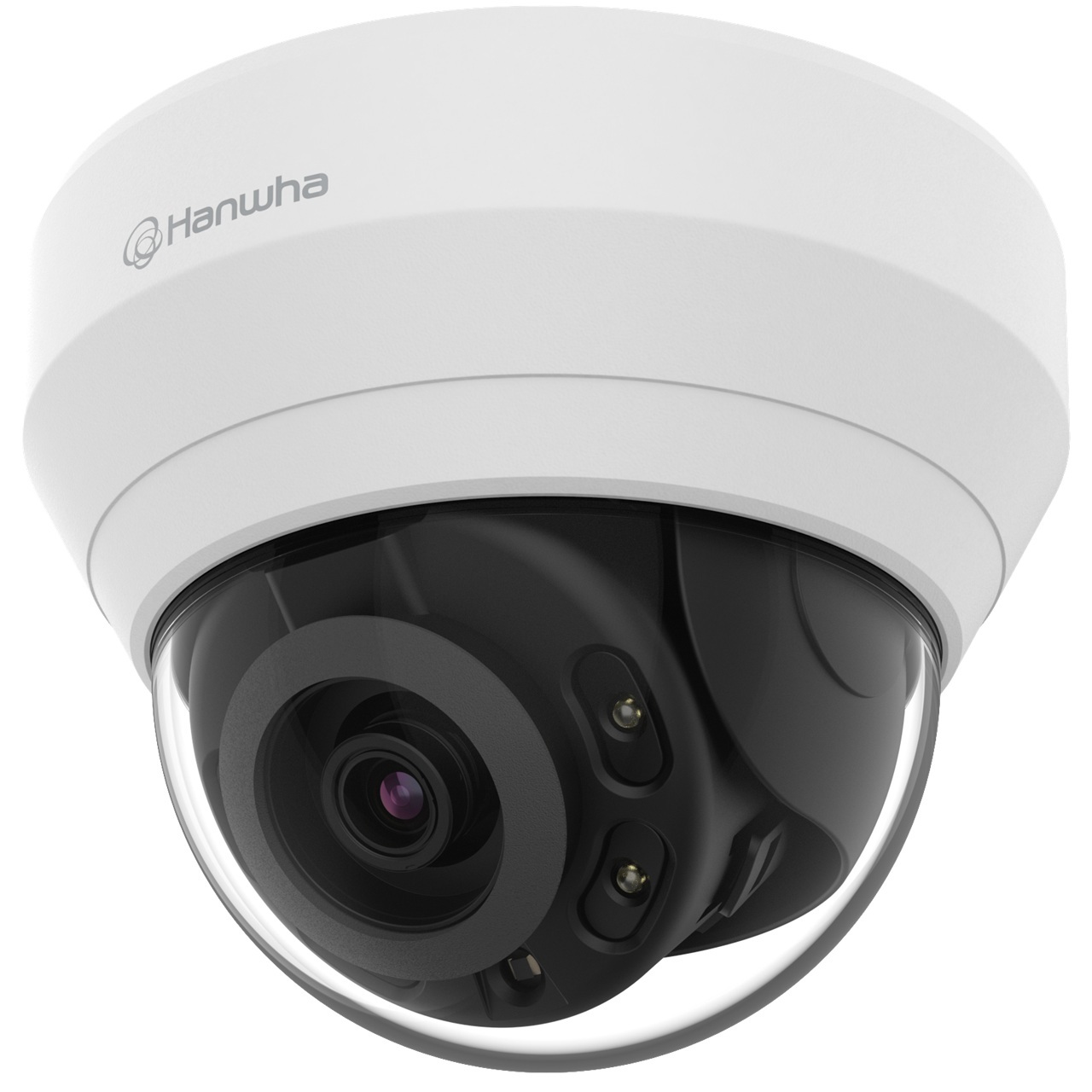

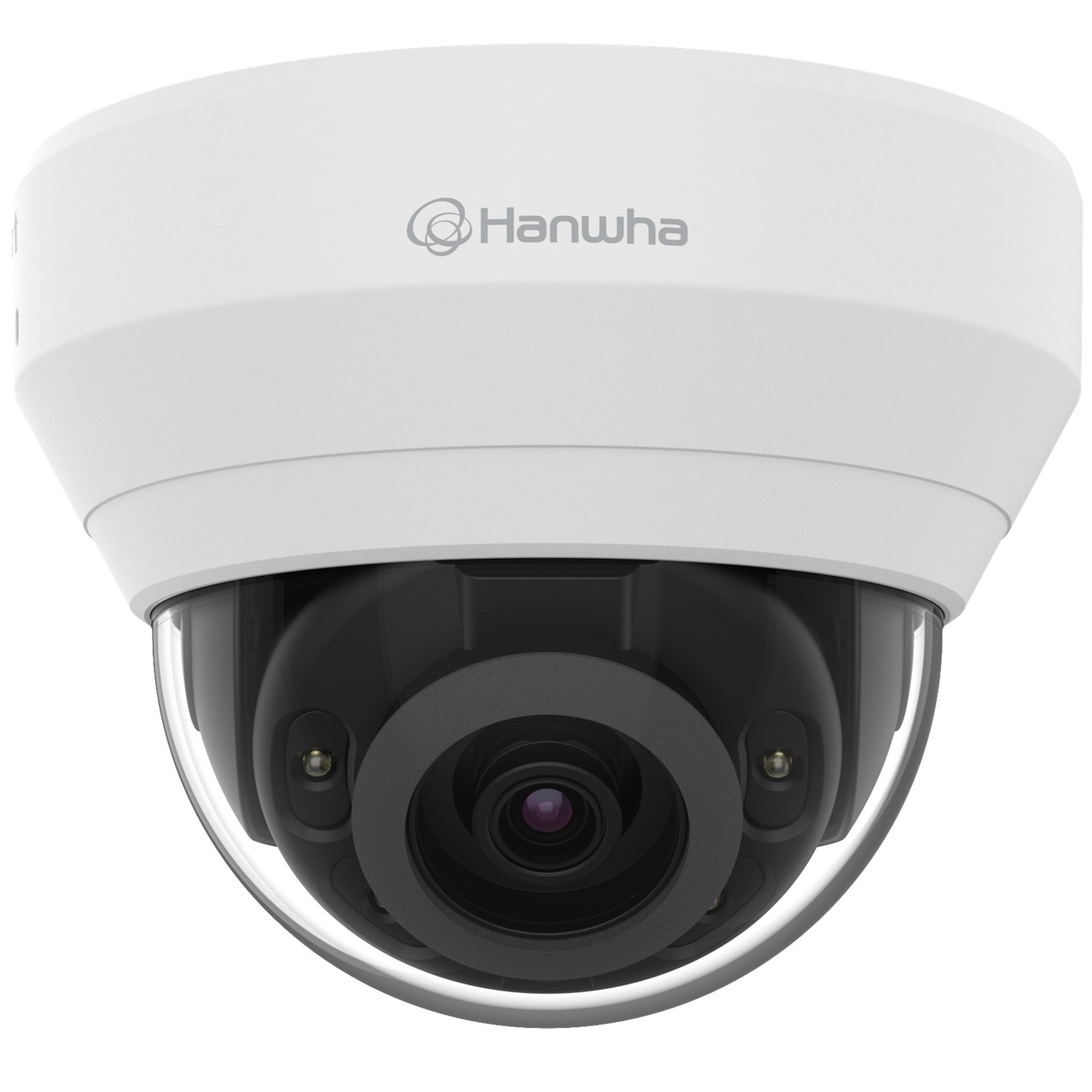

LND-6012R Hanwha Vision 2.8mm 30FPS @ 2MP Indoor IR Day/Night WDR Dome IP Security Camera PoE

Specifications

Video

• Imaging Device - 1/2.8" CMOS
• Resolution - 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
• Max. Framerate - H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 2fps at 1920x1080, Max.. 3fps at 1280x960, 1280x720, Max. 10fps at other resolution
• Min. Illumination - Color: 0.03Lux(F2.0, 1/30sec) BW : 0Lux (IR LED on)

Lens

• Focal Length (Zoom Ratio) - 2.8mm fixed focal
• Max. Aperture Ratio - F2.0
• Angular Field of View - H: 113.7° / V: 61.5° / D: 134.4°
• Min. Object Distance - 0.5m (1.64ft)
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~350° / 0°~67° / 0°~355°

Operational

• Camera Title - Displayed up to 15 characters
• Day & Night - Auto (ICR)
• Backlight Compensation - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNR
• Motion Detection - 4ea, rectangler zones
• Privacy Masking - 6ea, rectangular zones
• Gain Control - LOW/ MID/ HIGH
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti flicker (2~1/12,000sec)
• Video Rotation - Flip, Mirror, Hallway view(90°/270°)
• Analytics - Motion detection, Tampering,
• Alarm Triggers - Analytics, Network disconnect, Alarm input
• Alarm Events - File upload via FTP and e-mail Notification via e-mail SD/SDHC recording at event triggers
• IR Viewable Length - 20m(65.62ft)

Network

• Ethernet - RJ-45(10/100BASE-T)
• Video Compression - H.264: Main/Baseline/High, MJPEG
• Smart Codec - WiseStreamâ…¡
• Video Quality Adjustment - H.264: Target bitrate level control MJPEG: Quality level control
• Bitrate Control - H.264: CBR or VBR MJPEG: VBR
• Streaming - Unicast(6 users) / Multicast Multiple streaming (Up to 3 profiles)
• Protocol - IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
• Security - HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Application Programming Interface - ONVIF Profile S/G/T SUNAPI(HTTP API)

General

• Webpage Language - English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch
• Memory - 512MB RAM, 256MB Flash
• Edge Storage - Micro SD/SDHC 1slot 32GB

Environmental & Electrical

• Operating Temperature / Humidity - -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH
• Storage Temperature / Humidity - -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
• Input Voltage - PoE(IEEE802.3af, Class2)
• Power Consumption - Max 6.4W, Typical 5.0W

Mechanical

• Color / Material - White / Plastic
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø110x86mm(Ø4.33x3.39"), 270g
• Hanging Mount (Dome) - SBP-300HMW7

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - 25.1m(82.28ft)
• Observe (63PPM/ 19PPF) - 10.0m(32.91ft)
• Recognize (125PPM/ 38PPF) - 5.0m(16.46ft)
• Identify (250PPM/ 76PPF) - 2.5m(8.23ft)

LND-6012R Specifications PDF
