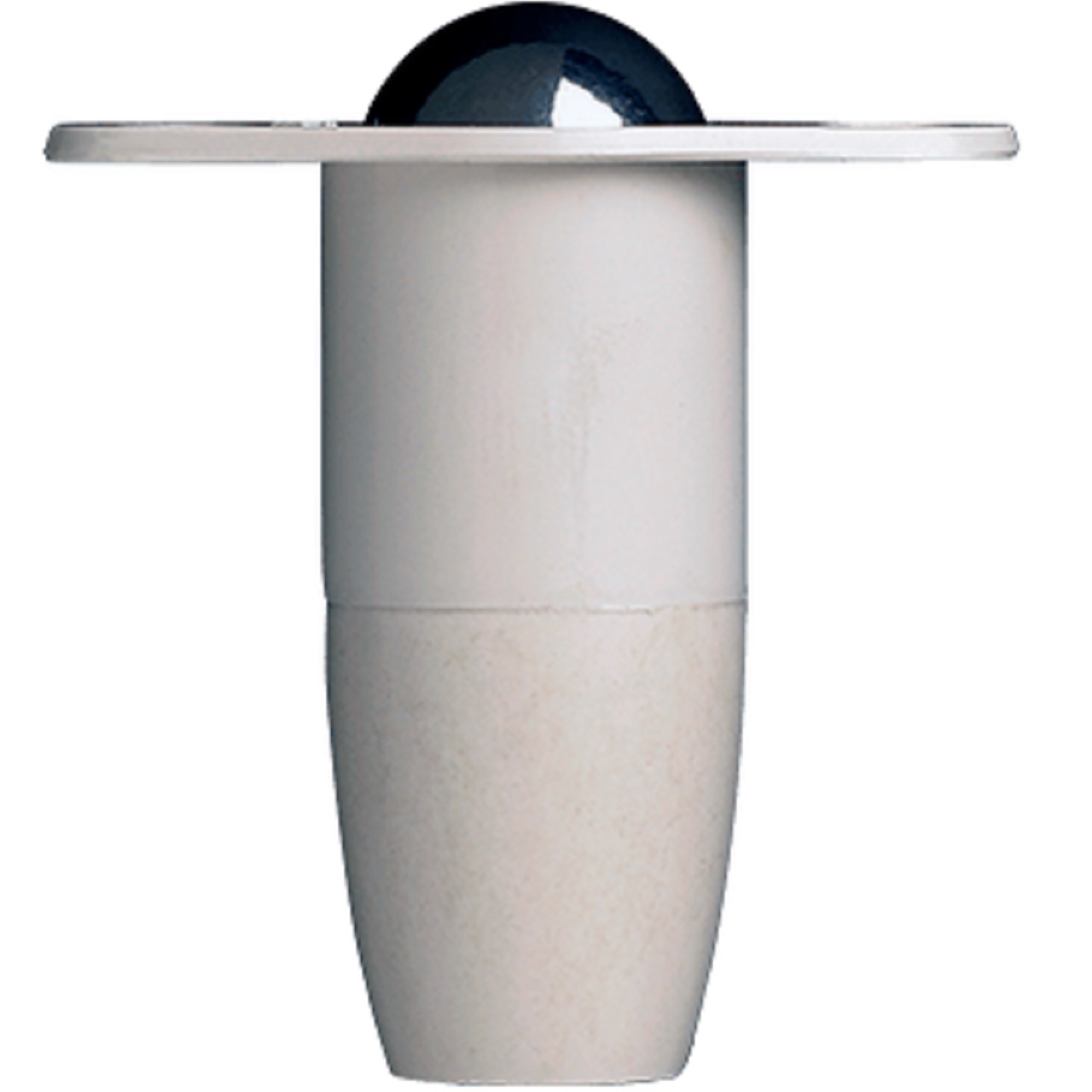

4430006-10 Potter RSW-21 5/8" NO Roller Ball Switch w/ 25" Lead - Gray - 10 Pack

Features

• Hardened stainless steeel ball
• 3mm pre-travel stroke
• Available in SPST or SPDT

Description

The RSW-21 is a roller ball type switch for a closed circuit application using a hardened stainless steel ball. It fits into a ¾” drilled hole for recessed mounting. The 5/8” diameter stainless steel ball’s overall travel stroke of 6.2mm allows for only 3mm operating stroke. Operating force is 400-500g. Lead wires are #22 and 25” long.

Specifications

• Model Number - RSW-21
• Color - Gray
• Stock Number - 4430006
• Contact - 22AWG 25” Lead
• Contact Rating - 10V
• Contact Type - Form A N.O.
• Max. Carry Current - 1.0 Amp
• Max. Switching Current - .4 Amp
• Breakdown Voltage - 200VDC
• Operating Force - 400-500g
• Pre-Travel Stroke - 3mm ± 1mm
• Overall Stroke - 5.2mm ± .5mm

4430006 Specifications PDF
