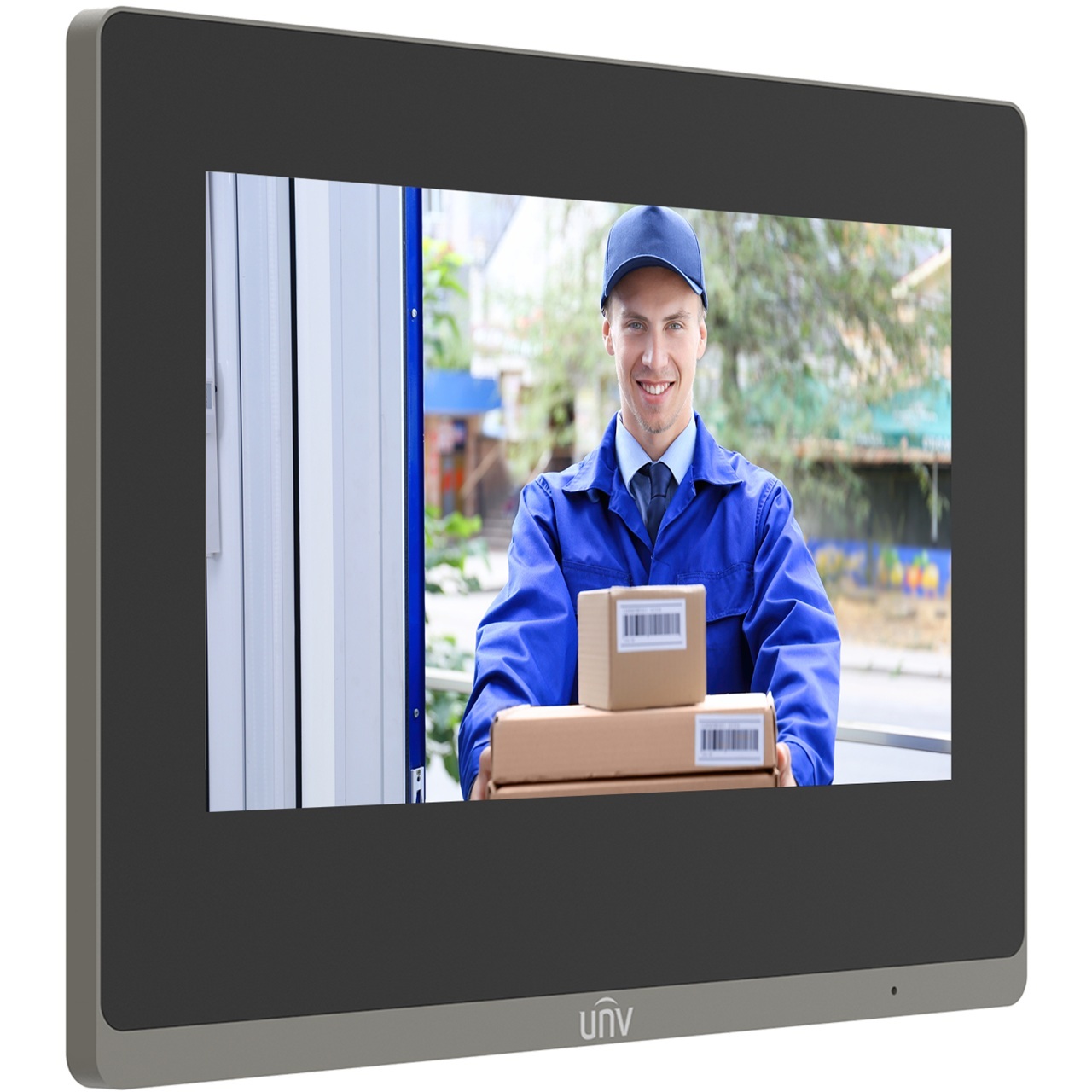

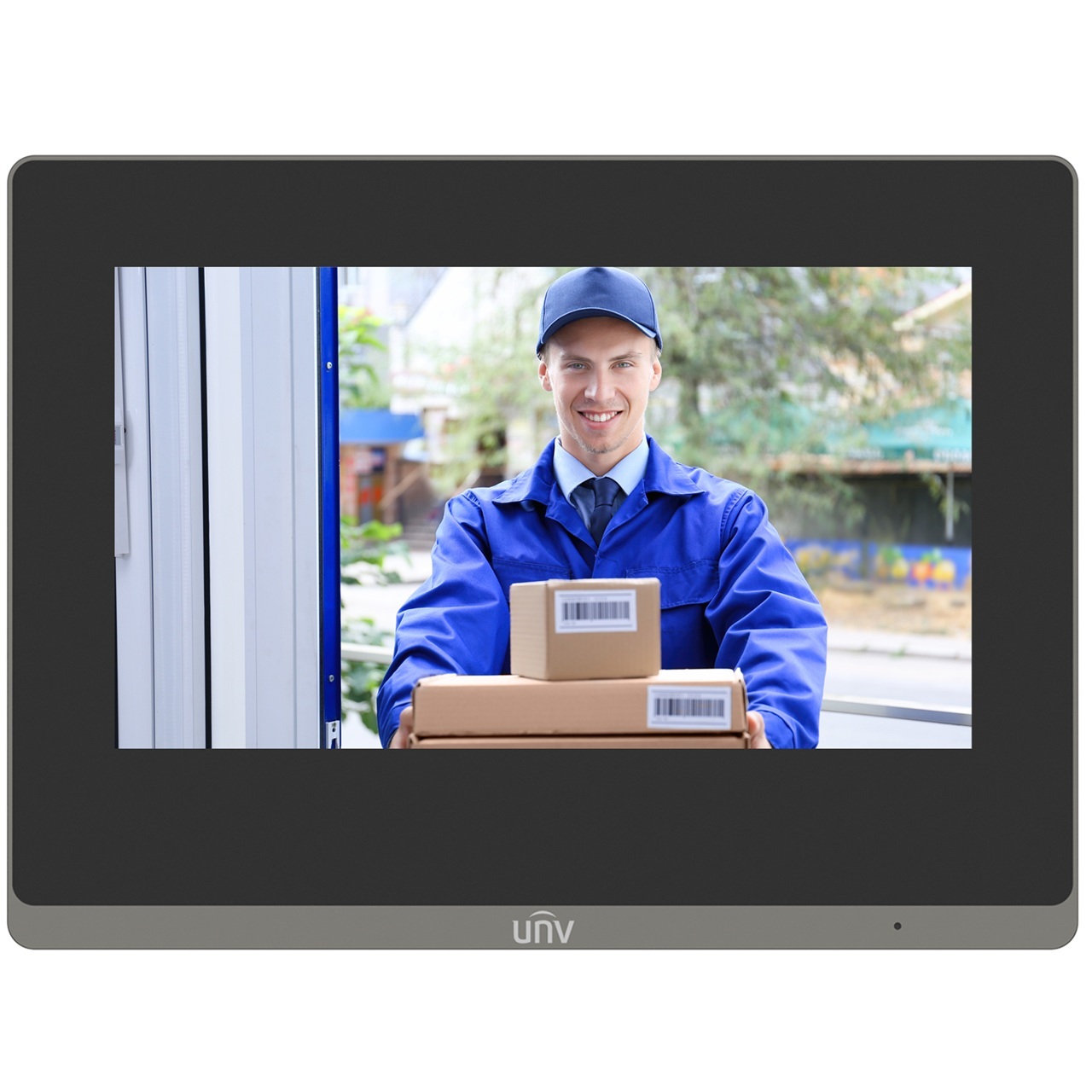

OEI-372S-H-W Uniview Wall Mounted 7-Inch Indoor Station(Touch Screen)

OEI-372S-H-W indoor station is one of the terminals in the digital building intercom system, with functions of video intercom, security alarm, network camera monitoring, etc., providing a safe and comfortable living environment for residents. It can be widely used in building systems such as smart communities, villas, and office parks.

Specifications

Hardware

• Power Supply - DC12V±25%,IEEE802.3af, Standard PoE
• Power Consumption -＜10W
• Screen - 7-inch ultra-thin TFT LCD screen
• Screen Resolution - 1024×600
• Operation System - Linux
• Audio Quality - Noise suppression, echo cancellation and AGC
• Audio Input - 1 built-in omnidirectional microphone
• Audio Output - 1 built-in speaker
• Audio Compression Standard - MP3 G711
• Audio Compression Bitrate - 128Kbps
• Interface - Power*1, network*1, Wi-Fi*1, RS485*1, IO output*2, IO input*8, TF card slot*1
• Network - 100Mbps network port, supports IEEE802.3af PoE power supply, WIFI4, 2.4GHZ
• Weight - 360g
• Dimensions (L x W x H) - 193.2mm×143mm×25mm
• Operating Environment - -10°C to +55°C, 10% to 90%, non-condensing, indoor

Basic Business

• Protocol - UNV private protocol
• Network protocol - TCP/IP, IPv4, HTTP, RTP, RTSP, NTP

Specification Index

• Capacity - 200 ScreenShots, 200 Zone Alarms, A total of 20 connected devices, including IPCs, entrance stations, NVRs (up to 2), and Doorbells
• Linked Indoor Station Capacity - 19 extensions

Compliance

• NDAA Compliant - Support

OEI-372S-H-W Specifications PDF
