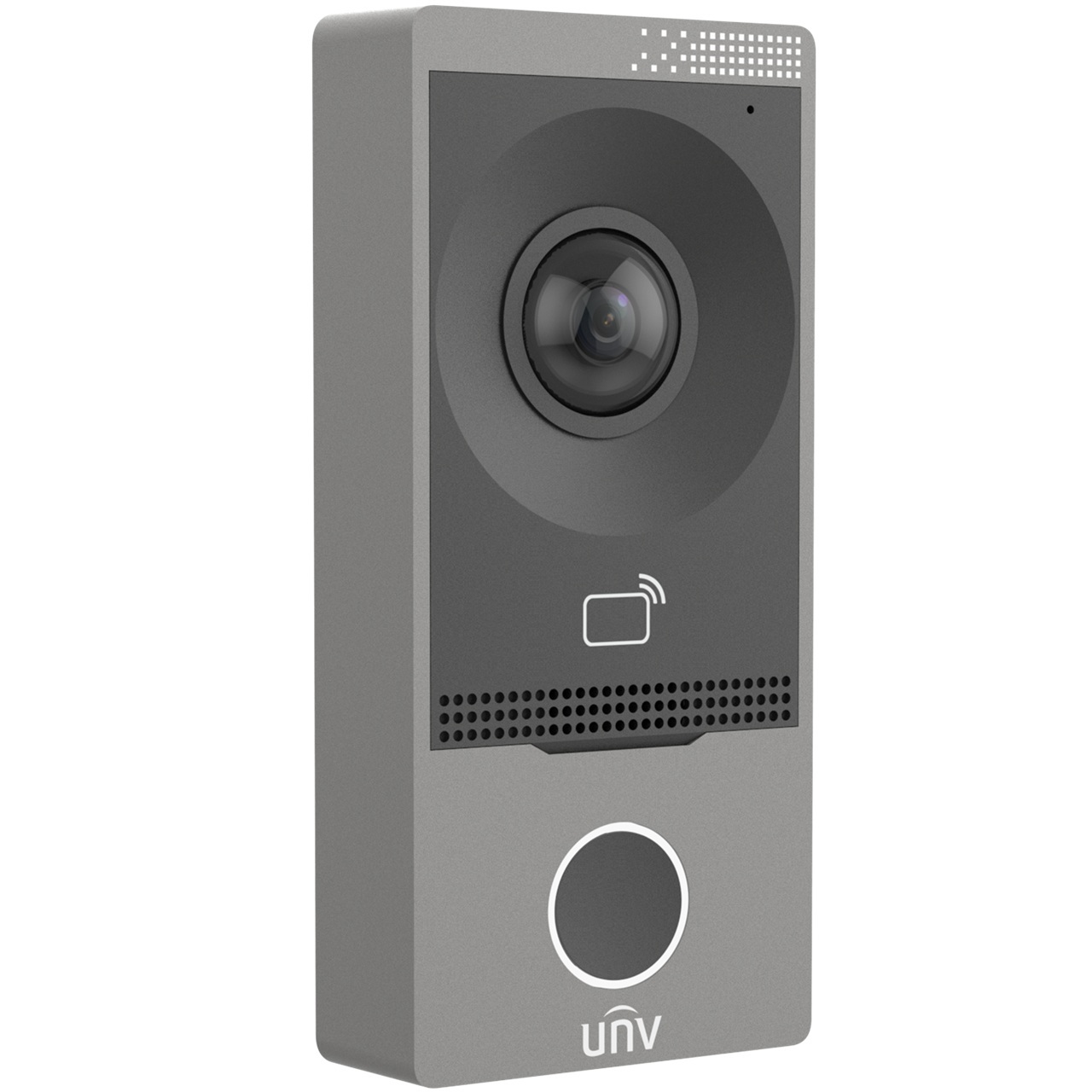

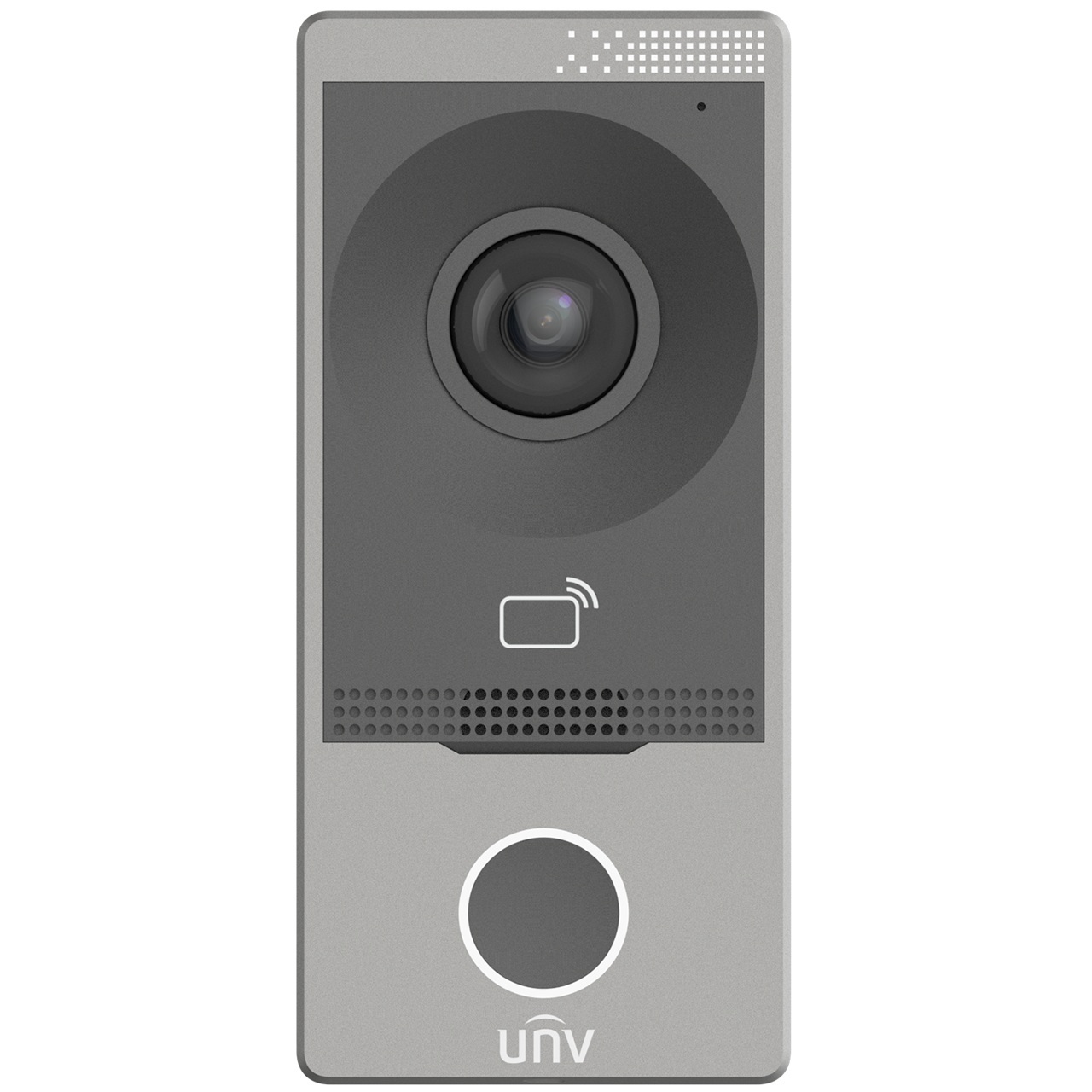

OEU-201B-HMK-W Uniview Villa Door Station(IC Card, WiFi)

OEU-201B-HMK-W is one of the terminal equipment of the digital building intercom system, with video intercom, security alarm, video surveillance, to provide a safe and comfortable living environment for residents. It can be used in villa residential building system.

Specifications

Hardware Specification

• Operation System - Linux
• Supplement Light - IR light(Adaptive infrared compensation)
• FOV - Horizontal:124.3°, Vertical:67.5°, Diagonal:147.2°
• Power Consumption - ＜10W
• Volume Adjustment - Adjustable
• Audio Quality - Noise suppression, echo cancellation and AGC
• Audio Input - 1 built-in omnidirectional microphone
• Audio Output - 1 built-in speaker
• Audio Compression Standard - PCM, G711, MP3
• Audio Compression Bitrate - 128Kbps
• Protection Level - IP65 (Apply waterproof glue to the gap between the device and the wall. For more information, see the quick guide.)
• Power Supply - DC 12V±25% input;IEEE802.3af, Standard PoE
• Weight - 0.261Kg
• Mount Method - Wall mounted
• Network - 100Mbps network port, supports IEEE802.3af PoE power supply
• Interface - Power *1, network port *1, WIFI, RS485, door lock interface *2, IO input *4
• Dimensions (L x W x H) - 78mm×170mm×34mm
• Operating Environment - ï¹£30℃~ï¹¢60℃,10%～90%, non-condensing, outdoor
• Operating Frequency - 13.56MHz

Basic Business

• WDR - Support DWDR
• Protocol - UNV private protocol
• Button - 1 physical button
• Network protocol - TCP/IP, IPv4, HTTP, RTP, RTSP, NTP

Specification Index

• Card Capacity - 2000
• Linked Indoor Station Capacity - 20

Compliance

• NDAA Compliant - Support
