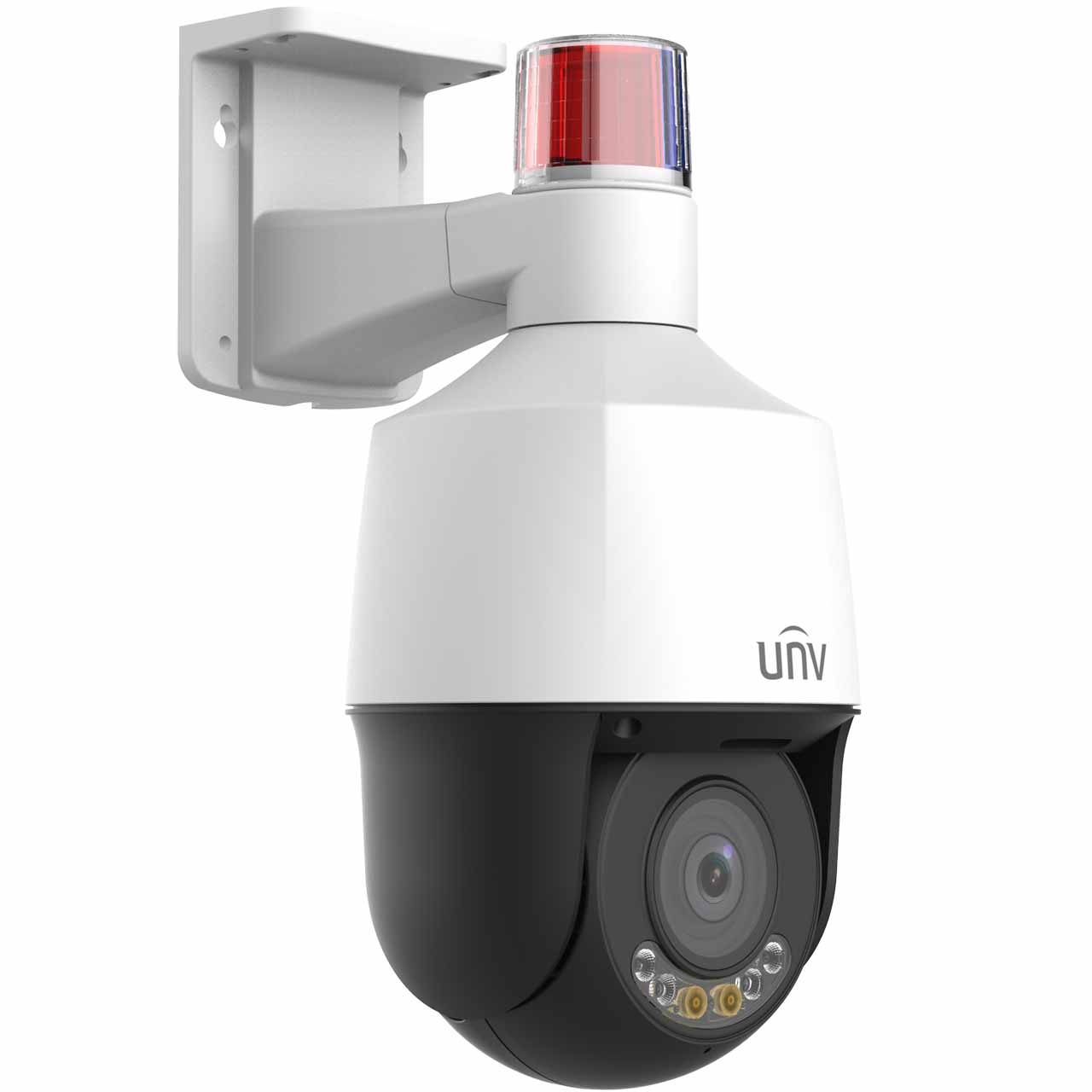

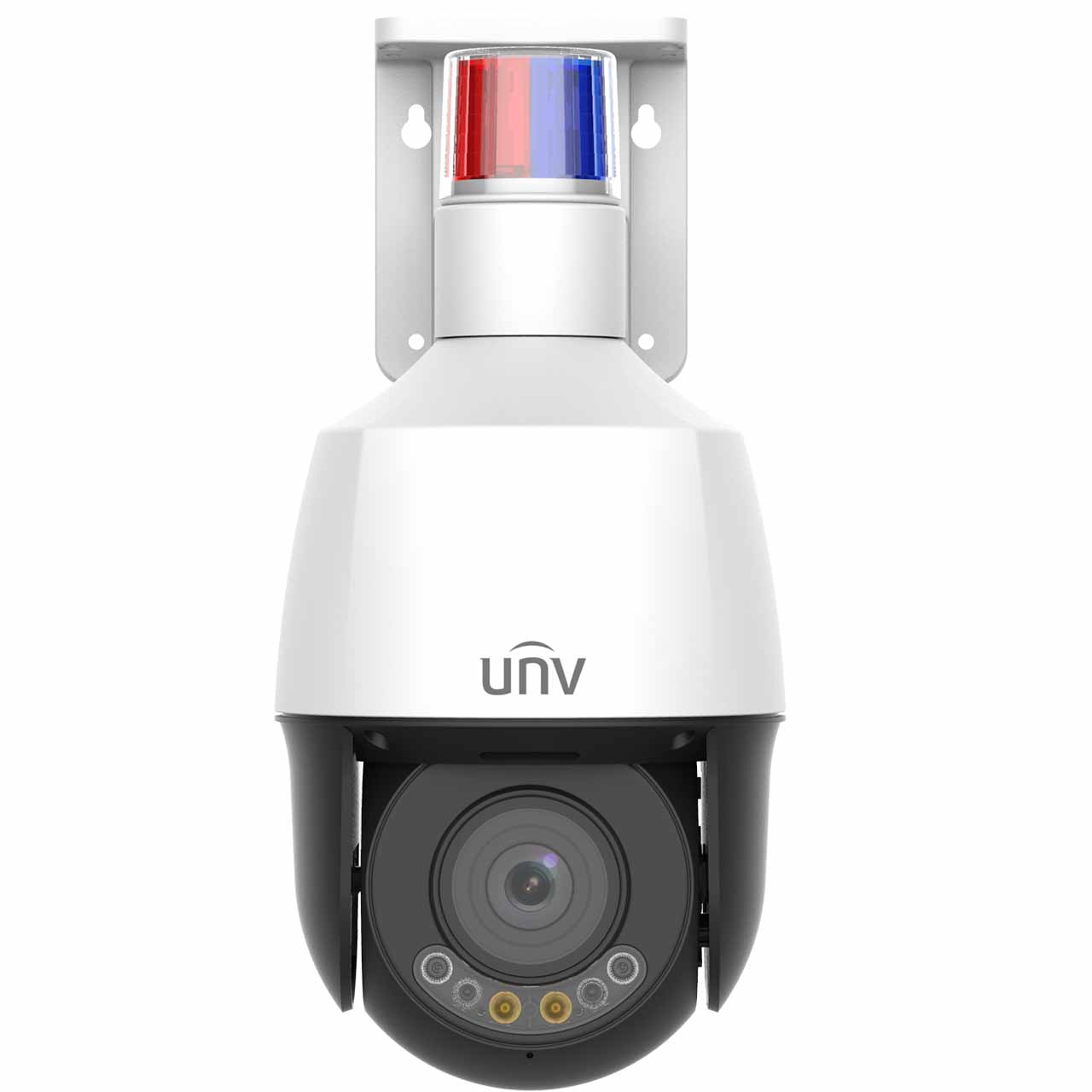

IPC6325LFW-AX5C-VG Uniview Prime Series 2.7~ 13.5mm 5x Optical Zoom 30FPS @ 5MP LightHunter Outdoor IR PTZ IP Security Camera 12VDC/PoE

Specifications

• Model - IPC6325LFW-AX5C-VG
• Max Resolution - 5 MP
• Sensor - 1/2.7" CMOS
• Min. Illumination - Color: 0.005 Lux (F1.2, AGC ON), 0 Lux with IR
• Day/Night - IR-cut filter with auto switch (ICR)
• Shutter - Auto/Manual, 1 to 1/100000 s
• WDR - 120 dB
• S/N - >56 dB
• Focal Length - 2.7 to 13.5 mm
• Optical Zoom - 5X
• Iris - F1.2
• Field of View (H) - 106.9° to 30.6°
• Field of View (V) - 56° to 17.7°
• Field of View (D) - 131.5° to 36.1°
• DORI Distance (Detect) - 70.9 m to 247.5 m (232.5 ft. to 812.0 ft)
• DORI Distance (Observe) - 28.4 m to 99.0 m (93.2 ft. to 324.8 ft)
• DORI Distance (Recognize) - 14.2 m to 49.5 m (46.5 ft. to 162.4 ft)
• DORI Distance (Identify) - 7.1 m to 24.8 m (23.3 ft. to 81.4 ft)
• Privacy Mask - Up to 4 areas
• Video Compression - Ultra 265, H.265, H.264, MJPEG
• Frame Rate - Main Stream: 5 MP (2880 × 1620), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; Third Stream: D1 (720 × 576), max. 30 fps
• Video Bit Rate - 128 Kbps to 16 Mbps
• U-code - Support
• ROI - Support
• Video Stream - Triple streams
• OSD - Up to 8 OSDs
• Auto Tracking - Support, target filtering: human only
• Smart Intrusion Prevention - Cross line detection, intrusion detection, enter area detection, leave area detection; supports false alarm filtering and classification of human, non-motor vehicle and vehicle
• People Counting - Support people flow counting and crowd density detection
• Exception Detection - Object removed, Object Left Behind, Scene change, Defocus detection
• White Balance - Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
• Digital Noise Reduction - 2D/3D DNR
• Flip - Normal, Flip vertical, Flip horizontal, 180°
• HLC - Support
• BLC - Support
• Smart IR - Support
• Defog - Digital defog
• Light On/Off Control - Auto/Manual
• Wavelength - 850 nm
• Illumination Distance (IR) - 50 m (164.0 ft)
• Illumination Distance (Warm Light) - 15 m (49.2 ft)
• Basic Detection - Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
• General Function - Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
• Audio Compression - G.711U, G.711A
• Audio Bitrate - 128 Kbps
• Two-way Audio - Support
• Suppression - Support
• Sampling Rate - 16 kHz
• Edge Storage - MicroSD, up to 512 GB
• Network Storage - ANR, NAS (NFS)
• Protocols - TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
• Compatible Integration - ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
• Security - Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
• Client - EZStation, UNV-Link, UNV-Link Pro
• Web Browser - Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
• Number of Presets - 1024
• Preset Patrol - 16 patrols, up to 64 presets for each patrol
• Patrol Stay Time - 120 s to 1800 s
• Home Position - Support
• Pan Range - 0° to 345°
• Tilt Range - -10° to 100°
• Pan Speed - 1°/s to 50°/s
• Tilt Speed - 1°/s to 40°/s
• Audio I/O - 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
• Alarm I/O - 1/1
• Built-in Mic - Support
• Built-in Speaker - Support
• Network - 1 × RJ45 10 M/100 M Base-TX Ethernet
• EMC - CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021)
• Safety - CE LVD (EN 62368-1: 2020+A11: 2020); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment Certification - CE-ROHS (2011/65/EU; (EU)2015/863)
• Protection - IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
• Power - DC 12 V (±25%), PoE (IEEE 802.3at)
• Power Consumption - 18 W
• Power Interface - Ø5.5 mm coaxial power plug
• Dimensions - 185 mm × 133 mm × 286 mm (7.3" × 5.2" × 11.3") (L × W × H)
• Weight - 1.32 kg (2.91 lb)
• Working Environment - -30°C to 60°C (-22°F to 140°F), Humidity: ≤95% RH (non-condensing)
• Storage Environment - -40°C to 70°C (-40°F to 158°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection - 2 KV
• Reset Button - Support
• Heater - Support
• Web Client Language - 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
• Configurable P/N - Support
