EK-S31P4T44T1-V3 Uniview Easy S3-P Series 4 Channel NVR 64Mbps Max Throughput – 1TB HDD with 4 Port PoE with 4 x EC-T4F28M-V3 4MP Turret IP Security Camera

Specifications

Video/Audio Input

• IP Video Input - 4-ch

Network

• Incoming Bandwidth - 64Mbps
• Outgoing Bandwidth - 48Mbps
• Remote Users - 128
• Protocols - TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP

Video/Audio Output

• HDMI/VGA Output
  • HDMI - 30fps @ 4K (3840x2160), 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
  • VGA - 60fps @ 1920x1080p, 50fps @ 1920x1080p, 60fps @ 1600x1200, 60fps @ 1280x1024, 60fps @ 1280x720, 60fps @ 1024x768
• Recording Resolution - 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF
• Audio Output - 1-ch, RCA
• Audio Compression - G.711A, G.711U
• Synchronous Playback - 4-ch
• Liveview display - 1/4
• Corridor Mode Screen - 3/4

Snapshot

• FTP/Schedule/Event Snapshot - 1-ch snapshot, up to D1 resolution

Decoding

• Decoding format - Ultra 265, H.265, H.264
• Live view /Playback - 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability - 1 x 30fps @ 4K, 4 x 25fps @ 5MP, 4 x 25fps @ 4MP, 4 x 25fps @ 3MP, 4 x 30fps @ 1080p

Hard Disk

• SATA - 1 SATA interface
• Capacity - up to 8TB for each disk (The maximum HDD capacity varies with environment temperature)

Smart

• VCA Detection by Camera - Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
• VCA Search - Face Search, Behavior Search

General Alarm

• General Alarm - Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
• Alert Alarm - IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface - 1 RJ-45 10M/100M self-adaptive Ethernet Interface
• USB Interface - Rear panel: 2 x USB2.0

PoE

• Interface - 4 RJ-45 10M/100Mself-adaptive Ethernet Interface
• Max Power - Max 30W for single port Max 54W in total
• Supported Standard - IEEE 802.3at, IEEE 802.3af

General

• Power Supply - 48V DC, Power Consumption: ≤9 W( without HDD )
• Working Environment - +14°F ~ +131°F (-10°C ~ + 55°C), Humidity ≤ 90% RH(non-condensing)
• Dimensions(WxDxH) - 10.2" x9.4" x1.8" (260mm x 240mm x 46mm)
• Weight ( without HDD ) - 2.43 lb (≤ 1.1 Kg)

Certification

• Certification - CE, FCC, UL, RoHS, WEEE
• CE - EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
• FCC - Part15 Subpart B, ANSI C63.4

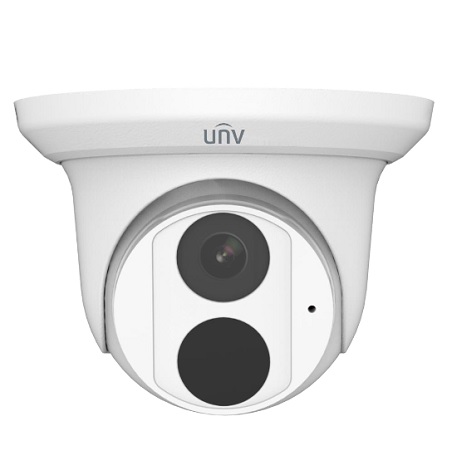

EC-T4F28M Specifications

Camera

• Sensor - 1/2.9", 4.0 megapixel, progressive scan, CMOS
• Min. Illumination - Colour: 0.01Lux (F2.0, AGC ON), 0Lux with IR
• Day/Night - IR-cut filter with auto switch (ICR)
• Shutter - Auto/Manual, 1 ~ 1/100000s
• Adjustment angle - Pan: 0° ~ 360° , Tilt: 0° ~ 75°, Rotate: 0° ~ 360°
• S/N - >52dB
• WDR - 120dB

Lens

• Lens Type - 2.8mm @ F2.0
• Angle of View (H) - 101.5°
• Angle of View (V) - 55.6°
• Angle of View (D) - 111.6°

DORI

• DORI Distance
  • Lens (mm) - 2.8
  • Detect (m) - 63.0
  • Observe (m) - 25.2
  • Recognize (m) - 12.6
  • Identify (m) - 6.3

Illuminator

• IR Range - Up to (30m) 98ft IR range
• Wavelength - 850nm
• IR On/Off Control - Auto/Manual

Video

• Video Compression - Ultra 265, H.265, H.264, MJPEG
• H.264 code profile - Baseline profile, Main profile, High profile
• Frame Rate
  • Main Stream - 25fps @ 4MP (2560 x 1440), 30fps @ 3MP (2304 x 1296), 30fps @ 1080P (1920 x 1080), 30fps @ 720P (1280 x 720)
  • Sub Stream - 30fps @ 4CIF (720 x 576), 30fps @ (640 x 360), 30fps @ 2CIF(704 x 288), 30fps @ CIF(352 x 288)
• Video Bit Rate - 128 Kbps~6144 kbps
• U-code - Supported
• OSD - Up to 4 OSDs
• Privacy Mask - Up to 4 areas
• ROI - Up to 8 areas


• White Balance - Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction - 2D/3D DNR
• Smart IR - Support
• Flip - Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping - N/A
• HLC - Supported
• BLC - Supported
• Defog - Digital Defog

Events

• Basic Detection - Motion detection, Tampering alarm, Audio detection, Cross line and Intrusion
• General Function - Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Storage

• Edge Storage - Micro SD, up to 128GB
• Network Storage - ANR, NAS(NFS)

Network

• Protocols - IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
• Compatible Integration - ONVIF (Profile S, Profile G, Profile T), API , SDK
• User/Host - Up to 32 users. 2 user levels: administrator and common user
• Security - Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client - EZStation, EZView, EZLive
• Web Browser - Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

• Network - 1 * RJ45 10M/100M Base-TX Ethernet

Certification

• EMC - FCC: FCC Part 15
• Safety - CE: EN 60950-1, UL: UL60950-1, IEC 60950-1

General

• Power - DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 4.0W
• Power Interface - Ø 5.5mm coaxial power plug
• Dimensions - Φ5.0" x 3.7"
• Weight - .66 lbs
• Material - Metal+Plasitc
• Working Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
• Strorage Environment - -22°F ~ 140°F (-30°C ~ 60°C), Humidity: ≤95% RH (non-condensing)
• Surge Protection - 4KV
• Reset Button - N/A

EK-S31P4T44T1-V3 Specifications PDF
