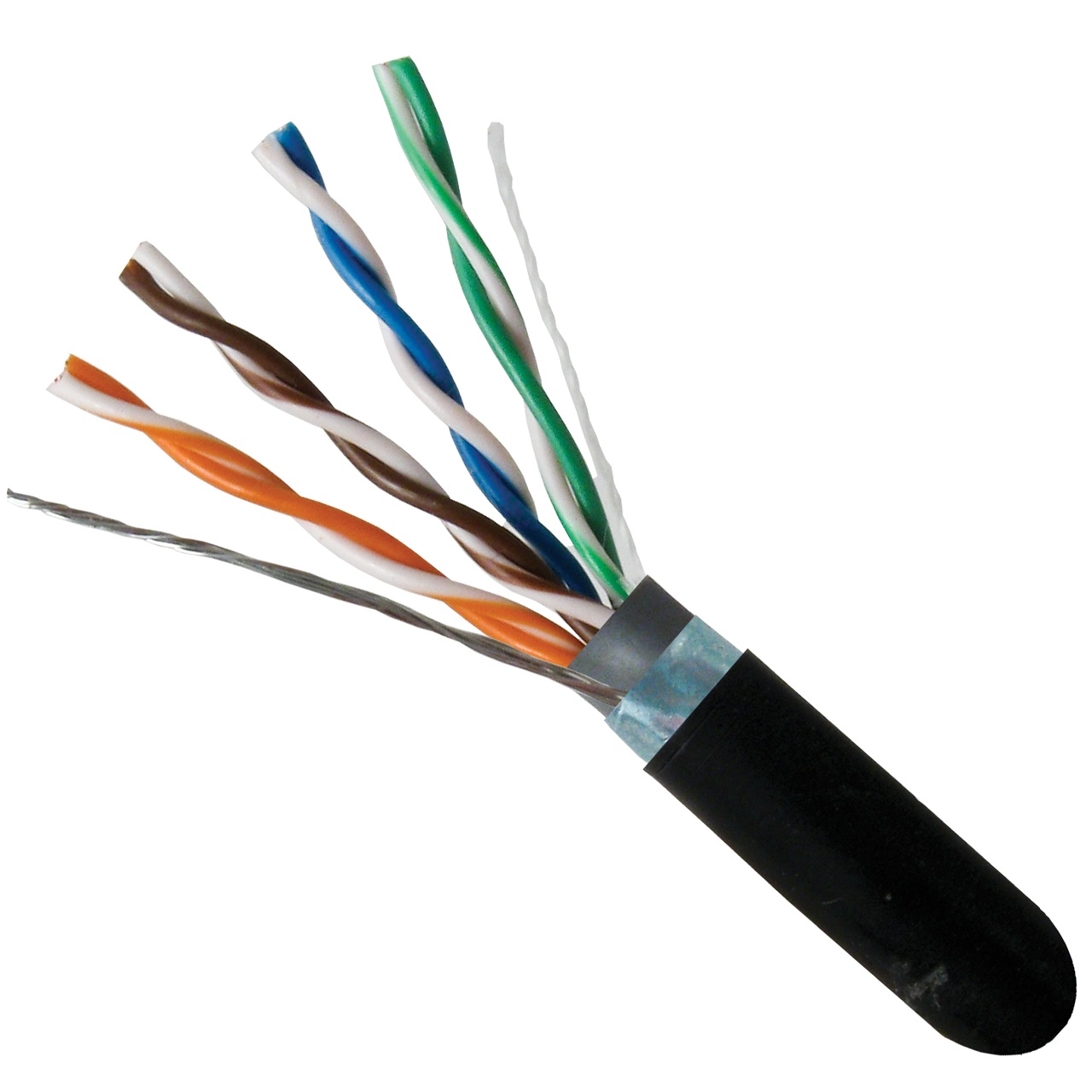

059-490/WS/CMXT Vertical Cable 059-490 Series 24 AWG 4 Shielded Twisted Pair Solid Bare Copper CMXT Non-Plenum Cat5e Cable 1000' Wooden Spool - Black

Specifications

• Part Number - 059-490/WS/CMXT

TRANSMISSION PERFORMANCE

• Meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications

Construction

• Pairs: - 4
• Conductors: - 8
• Rip Cord: - 1
• Screen: - Foiled (F/UTP)

Conductors

• Material: - Solid Bare Annealed Copper
• Size: - 24 AWG

Insulation

• Material: - PE
• Diameter: - 0.04 in. (0.91 mm)
• Average thickness: - 0.0078 in (0.20 mm)
• Min. point thickness: - 0.0074 in. (0.19 mm)
• Color coding:
  • Pair 1: - White-Blue/Blue
  • Pair 2: - White-Orange/Orange
  • Pair 3: - White-Green/Green
  • Pair 4: - White-Brown/Brown

Inner Jacket

• Material: - Polyvinyl Chloride (PVC)
• Outer diameter: - 0.19 in. (4.80 mm)
• Average thickness: - 0.0157 in. (0.40 mm)
• Min. point thickness: - 0.0141 in. (0.36 mm)

Outer Jacket

• Material: - Low Smoke Zero Halogen (LSZH)
• Outdoor rating: - UV-resistant
• Outer diameter: - 0.24 in. (6.20 mm)
• Average thickness: - 0.0236 in. (0.60 mm)
• Min. point thickness: - 0.0212 in. (0.54 mm)
• Marking: - VERTICAL 4001453 cETLus VERIFIED CMX F/UTP 4PR 24AWG OUTDOOR DIRECT BURIAL UV LSZH CAT5E 350MHz ANSI/TIA-568.2-D RoHS XXXXFT

Electrical

• Voltage rating: - 60 VRMS

Mechanical

• Before Tensile Strength (Mpa): - ≥13.8 MPa
• Elongation After Aging (%): - ≥100
• Aging Conditions (º C × h): - 100x168
• Tensile Strength After Aging (Mpa): - ≥85% of unaged
• Elongation After Aging (%): - ≥50% of unaged
• Cold Bend (-40±2º Cx4hrs): - No Crack

Safety

• FPA 70 (NEC) fire rating: - CMX

Environmental

• Operating temperature: - -40 °F–167 °F (-40 °C–75 °C)
• Weight - 34.5 lb (15.6 kg)
