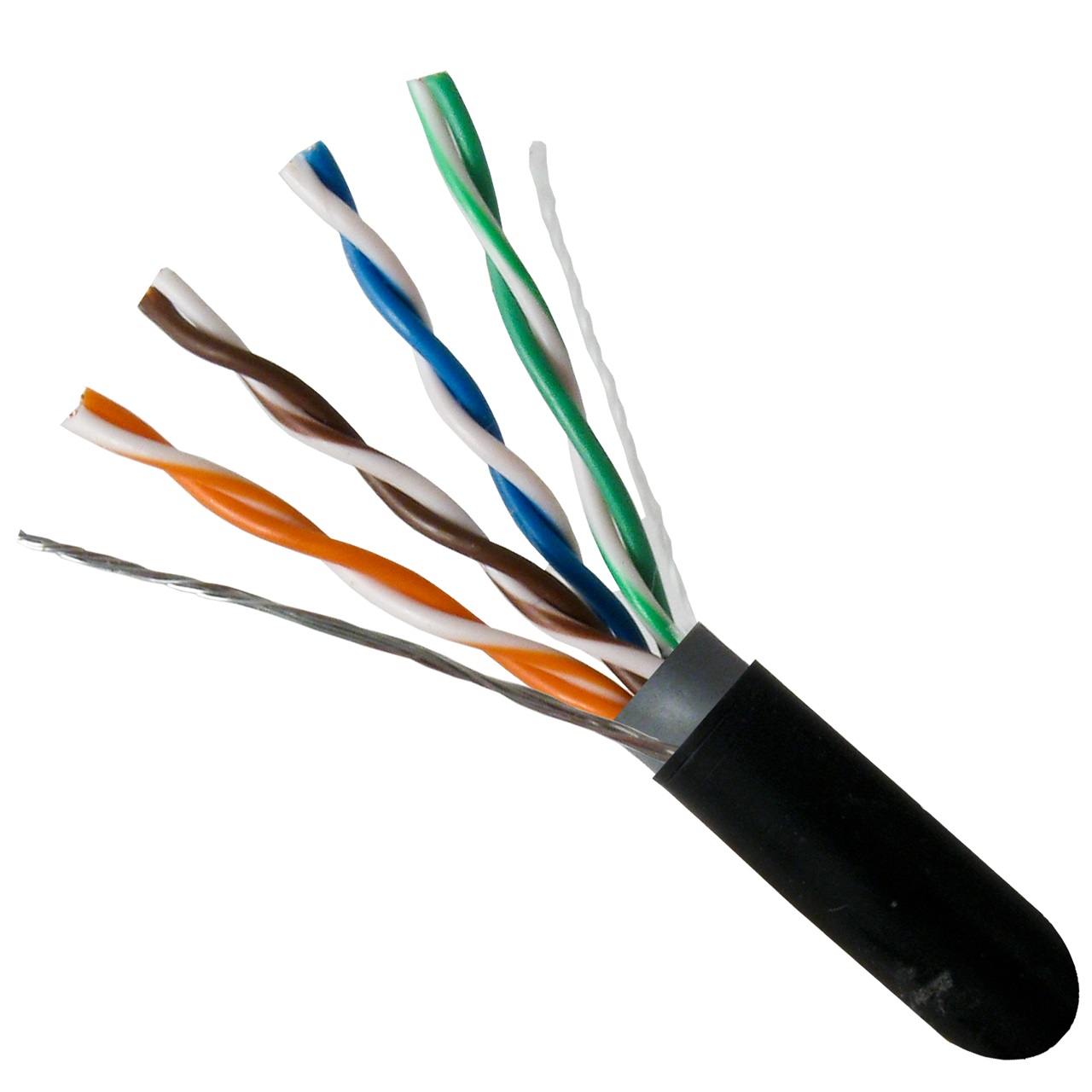

059-486/CMXT Vertical Cable 059-486 Series 24 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMXT Non-Plenum Cat5e Cable 1000' Pull Box - Black

059-486/CMXT

This high-performance Category-5E data cable features a 350MHz bandwidth, foil shielding, and 24AWG solid bare copper conductors. It supports PoE (Type 1, IEEE 802.3af) and meets ANSI/TIA- 568.2-D, ISO/IEC 11801 Standards. Designed for durability, it is waterproof, UV rated, and suitable for direct burial.

Features

• High-Performance Data Cable: Specifically designed to handle high-frequency data transmissions, this cable guarantees stable connectivity for various applications
• 350MHz Bandwidth for Data Applications: With robust bandwidth capacity, the 059-486/CMXT is well-suited for environments demanding high-speed data transfer, compatible with a wide range of frequencies and technologies
• Category-5E F/UTP Overall Foil Shield: The Category-5E design minimizes interference, while the F/UTP shielding provides enhanced protection against external noise, ensuring reliable communications
• Easily Identified Color-Striped Pairs: The innovative color-stripe design facilitates easy identification of pairs, simplifying the installation process and ensuring a hassle-free experience
• 24AWG Solid Bare Copper Conductors: Featuring high-quality solid bare copper conductors, the 059-486/CMXT achieves superior conductivity and boosts overall performance
• Exceeds ANSI/TIA- 568.2-D, ISO/IEC 11801 Standards: This cable surpasses established standards for performance and quality, ensuring reliable data transmission
• Supports PoE (Type 1) IEEE 802.3af (12.95W): The 059-486/CMXT supports Power over Ethernet (PoE), making it an excellent choice for powering network devices like IP cameras, VoIP phones, and wireless access points through a single cable
• CAN/CSA -C22.2 No. 214 Certified: This certification affirms the cable’s safety and performance, providing peace of mind
• Direct Burial, Dual Jacket (Waterproof), UV Rated: The 059-486/CMXT is engineered for indoor and outdoor use, featuring a dual jacket design that is waterproof and UV-rated, ensuring long-lasting durability in various environments
• ETL Listed, RoHS Compliant: These certifications confirm the cable’s safety, environmental compliance, and adherence to high-quality standards
• 1000ft Pull Box or Spool: Available in a convenient 1000ft pull box or spool, the 059-486/CMXT is optimized for efficient installation, allowing for cutting the cable to your desired lengths
