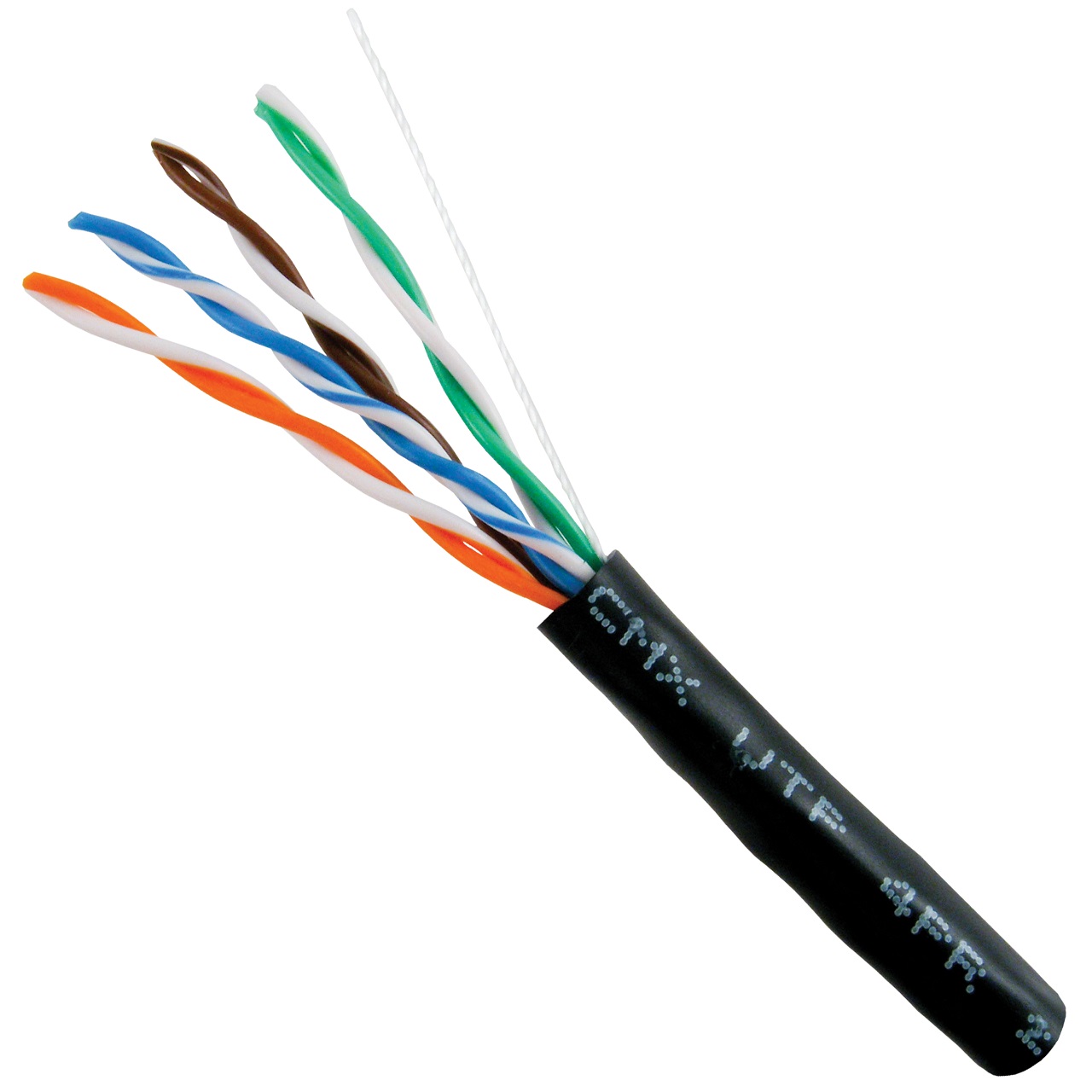

059-484/CMX Vertical Cable 059-484 Series 24 AWG 4 Unshielded Twisted Pair Solid Bare Copper CMX Non-Plenum Cat5e Cable - 1000' Pull Box - Black

Specifications

• Part Number - 059-484/CMX

Transmission Performance

• Meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 specifications

Construction

• Pairs - 4
• Conductors - 8
• Rip Cord - 1
• Screen - Unscreened (UTP)

Conductors

• Material - Solid Bare Annealed Copper
• Size - 24 AWG

Insulation

• Material - PE
• Diameter - 0.04 in. (0.91 mm)
• Average thickness - 0.0078 in (0.20 mm)
• Min. point thickness - 0.0074 in. (0.19 mm)
• Color coding - Pair 1: White-Blue/Blue, Pair 2: White-Orange/Orange, Pair 3: White-Green/Green, Pair 4: White-Brown/Brown

Jacket

• Material - Linear Low-Density Polyethylene (LLDP)
• Outdoor rating - UV-resistant
• Outer diameter - 0.20 in. (5.10 mm)
• Average thickness - 0.0236 in. (0.60 mm)
• Min. point thickness - 0.0212 in. (0.54 mm)
• Marking - VERTICAL 4001453 cETLus VERIFIED CMX UTP 4PR 24 AWG OUTDOOR UV CAT5E 350MHz ANSI/TIA-568.2-D RoHS V1379P13558 XXXXFT

Electrical

• Voltage rating - 60 VRMS

Mechanical

• Before Tensile Strength (Mpa) - ≥13.8 MPa
• Elongation After Aging (%) - ≥100
• Aging Conditions (º C × h): - 100x168
• Tensile Strength After Aging (Mpa) - ≥85% of unaged
• Elongation After Aging (%) - ≥50% of unaged
• Cold Bend (-40±2º Cx4hrs) - No Crack

Safety

• FPA 70 (NEC®) fire rating - CMX

Environmental

• Operating temperature - -40 °F–167 °F (-40 °C–75 °C)

Weight

• 059-484/CMX - 20 lb.

059-484/CMX Specifications PDF
