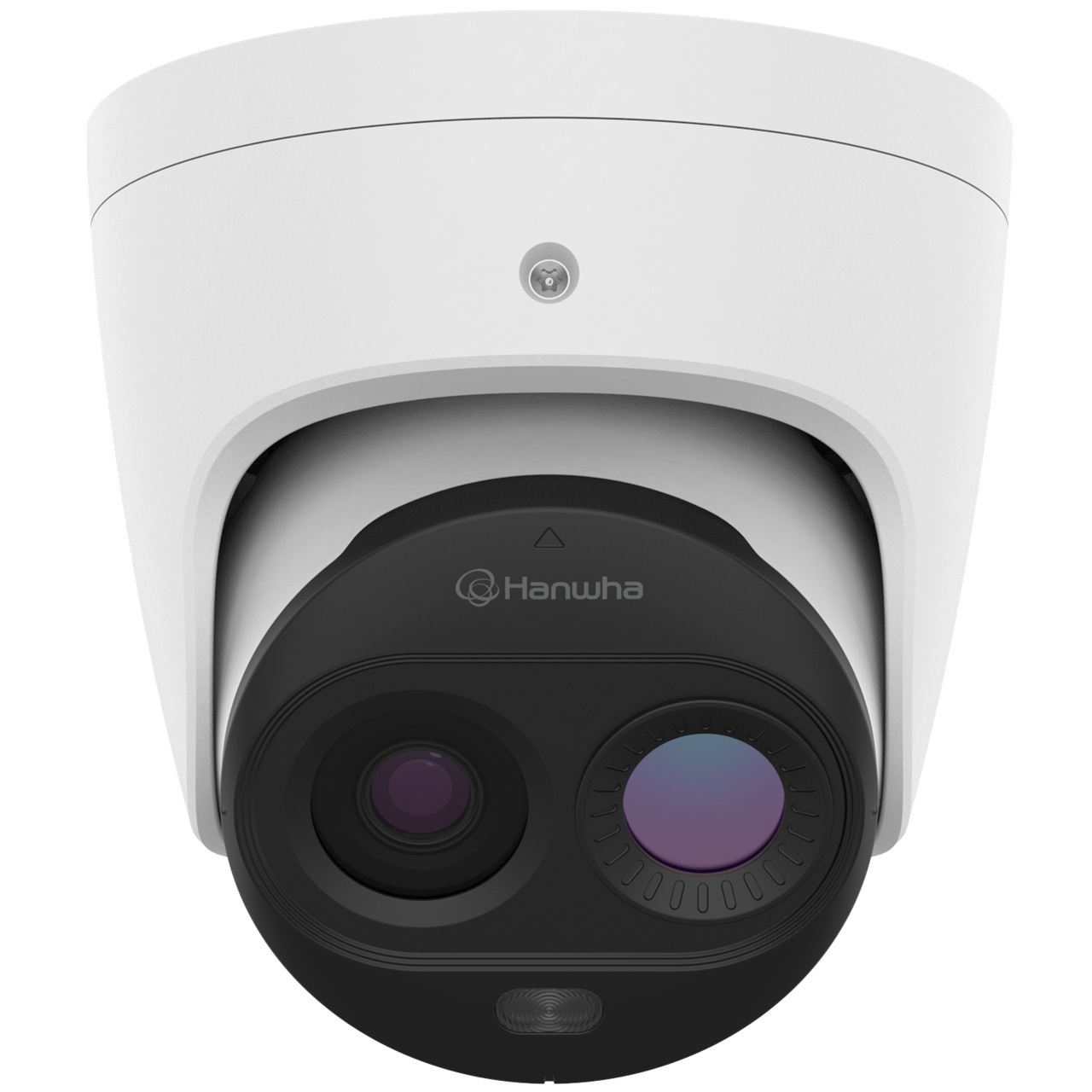

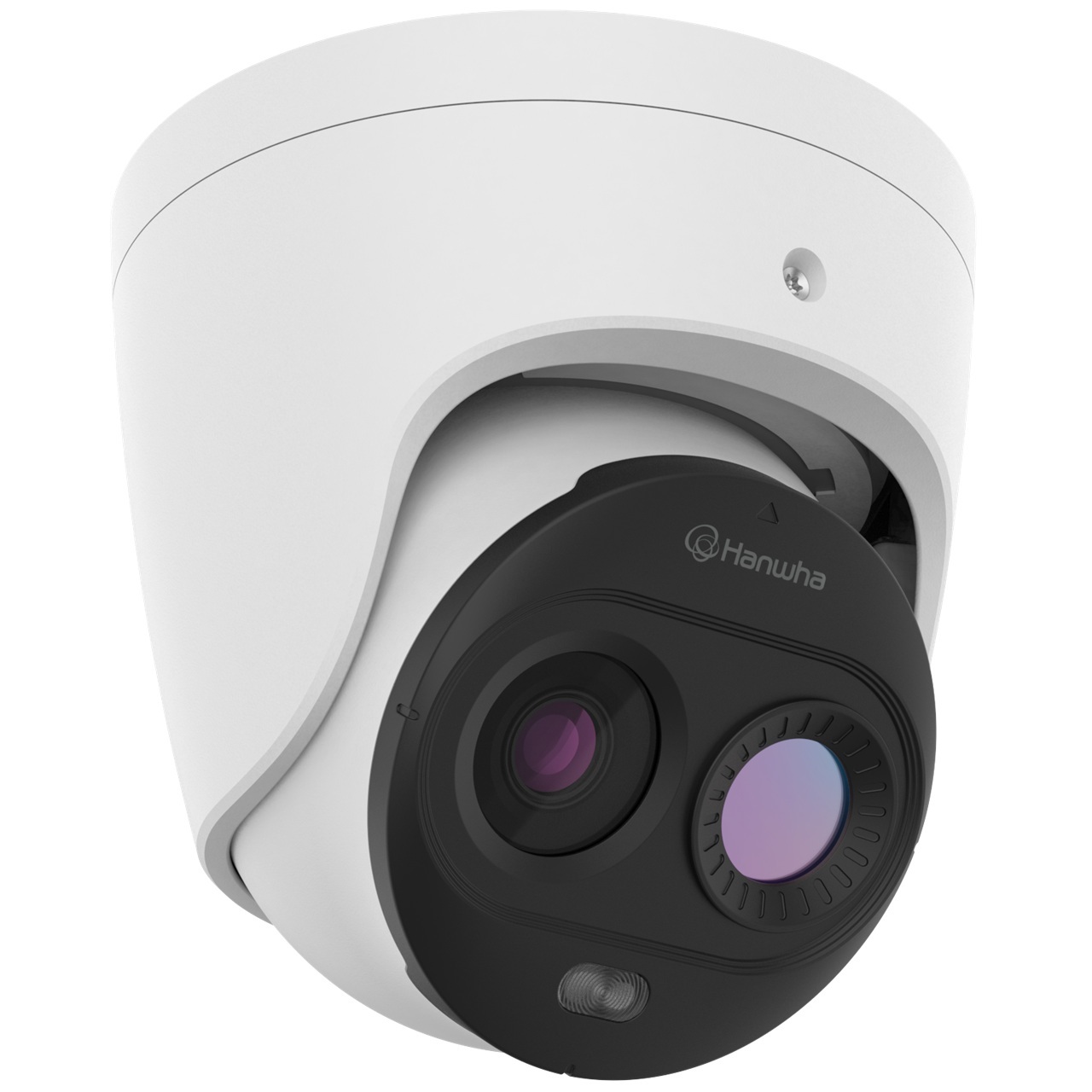

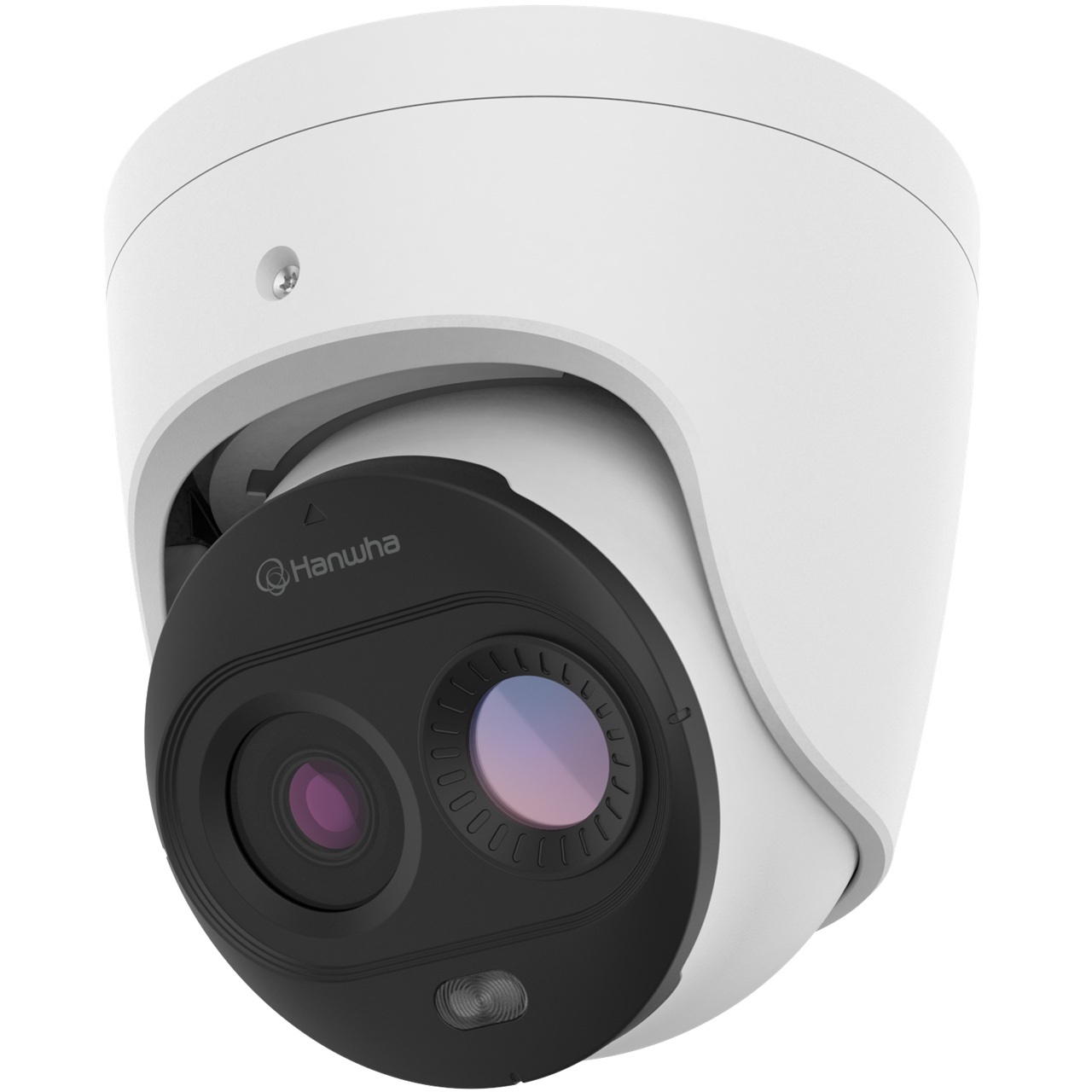

TNM-C2722TDR Hanwha Vision T Series 4.46-1.9mm 30FPS @ 3MP Indoor/Outdoor Day/Night WDR Fire Detection Bi-spectrum Thermal Network IP Security Camera PoE

Introduction

Early Fire Detection Cameras Your first line of defense against fire hazards

The Early Fire Detection Bi-spectrum Cameras from Hanwha Vision utilize AI analytics to detect flames in visible images and temperature information from thermal sensors, quickly alerting users to potential fires and hazards.

Specifications

Video

• Imaging Device - 1/2.8" CMOS Uncooled micro bolometer (160x120)
• Resolution - 2048x1536, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 640x480 320x240
• Max. Framerate - H.265/H.264: 30fps/25fps(60Hz/50Hz) Max. 8fps MJPEG: Max. 5fps, 5FPS
• Spectral Range - 8~14㎛
• NETD - ≤50mK
• Pixel Size - 12㎛
• Video Out - Color(1/30sec,30IRE) 0.06, BW(1/30sec, 30IRE) 0.06

Lens

• Focal Length (Zoom Ratio) - 4.46-1.9
• Max. Aperture Ratio - Wide F1.65 F1.1
• Angular Field of View - H: 69-57, V: 50.8-44, D: 88.9-71
• Min. Object Distance - 1.9m(6.2ft) 0.3m(0.98ft)
• Focus Control - Fixed

Pan / Tilt / Rotate

• Pan / Tilt / Rotate Range - 0°~360° / 0°~70° / 0°~360°

Operational

• Day & Night - AIuto (ICR)
• Backlight Compensatione - BLC, WDR, SSDR
• Wide Dynamic Range - (120dB)
• Digital Noise Reduction - SSNRV
• Motion Detection - 8ea, 8point polygonal zones
• Privacy Masking - 6ea, Rectangular zones - Color: Gray/Black/White
• Gain Control - LOW/ MID/ HIGH
• White Balance - ATW / AWC / Manual / Indoor / Outdoor
• LDC - Support
• Electronic Shutter Speed - Minimum / Maximum / Anti Speed Range (1/5~1/12,000sec)
• Video Rotation - Flip, Mirror
• Alarm Interface In/Out - Input 1ea, Output 1ea
• Alarm Triggers - Analytics, Network disconnect Alarm input, MQTT subscription
• Alarm Events - When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP), Audio clip playback MQTT subscription, Light alarm
• Audio In - Selectable(mic in/line in)
• Audio Out - Line out
• Color Pallettes - Whitehot, Sepia, Red, Custom

Radiometry

• Temperature Detect Range - -10°C~450°C
• Temperature Accuracy - Greater of ±10°C or 10%
• Temperature Detection - 2ea Rectangle
• Spot Temperature Reading - Support
• ROI Condition Monitoring - Above, Below, Increase, Decrease

Security

• OS / Firmware Protect - Encrypted firmware, Secure boot, Signed firmware
• User authentication - Digest Authenticaton Prevent brute-force attack
• Network authentication - IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
• Secure Communication - HTTPS, WSS(Websocket secure), SRTP
• Access Control - IP-based access control
• Data Protect - Encryption credentials
• Audit - Access/System/Event Log management
• Device ID - Device Certificate(Hanwha Vision Root CA,)
• Secure Storage - SDcard partition encrypt (AES-256)

General

• Edge Storage - Micro SD/SDHC/SDXC 1slots 512GB
• Memory - 2GB RAM, 512MB Flash

Environmental & Electrical

• Operating Temperature / Humidity - -30°C~+55°C(-22°F~+131°F) 0~95% RH(non-condensing) Start up should be done at above -10°C
• Storage Temperature / Humidity - -40°C~+60°C(-40°F~+140°F) 0~95% RH(non-condensing)
• Input Voltage - PoE(IEEE802.3af, Class3)
• Power Consumption - PoE Max 10.8W, typical 6.2W

Mechanical

• Color / Material - White / Aluminum
• RAL Code - RAL9003
• Product Dimensions / Weight - Ø110x97mm(ø4.33x3.82")/650g(1.43lb)
• Compatible Gang Box - Single

Certifications & Standards

• EMC - FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A, KS C 9835
• Safety - UL/CSA 62368-1 CAN/CSA C22.2 NO. 62368-1, IEC 62471
• Environment - IEC/EN 63000, IEC 60529 IP66, IEC60529 IP67, IEC 62262 IK09

DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF) - Wide: 70.9m(232.6ft)
• Observe (63PPM/ 19PPF) - Wide: 28.4m(93.1ft)
• Recognize (125PPM/ 38PPF) - Wide: 14.2m(46.5ft)
• Identify (250PPM/ 76PPF) - Wide: 7.1m(23.2ft)

Thermal Detection Range

• Temperature Detection - 15m(49.21ft)
• Early Fire Detection - 15m(49.21ft)
