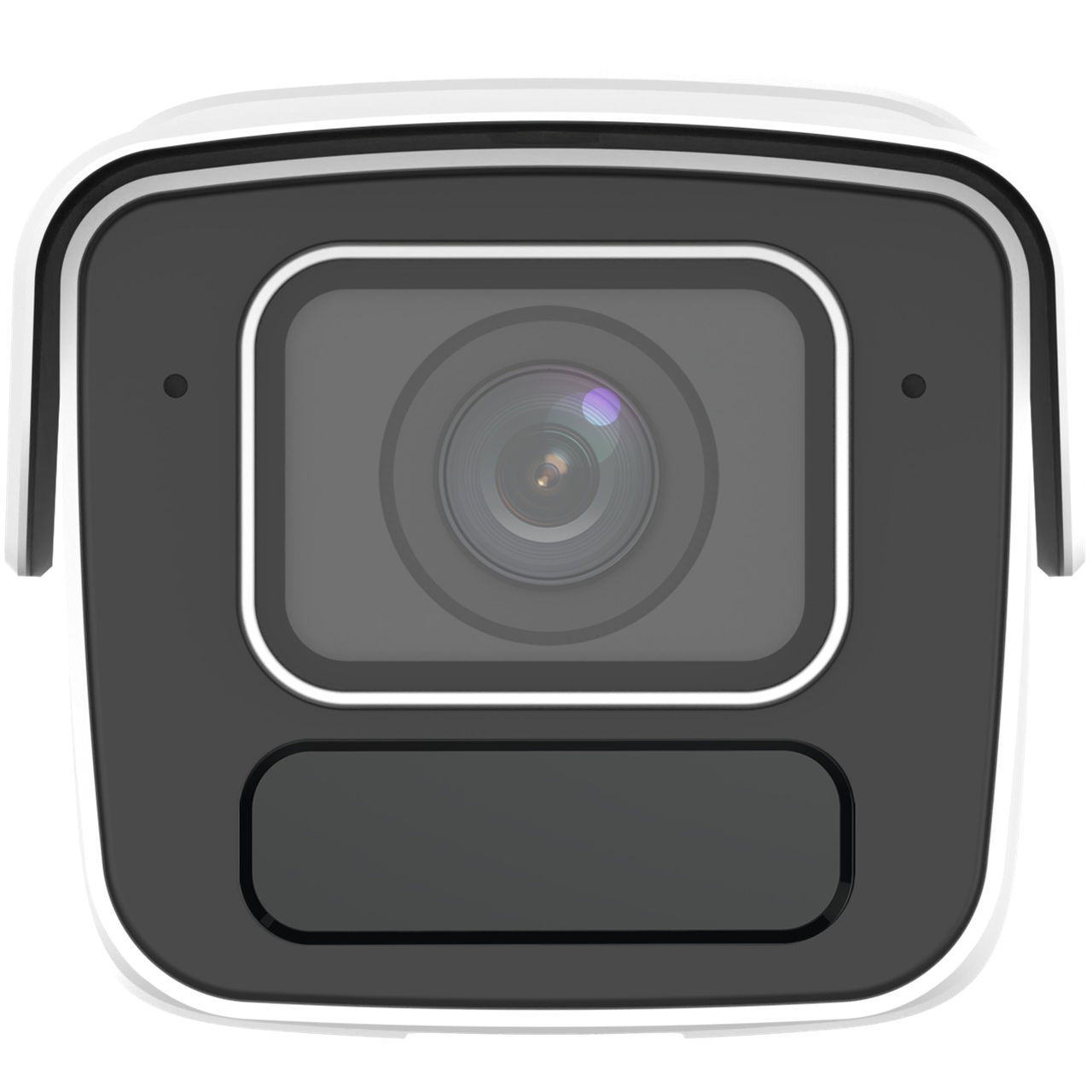

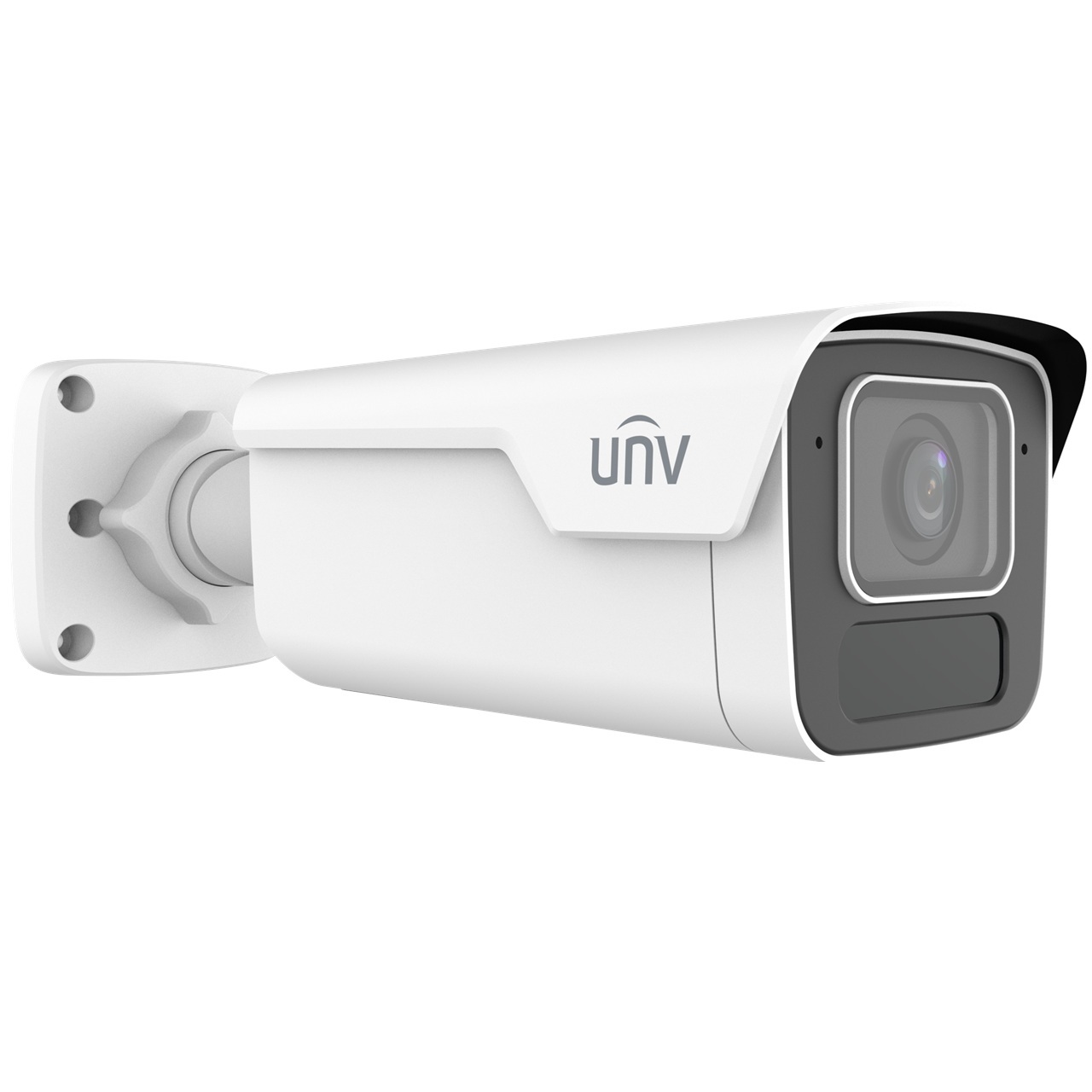

IPC2B28SA-ADZK-PI-I2A Uniview Prime IV Series 2.7-13.5mm Motorized 30FPS @ 8MP Outdoor IR Day/Night WDR Bullet IP Security Camera 12VDC/PoE

Specifications

Camera

• Max Resolution - 8 MP
• Sensor - 1/1.8" CMOS
• Min. Illumination - Color: 0.001 Lux (F1.2, AGC ON), 0 Lux with IR
• Day/Night - IR-cut filter with auto switch (ICR)
• Shutter - Auto/Manual, 1 to 1/100000 s
• S/N - >56 dB
• WDR - 130dB

Lens

• Focal Length - 2.7 to 13.5 mm
• Optical Zoom - 5X
• Iris - F1.2
• Field of View (H) - 104.7° to 49.1°
• Field of View (V) - 56.4° to 27.9°
• Field of View (D) - 128.8° to 60.4°
• Iris Type - P-iris

Dori

• DORI Distance (Lens) - 2.7 to 13.5 mm
• DORI Distance (Detect) - 98.6 m to 209.9 m (323.3 ft. to 688.7 ft.)
• DORI Distance (Observe) - 39.4 m to 84.0 m (129.3 ft. to 275.5 ft.)
• DORI Distance (Recognize) - 19.7 m to 42.0 m (64.7 ft. to 137.7 ft.)
• DORI Distance (Identify) - 9.9 m to 21.0 m (32.3 ft. to 68.9 ft.)

Video

• Video Compression - Ultra 265, H.265, H.264, MJPEG
• Video Bit Rate - 128 Kbps to 16 Mbps
• U-code - Support
• ROI - Up to 8 areas
• Video Stream - Five streams
• Privacy Mask - Up to 8 areas (8 blacks/ 8 mosaics)
• OSD - Up to 8 OSDs
• Frame Rate-Main Stream - 30 fps @ 8 MP (3840 × 2160)
• Frame Rate-Sub Stream - 30 fps @ 1080P (1920 × 1080)
• Frame Rate-Third Stream - 30 fps @ D1 (720 × 576)

Intelligent

• Exception Detection - Object removed, Object Left Behind, Scene change, Defocus detection
• Smart Intrusion Prevention - Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
• People Counting - Support people flow counting and crowd density monitoring
• Traffic Monitoring - Support capturing car license picture and collect other car information when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole


• White Balance - Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2, Area white balance
• EIS - Support
• Digital Noise Reduction - 2D/3D DNR
• Flip - Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
• Defog - Digital Defog

Events

• Basic Detection - Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
• General Function - Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
• UMD (Ultra Motion Detection) - Support

Audio

• Audio Compression - G.711U, G.711A
• Audio Bitrate - 128 Kbps
• Two-way Audio - Support
• Suppression - Support
• Sampling Rate - 8 kHz, 16khz

Storage

• Edge Storage - Micro SD, up to 512 GB
• Network Storage - ANR, NAS (NFS)

Network

• Protocols - IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP
• Compatible Integration - ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
• User/Host - Up to 32 users. 3 user levels: administrator, common user and operator
• Security - TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
• Client - UNV-Link, UNV-Link Pro, EZStation
• Web Browser - Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Illuminator

• Illumination Distance (IR) - 80 m (262.5 ft.)
• IR On/Off Control - Auto/Manual
• Wavelength - 850 nm

Interface

• Audio I/O - 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
• Alarm I/O - 1/1
• Built-in Mic - Built-in dual-mic
• Serial Port - 1 × RS485
• Network - 1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

• EMC - CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC-SDoC (47 CFR Part15, Subpart B)
• Safety - CE-LVD (EN IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
• Environment - CE-RoHS (2011/65/EU;(EU)2015/863) WEEE (2012/19/EU)
• Protection - IP67 (IEC 60529), IK10 (IEC 62262)

General

• Power - DC 12V±25%, PoE (IEEE 802.3af)
• Power Consumption - Max 12.5W
• Power Interface - Ø5.5 mm coaxial power plug
• Dimensions - 268 mm × 96 mm × 82 mm (10.5" × 3.7" × 3.2") (L × W × H)
• Weight - 1 kg (2.2 lb.)
• Working Environment - -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
• Storage Environment - -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
• Surge Protection - 6 KV

Configurable

• P/N - Support
