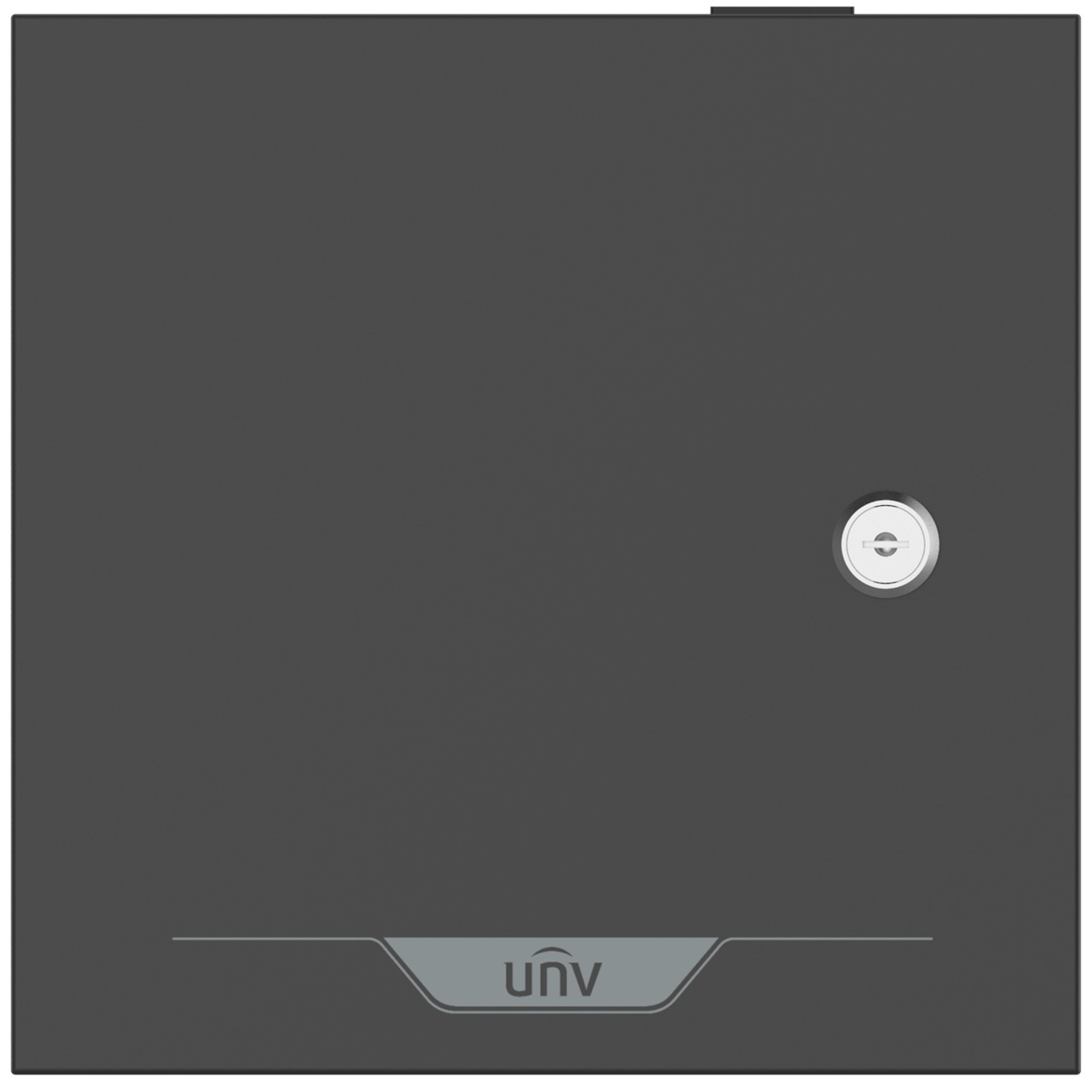

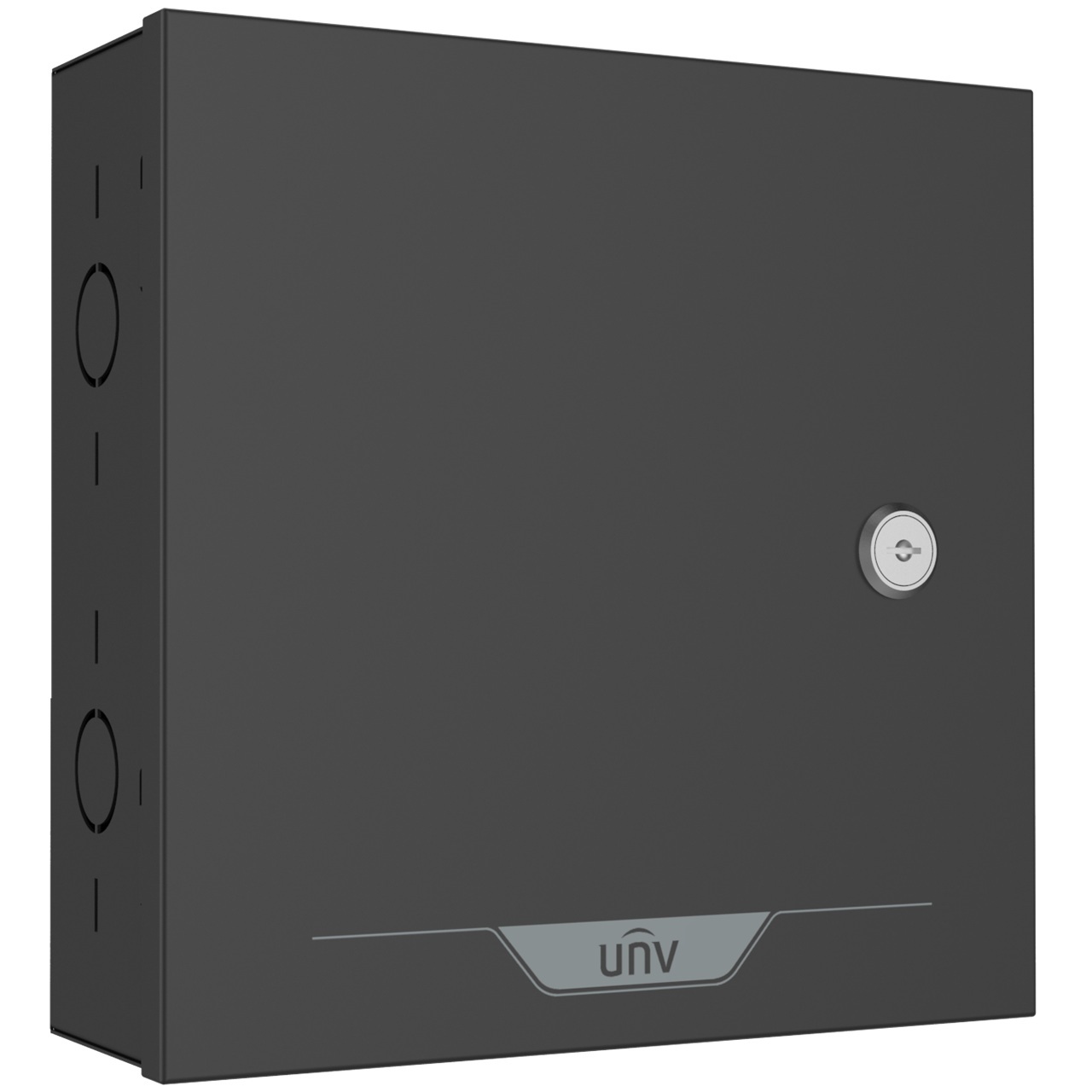

OER-501 Uniview Single Door Access Controller

The single-door access controller features high performance and high eliability. It is designed with TCP/IP wired network communication interface and features specialized access control management functions, suitable for various complex access control scenarios.

Specifications

Specification Index

• Card Capacity - Common card + personnel password: 22,000, Duress card + duress password: 1,000 Other cards: 100
• Event Capacity - 50,000
• Time Template - 256
• Holiday Template - 256
• Check Template - Supports up to 16 check templates configured by weekly schedule, up to 8 time periods per day, and up to 3 authentication modes per time period

Basic Business

• Communication Mode - TCP/IP

Hardware Specification

• Network Interface - 1 x 100Mbps Ethernet interface
• Number Of Controllable Door - 1
• Wiegand Interface - 2 x Wiegand input
• RS485 Interface - 1
• IO Input - 1 x fire input, 4 x case input
• IO Output - 2
• Power Output - 1 x DC12V (maximum current for door lock: 5A, for card reader: 1.5A)
• Door Lock Interface - 1 x door lock control (NC+/NO+/COM) 1 x door magnet, 1 x exit button
• Tamper Button - Not support
• Application - Indoor
• Operating Temperature - -30°C to 65°C
• Rated Input Voltage - AC100V to AC240V (50/60Hz)
• Spare Power Supply - DC12V/7AH, user-prepared
• Mount Method - Wall mount
• Indicator
  • Power indicator: - Steady red when the device is connected to power
  • Operation indicator: - Blinks green when the operation is normal
  • Door lock indicator: - Steady green when the lock is open
  • Fault indicator
  • 485 indicator
  • Charging indicator
  • Network indicator
• Dimensions (L x W x H) - 230mmx227.8mmx75.8mm
• Weight - 2100g

Compliance

• NDAA Compliant - Support
