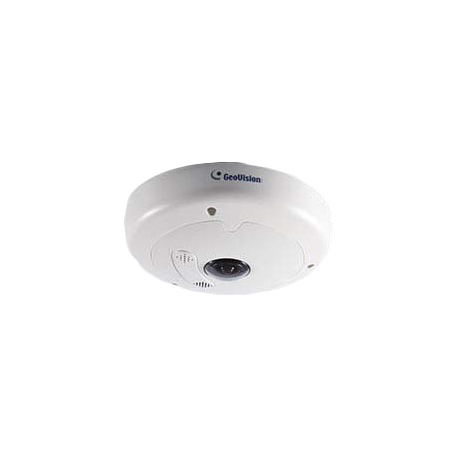

[DISCONTINUED] GV-FE3402 Geovision 1.19mm 15FPS @ 2048x1536 Indoor Day/Night Fisheye Panoramic IP Security Camera 12VDC/24VAC/POE

Specifications

System Requirements

• OS - 32‐bit Windows XP / Vista / 7 / Server 2008, 64‐bit Windows 7 / Server 2008
• GV‐System Version - GV‐System V8.5.9.0 with patch or later
• Browser - Internet Explorer 7.x or later, Firefox, Google Chrome, Safari

Camera

• Image Sensor - 1/3.2 progressive scan CMOS
• Picture Elements - 2048 (H) x 1536 (V)
• Minimum Illumination - Color 0.08 Lux, B/W 0.05 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/8000 sec.)
• White Balance - Automatic, Manual (2800K ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 47 dB
• WDR - Yes

Optics Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Fixed
• Focal Length - 1.19 mm
• Maximum Aperture - F/2.0
• Mount - M12, Pitch 0.5 mm
• Image Format - 4.1 mm (Image Circle)
• Horizontal FOV - 180
• Operation - Focus Fixed, Zoom Fixed, Iris Fixed

Operation

• Video Compression - H.264, MJPEG
• Video Streaming - Single stream from H.264 or MJPEG
• Frame Rate - 15 fps at 2048 x 1536, 1440 x 1376, 1280 x 1200 *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, D/N, Backlight Compensation, WDR, Defog
• Audio Compression - G.711, AAC (optional)
• Audio Support - Two‐Way Audio

Video Resolution

• Main Stream - 2048 x 1536, 1440 x 1376, 1280 x 1200

Network

• Interface - 10/100 Ethernet
• Protocol - FTP, DHCP, DynDNS, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SMTP, SNMP, TCP, UDP, UPnP

Mechanical

• Temperature Detector - Yes
• Power - 2‐pin terminal block, PoE
• Ethernet - Ethernet (10/100 Base‐T), RJ‐45 Connector
• Audio - 1 In (built‐in microphone), 1 Out (built‐in speaker or Stereo phone jack, 3.5 mm / 0.14")
• Digital I/O - None
• Auto Iris - None
• Local Storage - Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) * SDXC and UHS‐I card types are not supported.
• TV‐Out - None
• Mini USB - GV‐WiFi Adapter or USB hard drive

General

• Operating Temperature - 0C ~ 50C (32F ~ 122F)
• Humidity - 10% to 90% (no condensation)
• Power Source - 12V DC / 24V AC / PoE (IEEE802.3af)
• Max. Power Consumption - 8.6W

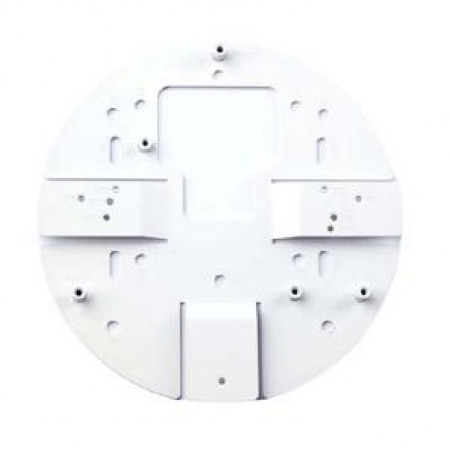

• Hard‐Ceiling Mount Dimensions - 160.25 x 48.36 mm (6.31 x 1.93)
• In‐Ceiling Mount Dimensions - 166.48 x 48.36 mm (6.55 x 1.93)
• Weight - 410 g (0.9 lb)
• Vandal Resistance - IK10+ for metal casing
• Regulatory - CE, FCC, RCM, RoHS compliant

Power over Ethernet

• PoE Standard - IEEE 802.3af Power over Ethernet / PD
• PoE Power Supply Type - End‐Span
• PoE Power Output - Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Motion Detection, Privacy Mask, Visual Automation, Tampering Alarm, Auto Pan Function, Virtual PTZ, Wide Angle Lens Dewarping, Text Overlay
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Network Storage - GV‐NVR, GV‐System, GV‐Backup Center, GV‐Recording Server
• Live Viewing - IE , GV‐Multi View
• CMS Server Support - GV‐Control Center, GV‐Center V2, GV‐VSM

GV-FE3402 Specifications PDF
