[DISCONTINUED] 88-SN8FE3-ADR Geovision GV-SNVR0811 8 Channel NVR Kit 80Mbps Max Throughput w/ Built-in 8 Port PoE Switch - 2TB w/ 1 x 3MP Indoor Fisheye and 4 x 1.3MP Outdoor Dome IP Security Cameras

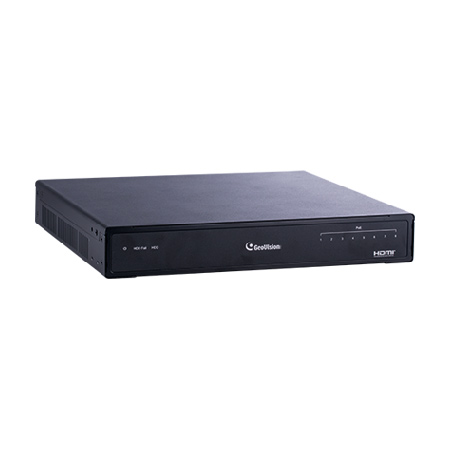

88-SNVR811-2TB NVR Specifications

System

• OS - Embedded Linux
• No. of Drive Bay - 1 (3.5" HDD)
• Power Source - Input: AC 100 ~ 230V, 50 ~ 60 Hz   Output: DC 56V, 2.32A, Max. 130W, PoE: Max. 100W
• Connectors
• Megabit Ethernet - 1 port for WAN, RJ‐45 10/100 Mbps, 8 ports for LAN, RJ‐45 10/100 Mbps, PoE (IEEE 802.3af)
• Video Output - HDMI
• Audio - N/A
• USB 2.0 - Front: 1 port, Rear: 3 ports
• LED Indicator - 3 LEDs: Power, HDD Error, HDD Status
• PoE - 8 LEDs for each port
• Operating Temperature - 32°F ~ 122°F
• Humidity - 0% ~ 80% RH (non‐condensing)
• Dimensions (L x W x H) - 11.02 x 10.43 x 1.73"
• Net Weight - 3.52 lb
• Regulatory - FCC , CE , RoHS compliant

Video and Audio

• Video Compression - H.264, H.265
• Video Stream - Dual streams from H.264, H265
• Video Output - 4K / 1080p (HDMI)
• Display Division - 1 / 4 / 9
• Audio Compression - G.711
• Audio Support - Yes
• Two‐Way Audio - N/A

Supported Video Resolution

• Firmware Version - Main Stream: V2.40, Sub Stream: V2.40
• 4:3 - Main Stream: 2592 x 1944, 2560 x 2048, 2560 x 1920, 2048 x 1536, 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240, Sub Stream: 1024 x 768, 960 x 720, 640 x 480, 320 x 240, 640 x 480, 320 x 240, 320 x 240
• 16 : 9 (Default) - 3840 x 2160, 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252, Sub Stream: 1280 x 720, 640 x 360, 448 x 252
• 5:4 - Main Stream: 1280 x 1024, 640 x 512, 320 x 256, Sub Stream: 1280 x 1024, 640 x 512, 320 x 256, 640 x 512, 320 x 256, 320 x 256
• 20 : 19    (Fisheye Camera Only) - Main Stream: 2176 x 2048, 2048 x 1944, 1792 x 1696, 1440 x 1376, 1280 x 1200, Sub Stream: 640 x 608

Operation

• Recording Bandwidth - Max. 80 Mbps for 8 channels
• Recording Mode - Round the clock / Motion Detection / Schedule Recording
• Pre Recording - 1 ~ 10 sec.
• Post Recording - 30 sec
• Instant Playback - 3 min.
• Backup Type - USB storage device of FAT32 format

Management

• Language - Czech / English / French / German / Hungarian / Italian / Japanese / Portuguese / Russian / Slovakian / Slovenian / Spanish / Traditional Chinese
• Firmware upgrade - Upgrade through OSD or GV‐IP Device Utility

Network

• Network Type - LAN, WAN, Internet
• Protocol - DHCP, DynDNS, HTTP, NTP, ONVIF, RTSP, TCP, UDP

System Monitoring and Recovery

• Power Restoration - Automatic restart after power outage
• Monitoring - Software Watchdog

Remote Viewing

• Live View - Max. 18 channels connection
• Monitoring Environment - Brower (IE, Chrome, Firefox, Safari, Edge), Mobile app
• Smart Device Access - GV‐Eye for iOS and Android
• Access from Web Browser - Live View, Image Snapshot, Picture in Picture, Picture and Picture, Digital PTZ

UVS-ADR1300 Outdoor Dome IP Security Camera Specifications

Camera

• Image Sensor - 1/3" progressive scan low lux CMOS
• Picture Elements - 1280 (H) x 960 (V)
• Minimum Illumination
  • Color - 0.02 Lux
  • B/W - 0.02 Lux
  • IR ON - 0 Lux
• Shutter Speed - Auto / Manual (1/6 ~ 1/8000 sec)
• White Balance - Auto / Manual
• Gain Control - Auto / Manual
• S/N Ratio - 50 dB
• WDR - Yes
• Dynamic Range - 72 dB

Optical Lens

• Megapixel - Yes
• Day / Night - Yes (with removable IR-cut filter)
• Lens Type - Fixed
• Focal Length - 2.8 mm
• Maximum Aperture - F/2.0
• Mount - M12
• Horizontal FOV - 96.5°

Operation

• Focus - Fixed
• Zoom - Fixed
• Iris - Fixed
• IR LED Quantity - 30 IR LED
• Max. IR Distance - 30 m (98.4 ft)

Video

• Video Compression - H.264, MJPEG
• Video Streaming - Triple streams from H.264 or MJPEG
• Video Resolution
  • Main Stream - 1280 x 960, 1280 x 720 (Default), 720 x 576
  • Sub Stream - 1280 x 960, 1280 x 720, 720 x 576 (Default), 352 x 288, 704 x 288
  • Third Stream (Closed by Default) - 720 x 576, 352 x 288, 704 x 288
• Frame Rate - 30 fps at 1280 x 960 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes)

Network

• Interface - 10/100 Ethernet
• Protocol - DHCP, DNS, FTP, HTTP, ICMP, IGMP , IPv4, IPv6, NTP, ONVIF (Profile S), QoS, RTP, RTSP, TCP, UDP

Mechanical

• Temperature Detector - No
• Connectors
  • Power - DC Jack, PoE
  • Ethernet - RJ-45 connector
  • Local Storage - Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) *UHS‐II card type is not supported
• Camera Angle Adjustment
  • Pan - 3° ~ 360°
  • Tile - 0° ~ 68°
  • Pan - 3° ~360°

General

• Operating Temperature - -35°C ~ 60°C (-31°F ~ 140°F)
• Humidity - 0% ~ 95% (non-condensing)
• Dimensions - 157.3 x 62.4 x 63 mm (6.2" x 2.5" x 2.5")
• Weight - 0.45 kg (0.99 lb)
• Power Source - 12 VDC / PoE (IEEE802.3af)
• Max. Power Consumption - 5.5 W
• Ingress Protection - IP66
• Regulatory - FCC, IC, CE, WEEE, RoHS compliant

Web Interface

• Installation Management - Web-based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Text Overlay, Image Masking
• Language - English

Applications

• Software Supported - GV-DVR / NVR (V8.7.1.0), GV-VMS (V15.11.1.0), GV-Control Center (V3.4.0.0), GV-Recording Server (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0)
• Live Viewing - Browser (IE, Firefox, Safari)

GV-FE3402 Indoor Fisheye IP Security Camera Specifications

System Requirements

• OS - 32‐bit Windows XP / Vista / 7 / Server 2008, 64‐bit Windows 7 / Server 2008
• GV‐System Version - GV‐System V8.5.9.0 with patch or later
• Browser - Internet Explorer 7.x or later, Firefox, Google Chrome, Safari

Camera

• Image Sensor - 1/3.2 progressive scan CMOS
• Picture Elements - 2048 (H) x 1536 (V)
• Minimum Illumination - Color 0.08 Lux, B/W 0.05 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/8000 sec.)
• White Balance - Automatic, Manual (2800K ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 47 dB
• WDR - Yes

Optics Lens

• Megapixel - Yes
• Day/Night - Yes (with removable IR‐cut filter)
• Lens Type - Fixed
• Focal Length - 1.19 mm
• Maximum Aperture - F/2.0
• Mount - M12, Pitch 0.5 mm
• Image Format - 4.1 mm (Image Circle)
• Horizontal FOV - 180
• Operation - Focus Fixed, Zoom Fixed, Iris Fixed

Operation

• Video Compression - H.264, MJPEG
• Video Streaming - Single stream from H.264 or MJPEG
• Frame Rate - 15 fps at 2048 x 1536, 1440 x 1376, 1280 x 1200 *The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes)
• Image Setting - Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Shutter Speed, D/N, Backlight Compensation, WDR, Defog
• Audio Compression - G.711, AAC (optional)
• Audio Support - Two‐Way Audio

Video Resolution

• Main Stream - 2048 x 1536, 1440 x 1376, 1280 x 1200

Network

• Interface - 10/100 Ethernet
• Protocol - FTP, DHCP, DynDNS, HTTP, HTTPS, NTP, ONVIF (Profile S), PSIA, QoS (DSCP), RTSP, SMTP, SNMP, TCP, UDP, UPnP

Mechanical

• Temperature Detector - Yes
• Power - 2‐pin terminal block, PoE
• Ethernet - Ethernet (10/100 Base‐T), RJ‐45 Connector
• Audio - 1 In (built‐in microphone), 1 Out (built‐in speaker or Stereo phone jack, 3.5 mm / 0.14")
• Digital I/O - None
• Auto Iris - None
• Local Storage - Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10) * SDXC and UHS‐I card types are not supported.
• TV‐Out - None
• Mini USB - GV‐WiFi Adapter or USB hard drive

General

• Operating Temperature - 0C ~ 50C (32F ~ 122F)
• Humidity - 10% to 90% (no condensation)
• Power Source - 12V DC / 24V AC / PoE (IEEE802.3af)
• Max. Power Consumption - 8.6W
• Hard‐Ceiling Mount Dimensions - 160.25 x 48.36 mm (6.31 x 1.93)
• In‐Ceiling Mount Dimensions - 166.48 x 48.36 mm (6.55 x 1.93)
• Weight - 410 g (0.9 lb)
• Vandal Resistance - IK10+ for metal casing
• Regulatory - CE, FCC, RCM, RoHS compliant

Power over Ethernet

• PoE Standard - IEEE 802.3af Power over Ethernet / PD
• PoE Power Supply Type - End‐Span
• PoE Power Output - Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface

• Installation Management - Web‐based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Motion Detection, Privacy Mask, Visual Automation, Tampering Alarm, Auto Pan Function, Virtual PTZ, Wide Angle Lens Dewarping, Text Overlay
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Network Storage - GV‐NVR, GV‐System, GV‐Backup Center, GV‐Recording Server
• Live Viewing - IE , GV‐Multi View
• CMS Server Support - GV‐Control Center, GV‐Center V2, GV‐VSM
