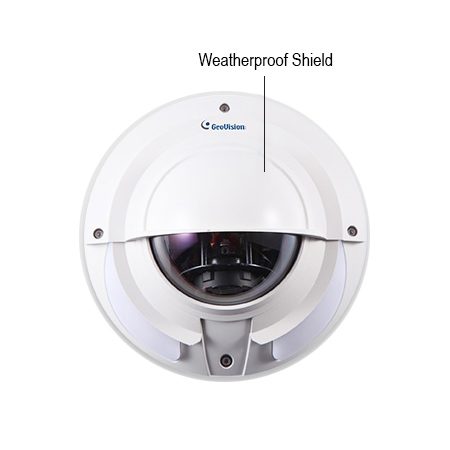

[DISCONTINUED] GV-VD5711 Geovision 4~8mm Motorized 30FPS @ 2592 x 19445 Outdoor IR Day/Night Dome IP Security Camera PoE 12VDC/24VAC/PoE+

Specifications

Camera

• Image Sensor - 1/1.8" progressive scan CMOS
• Picture Elements - 2592 (H) x 1944 (V)
• Minimum Illumination - Color 0.04 Lux, B/W 0.03 Lux, IR ON 0 Lux
• Shutter Speed - Automatic, Manual (1/5 ~ 1/8000 sec.)
• White Balance - Automatic, Manual (2800K ~ 8500K)
• Gain Control - Automatic
• S/N Ratio - 46 dB
• WDR - Yes
• Dynamic Range - 72 dB

Lens

• Megapixel - 5 MP
• Day / Night - Yes (with removable IR-cut filter)
• Lens Type - Motorized Varifocal lens
• Focal Length - 4 ~ 8mm
• Maximum Aperture - F/1.8
• Mount - Ø 14 mm
• Image Format - 1/1.8''
• Horizontal FOV - 90°~ 48°
• Operation - Focus Auto focus, Zoom 2x optical zoom, Iris P-Iris
• High Power IR LED Quantity - 6 IR LEDs
• Max. IR Distance - 30 m (98.4 ft.)

Operation

• Video Compression - H.265, H.264, MJPEG
• Video Stream - Stream 1 H.265 or H.264, Stream 2 H.265, H.264, or MJPEG
• Frame Rate - 50Hz: 20 fps at 2592 x1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520, 60Hz: 20 fps at 2592 x1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520, * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes).
• Image Setting - Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker‐less, Image Orientation, Backlight Compensation, D/N Sensitivity, Shutter Speed, WDR, Defog, Zoom, Focus Change, Denoise, Metering
• Audio Compression - G.711
• Audio Support - Two-way audio
• Sensor Input - 1 Input (dry contact)
• Alarm Output - 1 Output (200 mA 5V DC)

Video Resolution

• Main Stream - 4:3 2592 x 1944 (Default), 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 16:9 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x360, 5:4 1280 x 1024, 640 x 512
• Sub Stream - 4:3 1024 x 768, 640 x 480 (Default), 320 x 240 , 16:9 1280 x 720, 640 x 360, 448 x 256, 5:4 1280 x 1024, 640 x 512, 320 x 256

Network

• Interface - 10/100
• Ethernet - Ethernet Protocol HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, SNMP, QoS (DSCP), ONVIF (Profile S)

Mechanical

• Temperature Detector - Yes
• Camera Angle Adjustment - Pan -90° ~ 90°, Tilt 0° ~ 85°, Rotate 0° ~ 350°
• Connectors - Power 2-pin terminal block, PoE Ethernet Ethernet (10/100 Base-T), RJ-45 cable Audio 1 In (3.5mm phone jack for microphone) 1 Out (3.5mm phone jack for speaker) Digital I/O 3-pin terminal block, pitch 2.5 mm (0.1") Local Storage Micro SD card slot (SD/SDHC/SDXC/UHS‐I, Class 10) *UHS‐II card type is not supported. TV-Out BNC connector (D1 resolution)
• LED Indicator - 2 LEDs: Power, Status

General

• Environment Temperature - -20°C ~ 50°C (-4°F ~ 122°F)
• Humidity - 10% to 90% (no condensation)
• Power Source - 12V DC / 24V AC / PoE+ (IEEE 802.3at)
• Max. Power Consumption - 25.5 W
• Dimensions - Camera Body ø 176.5 x 118 mm (6.9'' x 4.6'')
• Weight - 1.83 kg (4.03 lb)
• Ingress Protection - IP67
• Vandal Resistance - IK10+
• Regulatory - CE, FCC, RCM, RoHS compliant

Power over Ethernet

• PoE Standard - PoE+ (IEEE 802.3at Power over Ethernet / PD)
• PoE Power Supply Type - End-Span and Mid-Span
• PoE Power Output Per Port - 48V DC, 600 mA, Max. 30 watts

Web Interface

• Installation Management - Web-based configuration
• Maintenance - Firmware upgrade through Web Browser or Utility
• Access from Web Browser - Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual automation, Text overlay
• Language - Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

• Software Supported - GV-DVR / NVR (V8.7.1.0), GV-VMS (V15.11.1.0), GV-Edge Recording Manager (V1.2.0.0), GV-Center V2 (V15.10.0.0), GV-Recording Server (V1.3.0.0), GV-Redundant / Failover Server (V1.1.0.0)
• Smart Device Access - GV-Eye for iOS and Android
• Live Viewing - Browser (IE, Chrome, Firefox, Safari), Mobile app
• CMS Server support - GV-Control Center, GV-Center V2, GV-Vital Sign Monitor
